Prod Model: |
SZTP1208-3.5 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
3.5" Inch |
Structure: |
Pet + Film + Film + Glass |
Connector: |
Pin 4 Plug Connector |
Thickness: |
1.4 ± 0.15 mm |
Touch Media: |
Finger, Touch Pen |
Ratio: |
16:9 |
Type: |
4 Wire Restistive Touch Screen |
Resolution: |
4096*4096 |
Aspect Ratio: |
16:9 |
Application: |
Security Monitoring System |
Screen Type: |
Resistive |
Resistive Touch Screen Type: |
Analog |
Screen Size: |
3.5 Inch |
Customized: |
Custom Service Available |
Product Description

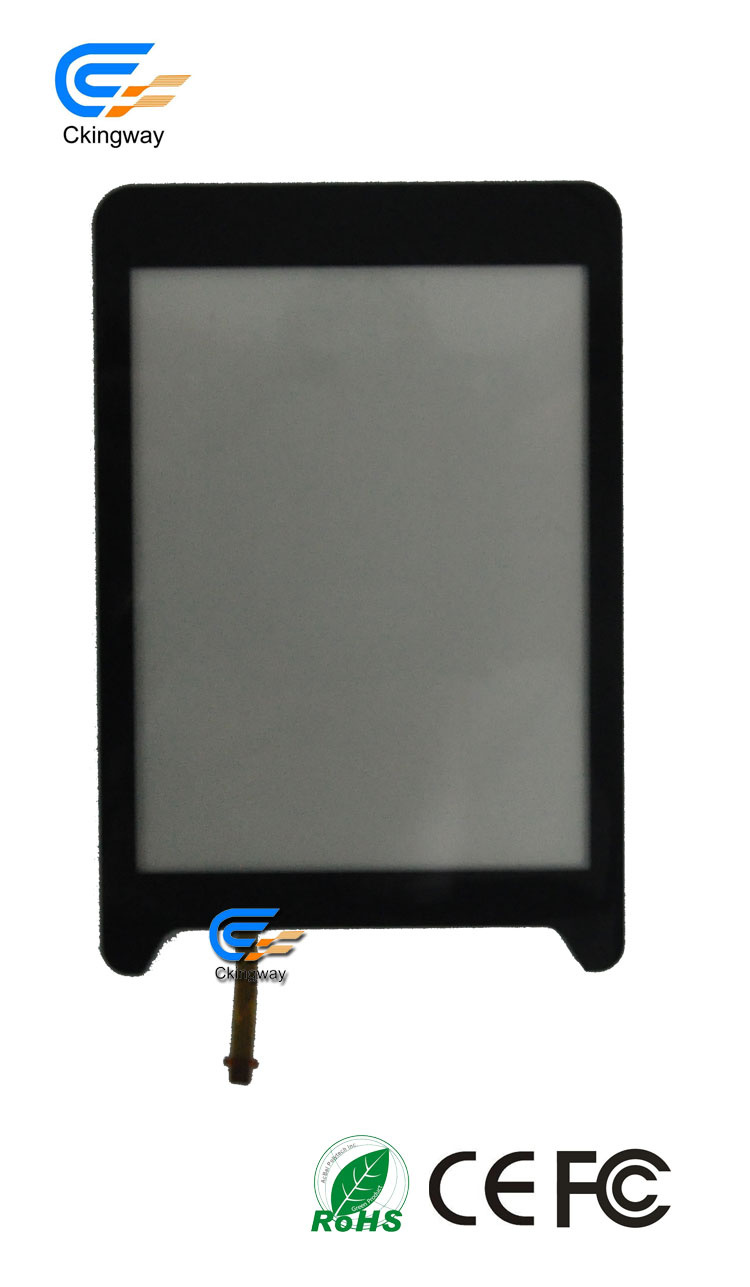

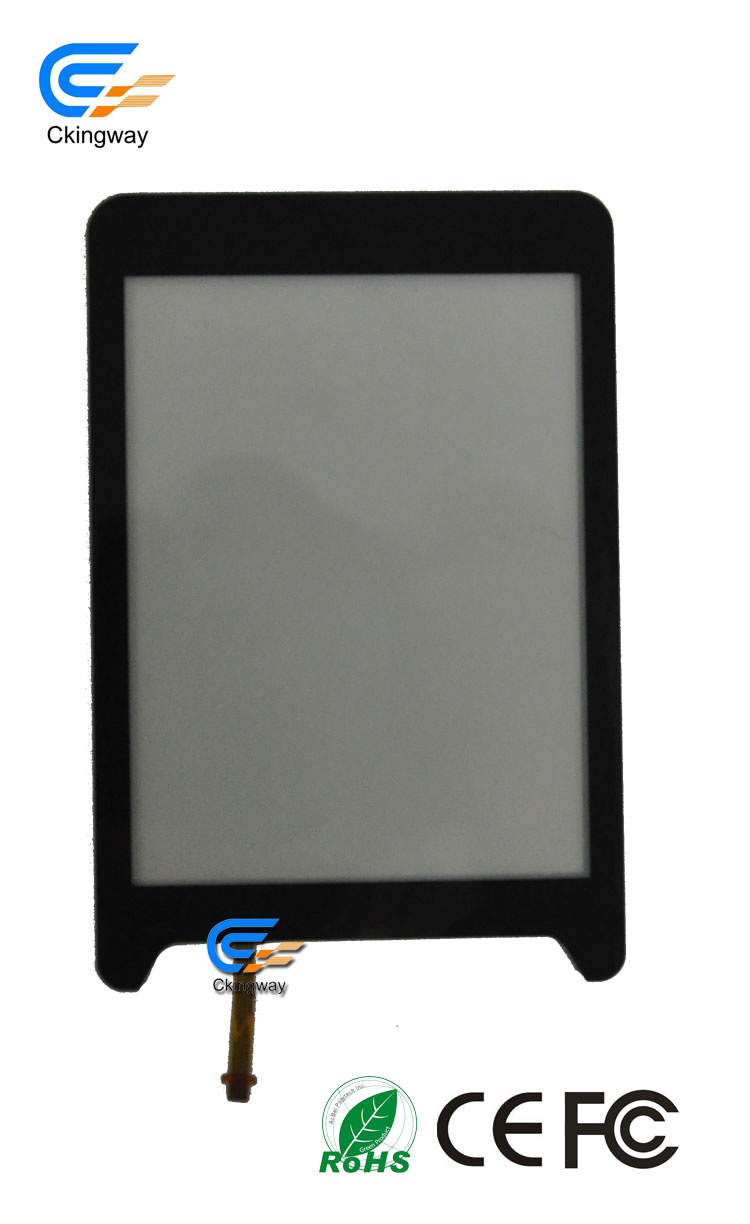

Product DescreptionThe Feathers Of Factory made high sensitivity 3.5'' lcd touch screen display for security Terms As Bellow:1.3.5 Inch Size.
2.Can Be Used In Outdoor And Indoor.
3.High Accuracy And Sensitivity.
4.Adapt To Adverse Environmental Conditons.
Size | 3.5" inch |
Structure | PET + Film + Film + Glass |
Connector | Pin 4 plug connector |
Thickness | 1.4 ± 0.15 mm |
Touch Media | Finger, Touch Pen |
Type | 4 Wire Restistive Touch screen |
Ratio | 16:9 |
Resolution | 4096*4096 |
Response Time | ≤ 10 ms |
Supply Voltage | 5V DC , 35 mA |
Transparent | ≥ 78% |
Screen Resistance | X:100-500Ω Y:200-1000Ω |
Insulation Resistance | ≥20MΩ(10V DC) |
Pressure | 50 - 150 g |
Surface Hardness | 3H |
Life Span | > 1,000,000 time knocking ; ≥ 100,000 time in paddling |
Operating Temperature | - 10ºC ~ +60ºC |
Storage Temperature | - 20ºC ~ +70ºC |
Storage Humidity | 20 ~ 85% RH (except congeal fog) |
Custom Service | Available |
Packing & DeliveryPacking: Individual OPP Bag or Anti Static Bag Packing or Bubble Packing, Put all the goods into the FOAM Box, Outside with ragged bag, Then put it in the Carton, Pack it with tape and seal.
Delivery: 3-5 Days After Received Full Payment.Factory made high sensitivity 3.5'' lcd touch screen display for security for Term of payment:
1.Full payment before delivery
2.Prepay 30% as the deposite,T/T 70% the balance before delivery
3.Prepay 50% as the deposite and mould fee ,T/T the balance before delivery
4.Payment method can be nogotiated
About Warranty: 1 Year without damaged by people actions.
