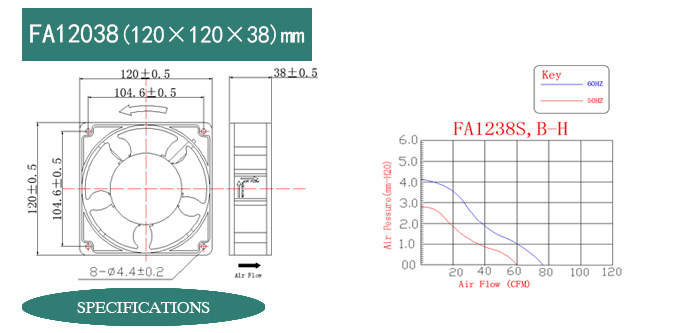

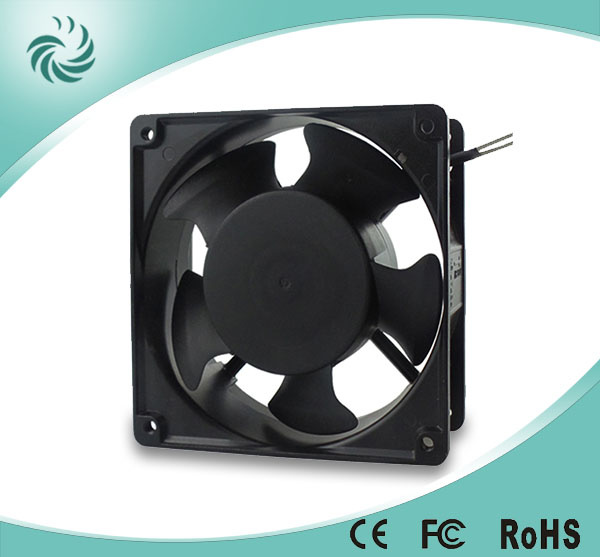

| Prod Model: |
FA1238 |
| Size: |
120mm*120mm*38mm |
| Bearing: |
Ball Bearing |
Product Description
| Model | Bearing Type | operation Voltage | Frep | Current | Power | Speed | Air Flow | Pressure | Noise | Weight |
| VDC | Hz | A | W | RPM | CFM | mmH2O | dBA | g |
| FA1238B7H-**** | Sleeve/ Ball | 110 | 50/60 | 0.22/0.18 | 21/18 | 2650/2950 | 91/113 | 6.35/7.62 | 40/45 | 500 |
| FA1238B7M-**** | 110 | 50/60 | 0.17/0.15 | 16/14 | 2400/2200 | 75/70 | 5.6/5.0 | 37/35 |
| FA1238B7L-**** | 110 | 50/60 | 0.14/0.12 | 12/10.5 | 2000/1800 | 66/60 | 4.8/4.5 | 30/29 |
| FA1238B8H-**** | Sleeve/ Ball | 220 | 50/60 | 0.12/0.11 | 21/18 | 2650/2950 | 91/113 | 6.35/7.62 | 40/45 |
| FA1238B8M-**** | 220 | 50/60 | 0.09/0.08 | 16/14 | 2400/2200 | 75/70 | 5.6/5.0 | 37/35 |
| FA1238B8L-**** | 220 | 50/60 | 0.08/0.08 | 12/10.5 | 2000/1800 | 66/60 | 4.8/4.5 | 30/29 |
| FA1238B9H-**** | Sleeve/ Ball | 380 | 50 | 0.07 | 18 | 2600 | 91 | 6.35 | 40 |
* All readings are typical value at rated voltage.
* Specifications are subject to change without prior notice.
* Please specify revision number when ordering.
Brushless AC Motor | Housing : PBT 94V0 | Impeller : PBT 94V0 | Impedance protected | Lead wire:UL 1007 AWG 22# |
Bearing Type | 2-Ball | Sleeve | | |
Operting Life | Insulation Resistance | Operating Temperature | Storage Temperature | Dielectric Strength |
50000 hours | 10Megohms MinAt 500VDC | -10ºC to +50ºC | -40ºC to +70ºC | 1 Minute At2000VAC/50-60Hz |
*All fans are with electronic protection against reverse polarity.
The fan only operates when the polarity is correct.
