| Prod Model: |
F-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
2-Way Full Range PRO Audio |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Lf Component: |
170mm Magnet with Aluminum Frame |
| Hf Component: |
90mm Magnet |
| Size Options: |
10", 12", 15", Dual 15" |
| Installing: |
Hanging, Pole Mount, Stand, Lying Down |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Home |
| Certification: |
CCC |
| Noise: |
Nun |
| Monitor: |
Nun |
| THD: |
<0.05% |
Product Description
Features:
a. Compact design;
b. Imported multilayer birch plywood;
b. High-quality durable polyesterimide paint;
c. Realistic sound, a clear free alto and treble.
1. Description:

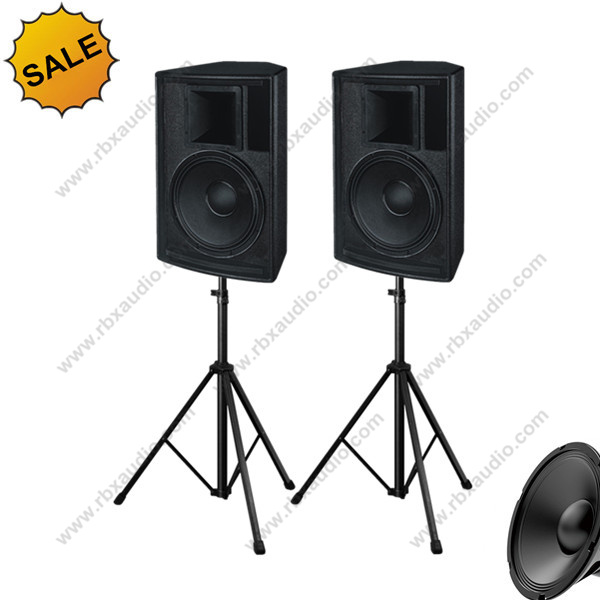

F-12 is a two-way full range loudspeaker system. To create a compact polygonal design, we apply several sheets of imported multilayer birch plywood. The surface of it is painted with high-quality durable polyester coatings.
F-12 is equipped with a 12" LF precise driver and a 1" HF precise compression driver, which leads to a balance among bass, alto and treble. When you use it, you will feel a realistic sound, a clear and free alto and treble.
2. Application:
It is ideal for auditorium, conference room.
3. Technical data:
| Model | F-10 professional PA Stage Speaker audio |
| Drivers | LF: 1×12"voice-coil: 3" |
| HF: 1×1"voice-coil: 1.7" |
| Frequency(±3dB) | 60HZ-18KHZ(±3dB) |
| Dispersion(-6dB) | Hor:90° × Vert:50° |
| Sensitivity(1m/1W) | 99dB |
| Maximum SPL | 126dB Continuous/131dB Peak |
| Nominal Impedance | 8 Ohms |
| Input power | Rate: 350W/Peak: 1400W |
| Recommend AMP | 400W to 600W into 8 Ohms |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 570 × 380 × 365mm (H × W × D) |
| Master carton | 630 × 440 × 425 (H × W × D) |
| Net Weight | 23.5Kg |
| Gross Weight | 25.5Kg |
4. Construction:
| Physical | Polygonal |
| Enclosure | Imported multilayer birch plywood |
| Grille | Die-casting steel net with circular hole |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | M8 screw of installation holes (16 pcs) |
| Pole Mount | Bottom: Φ35mm support base |
5. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.
