| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe |
| Usage: |
Laptop |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
UL |
Product Description

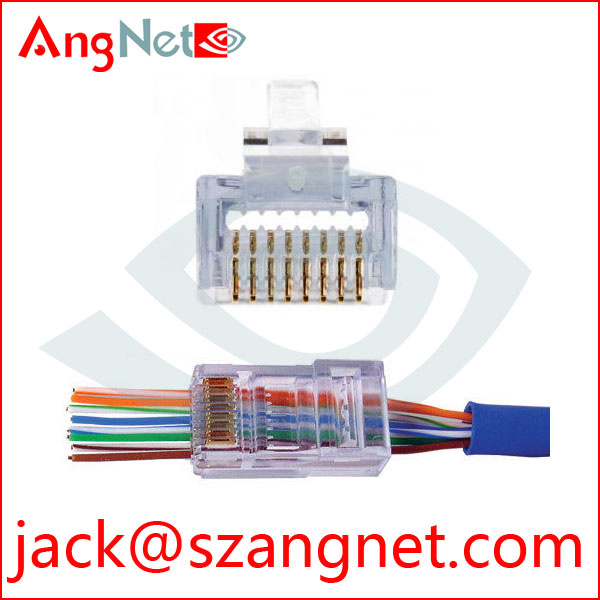

EZ-RJ45 Cat 5/5e Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out of the front. This allows the technician to easily verify the proper wiring order.
Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector.
Reducing the distance between the wire twists and contacts improves performance! Reduces scrap, no wasted crimps. More reliable, higher performance.
Crimp with the patented EZ-RJ45? Crimp Tool...crimps and trims in one cycle.
Features:
1.Through holes allow wire pairs to be inserted through front of connector.
2.Use in category 3, 5, 5E compliant data networks.
3.Easy to verify wire sequence.
4.Works with solid or stranded wire.
5.Faster terminations.
6.One piece design, no bars or liners.
7.FCC Compliant, UL rated.
Electrical |
| 1 | Contact Resistance | ≤20m Ohm |
| 2 | Insulation resistance | ≥1000MΩ |
| 3 | Dielectric Strength | 1000V/DC 60s can't spark over |
| Mechanical |
| 1 | Operating temperature | -40°C to +70 °C |
| 2 | Relative Humidity | <95% (at 25°C) |
| 3 | Durability | 750 mating cycles min |
| Material |
| 1 | Housing | Polycarbonate (PC); Flammability Class: UL 94V-0 or UL 94V-2 |
| 2 | Contacts | Phosphor bronze, Nickel plating followed with gold plating: 1u to 50u micro-inch |
| 3 | Shielding Housing | Brass with nickel plating or steel with nickel plating |
