| Prod Model: |
SHMCHS-1380 AND SHMCHS-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Green House, Livestock and Poultry House Ect. |
| Cooling Method: |
Direct Cooling |
| Certification: |
CE |
| Electric Current Type: |
AC |
| Mounting: |
Wall Fan |
| Blade Material: |
Stainless Steel |
Product Description

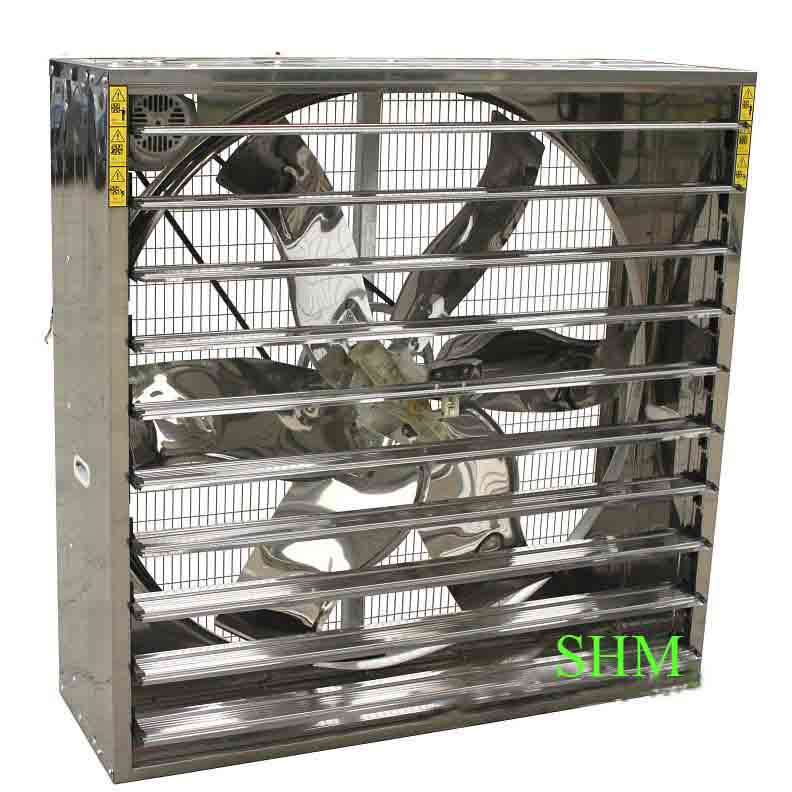

The Technical Data of Exhaust Fan with Centrifugal System and strong wind
Fan frame: Stainless steel 430
Sheet thickness is 1mm
Zink thickness is 275G/M2
Fan blades: Germany-imported mirror face stainless steel,
Fan blades No: 6
Fan Blade RPM: 460r/min
Fan blade Thickness: 1.2mm
Fan blade surface finish grade.: BA
Blades all pass the balance test after assembled, which
Can assure steady running and even airflow during the operational life span of the life.
Fan motor: The high efficient and energy-saving Simens motor (others motor accordingly ).
Fan motor protection grade: IP55
Fan motor insulation class: F
Fan Motor technical data is: 1.1kw or 0.75kw, 380V, 50Hz, RPM is 1440r/min
Fan belts: Japanese Mitsubishi brand
Fan centrifugal system: Adopt high quality nylon PA66 to ensure the
Long service life. The fasteners of centrifugal
System all are copper rivets, wear-resisting and
No rust, flexible
Fan shutter: High strength hot-galvanized steel sheet, The middle shutter thickness is 1.5mm, others are 0.8mm, with a centrifugal system which can ensure he shutter Opens with the angle of 90 degree under all the condition To ensure the lowest air resistance and biggest air volume. When closing, the sealing can efficiently block light and Wind into the poultry farm house.
Free maintenance: The whole use period is all free maintenance
Performance: Cooling pad used together with better effect, it is used for Longitudinal ventilation
|
Model |
Blade/mm |
Frequency/HZ |
Motor Speed(r/min) |
Capacity(cubic meters/h) |
power/w |
Noise(db) |
Voltage/v |
Size (mm) |
|
SHMCHS-1000 |
910(36in) |
50 |
≥ 1400 |
20800 |
750 |
≤ 64 |
380 |
1000x1000x450 |
|
SHMCHS-1380 |
1270(50in) |
50 |
≥ 1400 |
43170 |
1100 |
≤ 64 |
380 |
1380x1380x450
|
