| Prod Model: |
4680JB1035G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Refrigerator Motor: |
by Full Copper, or Mixed Copper |
| Capacity: |
10W |
| Shaft Type: |
Single Shaft |
| Application: |
Wine Cooler Parts |
| Parts: |
Evaporator |
Product Description

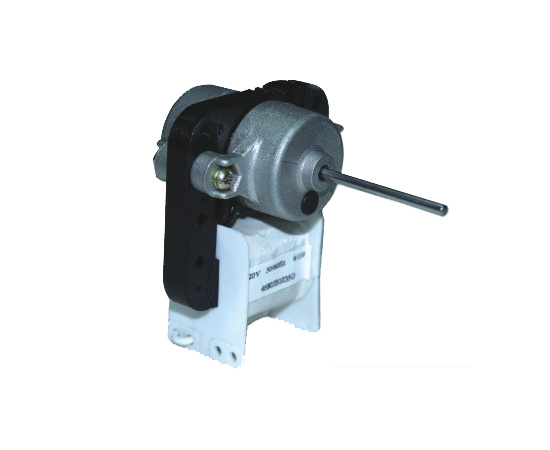

Refrigerator Fan Motor ( Shaded Pole Motor)
Model: MSP63S13.2T-CCW
Application: Refrigerator, Micro wave oven, air purifier, electic fan, small water pump, Desiccator, humidifier
Rated Frenquency(Hz): 50/60Hz
Output Speed: 3400 r/min
Running Voltage according to every countries' need(AC100-240V)
Diameter and length of output shaft is also to be your requirments.
CW or CCW rotation viewed from the end shaft.
Input Watt: 5-15W
| Model | Volt | Frequency | Input Power | Out Power | Current | Speed | A | B | C | D | E |
| V | Hz | W | W | A | R. P. M | mm | mm | mm | mm | mm |
| YJF3 | 220/240 | 50/60 | 20 | 3 | 0.16 | 1300/1550 | 81 | 14 | 46 | 30 | - |
| 110/115 | 50/60 | 20 | 3 | 0.32 | 1300/1550 | - |
| YJF5 | 220/240 | 50/60 | 30 | 5 | 0.20 | 1300/1550 | - |
| 110/115 | 50/60 | 30 | 5 | 0.40 | 1300/1550 | - |
| YJF7- | 220/240 | 50/60 | 38 | 7 | 0.27 | 1300/1550 | 91 | 17 | 49 | 33 | - |
| 110/115 | 50/60 | 38 | 7 | 0.54 | 1300/1550 | - |
| YJF10 | 220/240 | 50/60 | 42 | 10 | 0.30 | 1300/1550 | - |
| 110/115 | 50/60 | 42 | 10 | 0.60 | 1300/1550 | - |
| YJF16 | 220/240 | 50/60 | 58 | 16 | 0.40 | 1300/1550 | 102 | 18 | 50 | 34 | - |
| 110/115 | 50/60 | 58 | 16 | 0.80 | 1300/1550 | - |
| YJF18 | 220/240 | 50/60 | 64 | 18 | 0.43 | 1300/1550 | 20 |
| 110/115 | 50/60 | 64 | 18 | 0.86 | 1300/1550 |
| YJF20 | 220/240 | 50/60 | 65 | 20 | 0.47 | 1300/1550 |
| 110/115 | 50/60 | 65 | 20 | 0.94 | 1300/1550 |
| YJF25 | 220/240 | 50/60 | 100 | 25 | 0.70 | 1300/1550 | 112 | 18 | 30 |
| 110/115 | 50/60 | 100 | 25 | 1.40 | 1300/1550 |
| YJF34 | 220/240 | 50/60 | 120 | 34 | 0.90 | 1300/1550 | 117 | 35 |
| 110/115 | 50/60 | 120 | 34 | 1.80 | 1300/1550 |
Ningbo Towin Industry Co., Ltd, located in Ningbo, was established at 2010, and now it is an integrative industry enterprise that specializes in developing, manufacturing and marketing various types of heating, cooling, air conditioning and ventilation products.
Our main product include the parts for air conditioners, refrigeration, washing machine and heaters, which was sold to Europe, America, Australia, Middle East and other markets. More than 90% products are for exporting.
The products are compressors, motors, capacitors, overload protectors, relays, motors...In 2014, we sold 10 million USD products to South America and Latin America market.
