| Prod Model: |
JJL |
| Product: |
Evacuated Vacuum Tube Solar Energy System Water |
| Inner Tank Material: |
SUS304, SUS316, 0.4mm, 0.5mm, 0.6mm |
| Outer Tank Material: |
Galvanized/Color Steel, Powder Coated, Stainless |
| Accessories For Opition: |
Assistant Tank, Magnesium Rod, Solar Controller |
| Tank Capacity Opition: |
100L, 120L, 150L, 180L, 200L, 250L, 300L, 360L |
| Solar Stand/Bracket/Support Material: |
Galvanized/Powder Coated /Aluminium/SUS201/SUS304 |
| Application: |
Solar Water Heater,Solar Collector,Solar System |
| Max. Capacity: |
>200L |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Tank Insulation |
| Certification: |
CCC |
Product Description

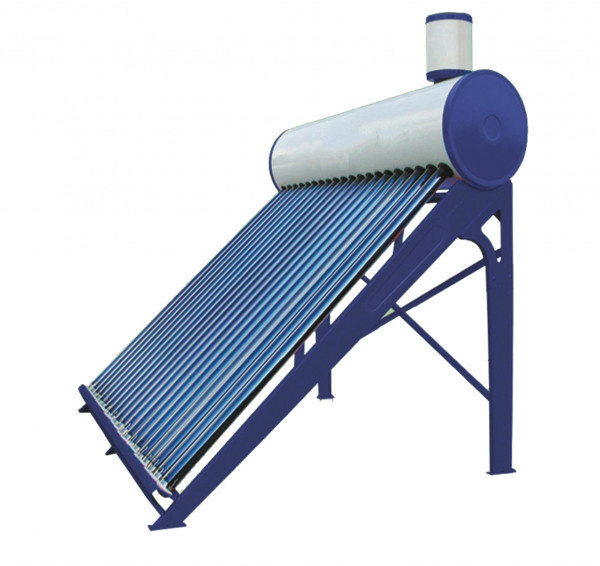

Evacuated Vacuum Tube Solar Energy System Water Heater
We manufacturer of Solar Water Heaters, Solar, Solar Panel, Solar Water System, Stainless Steel Solar, Solar Collector, Solar Tank, Pool Heater, Solar System for Home, Hot Water Heater, Heat Pipe Solar Collector, Solar hot water heating system, Solar thermal collector, Pressure solar water heater, Swimming Pool Solar Heater, Solar Geysers etc.
Specifications:
1. Solar Water Heater Inner tank: SUS304-2B, 0.4mm
2. Solar Water Heater Outer tank: Galvanized Steel 0.4mm
3. Vacuum tube: 58*1800mm three target
4. Stand: Galvanized Steel 1.5mm
5. Insulation layer: 55mm
Remark:
1. Solar heat storage tank diameter(mm): 410/460
2. Thickness, insulated(mm): 60
3. Vent connection(inch): 1/2
4. Electric heater connection(inch): 1
5. Water connection(inch): 1/2
6. Collector angle(degree): 30/45
Solar Water Heater System with Assistant Tank:
Model | Tube Size | Absorber Space | Volume | Tube Qty |
| | MM | M2 | M3 | |
| JJL4715-15-SNP | 47×1500 | 1.69 | 0.36 | 15 |
| JJL4715-18-SNP | 47×1500 | 2.03 | 0.42 | 18 |
| JJL4715-20-SNP | 47×1500 | 2.25 | 0.46 | 20 |
| JJL4715-24-SNP | 47×1500 | 2.70 | 0.54 | 24 |
| JJL4715-30-SNP | 47×1500 | 3.38 | 0.65 | 30 |
| JJL5818-15-SNP | 58×1800 | 1.92 | 0.59 | 15 |
| JJL5818-18-SNP | 58×1800 | 2.31 | 0.69 | 18 |
| JJL5818-20-SNP | 58×1800 | 2.57 | 0.74 | 20 |
| JJL5818-24-SNP | 58×1800 | 3.1 | 0.89 | 24 |
| JJL5818-30-SNP | 58×1800 | 3.62 | 1.09 | 30 |
| JJL5818-36-SNP | 58×1800 | 3.89 | 1.29 | 36 |
Jiaxing Carrefour New Energy Co., Ltd., established in 1999, is a professional manufacturer of solar water heater, with rich experience in the R&D and Production. After several years of unremitting efforts, we have accomplished outstanding success in product quality and organizational management. And having established the selling, serving network over China and many foreign countries. Meanwhile, the company has gained many honors such as China Compulsory Certification (CCC), CE certification for exporting to Europe, ISO9001: 2000 Quality System Certification, Certificate for Product Exemption from Quality Surveillance Inspection, China well-know brand, and so on.
We promise that we will provide better products, higher quality, lower price, better service, fast delivery, and longer warranty for our customers!
Join in us, and our products will be your best choice!
Modernized manufacturing equipments and technology have piloted us make progress constantly, and science and technology have enriched our industry. Development and innovation are our persistent pursuit in spirit. The modernized manufacturing equipments and technology have LED the mainstream of the industry and market. With strong conviction and rigid technology, we're committed to meet the demand of different consumption groups in different regions and under different climate conditions. We will create a favorable marketing atmosphere to make the high-tech products emerged like tide and to let technology lead the world.
