| Prod Model: |
jlf-CS-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
200L |
| Tube Size: |
58X1800mm |
| Tube Quantity: |
20 Vacuum Tubes |
| Package: |
Cartons with Foam |
| Angle: |
27'-45' |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Collector |
| Certification: |
ISO14001 |
| Max. Capacity: |
200 Liters |
Product Description
Avantages:
1> CE, ISO. 5 years warranty, long life span
2> Most competitive price and high quality
3> Quality assurance comply with ISO 9001-2008
4> Product quality in compliancee with CE
5> Fast delivery and rich export experience
Details:

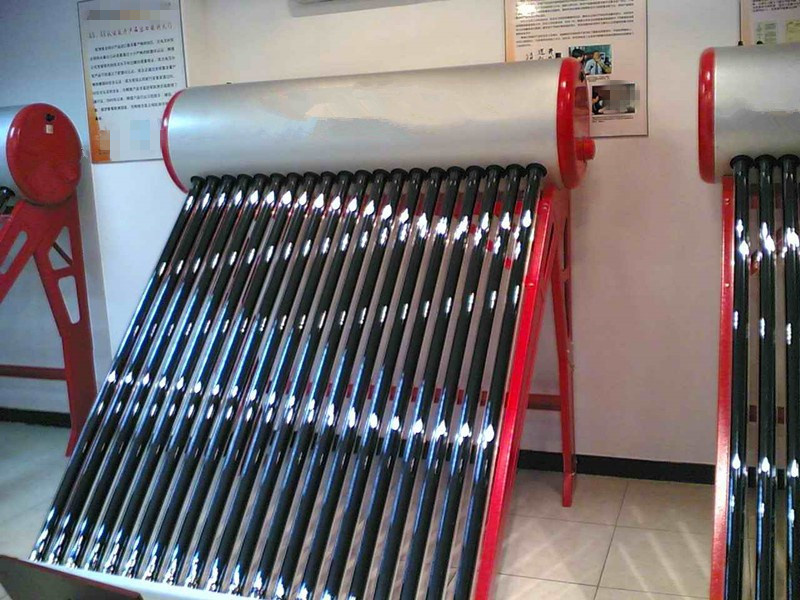

| Descripition | Non-pressure solar water heater |
| Material of out tank | 0.31-0.4mm color steel/fluorine carbon steel |
| Material of inner tank | Food grade 0.4mmSUS304 Stainless Steel |
| Tank insulating layer | 55mm high-density polyurethane foamed |
| Inlet and outlet hole | Male G 1/2, 3/4 |
| Max pressure | 0.05 Mpa |
| Solar collector tube | 3.3 Borosilicate glass with N/Al coating |
| Thickness of glass tube | 1.6mm |
| Vacuum tube tightness | P< =0.005 Pa |
| Absorption | as=0.93-0.96(AM1.5) |
| Emission ratio | 0.04-0.06(80C+-5C) |
| Idle sunning property parameters | Y=220~260m2. C/KW |
| Average heat loss coefficient | ULT=0.6~0.7W/(m2. C) |
| Bracket: | 1.5mm thickness Galvanized Steel |
| Structure of tank: | 5 holes for air vent, overflow, water inlet and outlet, electric heater |
| Welding: | Argon arc welding |
| Fastening pieces: | Made of stainless steel screw |
| Tube quantity | 20 tube 58x1, 800mm |
| Tank capacity | 200L |
Accessories:
1. Assistant tank: 3L/5L Or optional
2. Controller
3. Electrical heater: 1.5/2/2.5kw
Features:
1. Cheap and reliable solution, Simple structure, Easy installation
2. High efficiency
3. Withstands water pressure no more than 0.1MPa
4. Operated without any power supplying
5. Electric heater can be used as back up in rainy days
6. Hot water can be used directly, or can be used as a pre-heated
