| Prod Model: |
CR-07 |
| Markets: |
North America,South America,Eastern Europe,Africa,Western Europe |
| Rate Power: |
4-10kw |
| Ignite: |
Automatic |
| Packing Detail: |
Honeycomb Board with Pallet |
| Package Size(W*H*D): |
540*1075*585mm |
| Dimension(W*H*D): |
480*955*485mm |
| Net Weight: |
91.5kg |
| Fuels: |
Wood Pellet, Biomass Pellet |
| Efficiency: |
89%-94% |
| Hopper Capacity: |
20kg |
| Certificate: |
CE, RoHS |
| Making Method: |
Special Mantel |
| Overheating Protected: |
Overheating Protected |
Product Description
High-efficiency, low-emission wood heating systems are a cleaner way to use wood pellet for heat than traditional wood stoves and boilers. Because the stoves are more efficient, the fuels can be full burning and often save homeowners money.
Welcome OEM orders.
Professional radiator factory. Your satify is our aim.
We manufacture many kinds of pellet stove.
Pls contact me for more details.
Pls contact me, if you are looking for such products.
We believe we are the best choice.

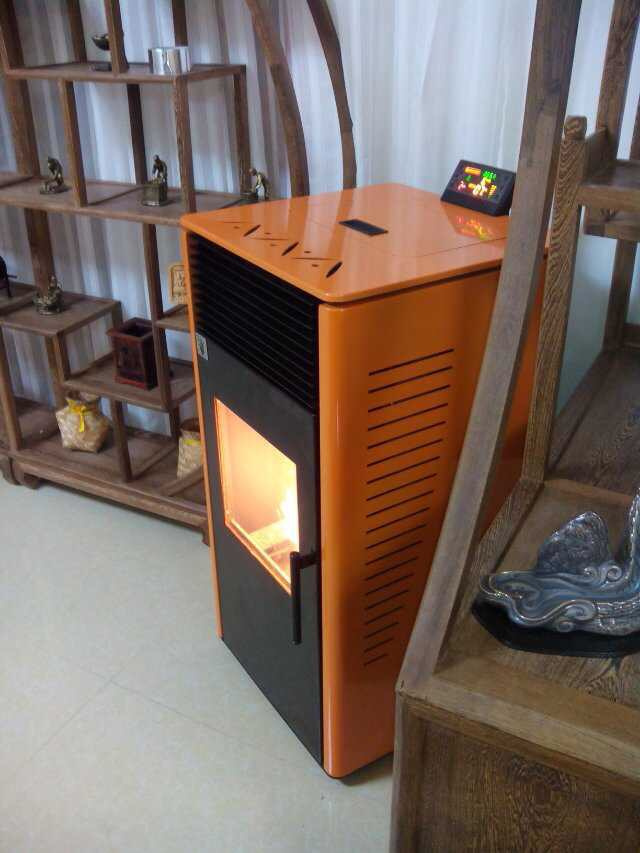

Pellet stove CR-07
1. Graceful and noble design
2. Popular for Europe market
3. Good quality but reasonable price
4. Factory direct selling
Instructions
1. Outside: Steel coating.
2. Inside: Monobloc steel structure, hand welded, heat-resistant up to 1200° C.
3. Door: Carbon steel, high temperature resistant, with glass-ceramic.
4. Removable ash box: It collects the ash fallen through the holes in the brazier.
5. Glass-self cleaning: Designing wind to blow ash from the glass keeps the glass always cleaning.
6. LED control panel: It is placed on the upper side of the stove, simple and easy to be used. It is possible to plan the weekly switching on and off of the stove (week-end included).
7. Thermostat: The stove can keep the room's temperature stably. The temperature can be selected by users both on the panel and remote control, showing on the display.
8. Six steps power setting: It is up to your need, which also shows on the display.
9. Remote control.
10. Smoke outlet: Ø 80 mm, inlet ø 50 mm or ø 75mm, inlet ø 50mm.
11. Electrical supply: 230V-50Hz. 115V-60Hz, 100V-50Hz
Benefits of Pellet Stoves
Clean burning, cost-efficient heating for your home
No hassle: Among the many wood-burning stoves available, pellet stoves are the easiest to operate. You'll typically need to load these stoves with wood pellets just once every day or two-and loading the pellets is a simple matter of pulling out the hopper and pouring the pellets in.
Smoke free: Pellet stoves don't produce smoke. This means you'll never have to worry about "smoking out" a room, or dealing with the subsequent dry air and unpleasant smells.
Heat safe: With a pellet stove, there's virtually no external heat while it's operating. You can place a pellet stove as close as one inch away from a wall, and it will pose no fire hazard. It's the ideal heating choice for households with children and pets.
Environmental and cost advantages
Wood pellets used in pellet stoves are tightly condensed, which makes burning them a low-moisture, highly efficient process. There are less harmful gases released into the air through wood pellet burning than with regular wood-burning stoves.
Technology data:
Model | | CR-07 |
| Dimension(H*D*W) | mm | 970*480*550 |
| Net Weight | KG | 92 |
| Air inlet Pipe | mm | 50 |
| Air outlet Pipe | mm | 80/100 |
| Heat Area | M² | 60-110 |
| Automatic Burning Time(Min-Max) | H | 9.5-33.3 |
| Fuel | | Wood pellet |
| Consumption for Pellet(Min-Max) | KG/H | O. 7 /1.5 |
| Efficiency | % | 89% |
| Hopper Capicity | KG | 20 |
| Electronic comsuption | KW/H | 100-400 |
| Rating Valtage and Frequecy | V/Hz | 230V/50Hz |
| Rating Power | KW | 4-10KW |
More details information, please feel free to contact us.
Yongkang Chuanrun Industry & Trade Co., Ltd. Was founded 2012. We focus on designing, researching and developing, manufacturing and selling pellet stove. We have more than 20 self-developed designs and molds for you to choose from. With our rich experience and considerate services, we have been recognized as a reliable supplier for many international buyers. We operate our in-house facilities to work on your OEM/ODM projects. Our experienced engineers are adept at using 3D CAM/CAD, enabling us to meet your customized requirements. We have a large CNC laser cutting machine, CNC bending machine, 20m Printing line. The factory capacity is 20000 stoves/year, To ensure quality, we have more than 20 QC members to carry out strict inspection at each stage: Incoming inspection (IQC), in-process inspection (IPQC) and final inspection (FQC). Our products sell well in domestic and international markets, such as Russia and Britain, Spain, Algeria, Argentina, etc. The advantages of our stove: Two kinds (LED and LCD)of Display to choose, low noise, easy repair, warranty 2 years. And already got EN14785 since 2013. We will sincerely create and share success with all clients.
