| Prod Model: |
DZ005LLXXXYYYZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Blace PC Fire Anti Shell: |
with CE/Rosh/UL /GS Certificates |
| Type: |
Portable |
| Power Source: |
Electric |
| Over-Current Protection: |
With Over-Current Protection |
| Color: |
Black |
| Socket Type: |
For USA/Canada |
Product Description

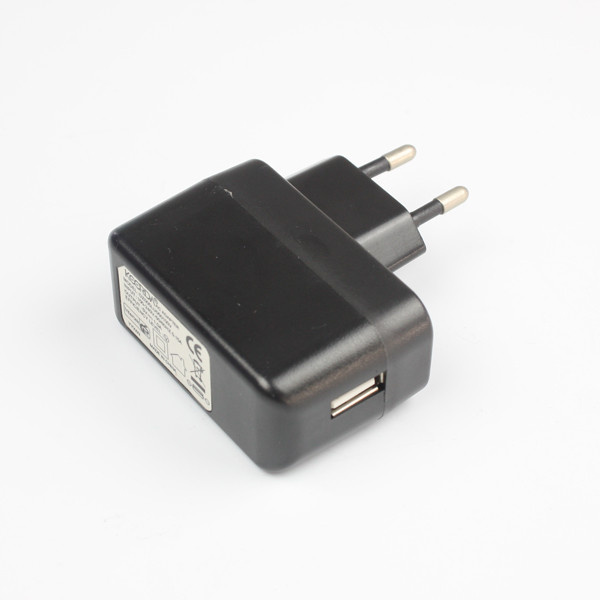

EU plug USB Mobile phone charger 5v 1amp power supply CCC / GS
SPECIFICATIONS:
Specifications: | Noise immunity |
| Input Voltage:100-240V AC | Radiation:61000-3-2 |
| Input Current:0.15A | Static discharge:61000-4-2 |
| Frequency:50-60HZ | Radiation electromagnetic field: 61000-4-3 |
| Efficiency:comply with energy efficiency level 5 | The fastest instantaneous discharge:61000-4-4 |
| No-load power consumption: Max 0.3W | Lightning:61000-4-5 |
| Output voltage adjustable rate:+_5% | Conduction harass:61000-4-6 |
| Voltage interruption/aberrance:61000-4-11 |
PRODUCT FEATURES:
1. Perfect allocation,Moderate price,charging for mobiles with Lithium or Ni-MH battery inside
2. Superior power supply,fixed frequency control circuit make sure the stable charging performance.
3. Supply constant and stable output voltage for most of portable electric devices,such as Mobile phone,
PDA,digital camera,CD/mp4 player etc
4. 100% safety circuit design ,compliance with all the safety approvals.
5. Environment friendly,energy saving,meet the energy efficiency level 5
6. Portable,compact and smart design
7. Power indicator(optional)
8. High-efficiency circuit design ,make sure the lowest heat.
9. Excellent primary insulation,hi-frequency transformer with 100% vacuum permeance
10. Build-in electromagnetism resistant filter.
PROTECTION FUNCTIONS:
1. Short circuit protection: adapter can recover normal work automatically after the short circuit problem clear.
2. Over current protection:adapter can recover automatically normal work after over current problem
clear.
3. Over voltage protection:Protection circuit will be started if output voltage over quota voltage
150%~180%,adapter can recover normal work automatically after problem clear.
RELIABILITY
1. Burned out:charging load 85%-95% ,40±5ºC
2. Leakage current:0.25mA, Max:254 Vac
3. Insulation and withstand voltage(between primary and secondary):3000Vac,60S,Max 5mA
4. MIBF:Full loading above 50000 hours based on MIL-HDBK-217F standard with 25ºC
WORKING CONDITIONS
1. Working temperature: 0ºC~40ºC based on full loading
2. Keeping temperature:-20ºC~85ºC
3. Humidity:no condensation of moisture with humidity 5%~95%
COMPLIANCE WITH EMC
1. North America:FCC PART 15 CLASS B
2. European Market:EMC :EN55013/EN55022 CLASS B
3. China Market:GB4943
OBTAINED CERTIFICATIONS:
1. GB(global)IEC 60950-1
2. CCC (China)GB4943-2001
3. GS(European)EN60950-1
4. CE(European)EN55022,55024,55013,55020/55014-1,2
5. BS (UK)BS EN60950-1/BS EN60065
6. ETL (North America) UL60950-1
7. SAA (Australia)AS/NZS60950-1
8. KC (Korea)K60950-1
9. PSE (Japan)J60950-1
