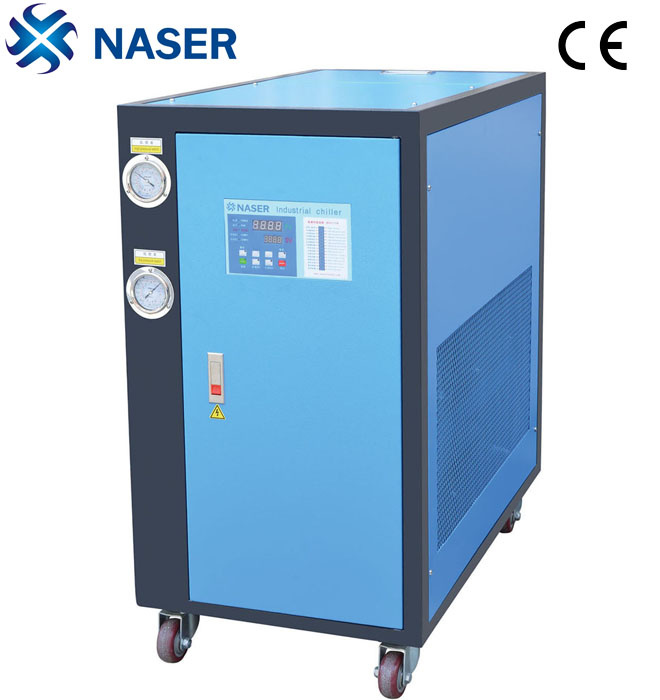

Environmental Water Chiller Air Conditioner
Price: |
US $ 11000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
NWS-30WC |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rated Cooling Capacity: |
106.5kw |
Standard Freezing Water Flow: |
18.31m3/H |
Built-in Pump: |
3HP |
Compressor Power: |
22.5kw |
Machine Size(L*W*H): |
L2200m*W1100m*H1880m |
Weight: |
1400kg |
Voltage: |
380V/50Hz/3phase(Optional) |
Retrigreant: |
R22/R-407c/R404A |
Evaporator Type: |
Water Tank/Shell Tube Type/Stainless Steel Plate S |
Condenser Type: |
Shell Tube Type |
Type: |
Water-Cooled |
Certification: |
SGS |
Condition: |
New |
Compressor Number: |
3 |
Product Description
Air cooled chiller Product Description
1) The adoption of PID temperature controller ensures temperature accuracy within ± 1 DEGREE
2) The air chiller has Complete safety devices
3) When any abnormal situation is detected, the indicate light of air chiller will display
4) Safe main switch design
5) The main power can be turned off immediately when any emergency situation occurs
6) Installed with importation pump switch, has the features of high pressure
7) High stability and no leakage
8) Stainless steel intemal parts, and corrosion free pipe
Safety protection system:
No tatal power circuit breaker
Compressor overload protection
Circulating pump overload protection
Anti-phase and open phase protection
High&Low pressure protection for refrigerant
FAQ:
1. Payment Terms:
T/T - 30% deposit before production, 70% balance before delivery, or other terms
2. Delivery Detail:
About 10 workdays after payments.
3. Pacage Terms:
International Standard Wooden Case for Export
Pls kindly offer the following information:
1. Cooling capacity
2. Inlet /outlet water temperature
3. Chiller water flow rate
4. Retrigreant
5. Voltage/Frquency
Our services
1. Free repair within 1 year of guarantee on the condition of operate the machine in the right way,
Do not include the daily maintaining, also we will not afford the travel expense out of ZHUJIANG delta.
2. Our factory provide machine testing when customer come to our factory to see this machine.
3. We provide detail machine technical specification, electric diagram, installation book,
Operating manual, drawings
4. We can provide engineers to customer's factory to help installation and training workers if customer required.
5. We offer OEM
6. CE/ISO/SGS
Air chiller techinique parameters |
Type |
| Technical Para meters of Air cooling |
Model | NWS-2AC | NWS-3AC | NWS-4AC | NWS-5AC | NWS-6AC | NWS-8AC | NWS-10AC | NWS-12AC | NWS-15AC | NWS-20AC | NWS-25AC | NWS-30AC | NWS-40AC | NWS-50AC |
|
NOMINAL OUTPUT | 50HZ | Btu/h | 20655 | 29156 | 40285 | 49503 | 60428 | 80570 | 99006 | 120856 | 148509 | 208937 | 240346 | 313405 | 471132 | 587208 |
KW | 6.05 | 8.54 | 11.8 | 14.5 | 17.7 | 23.6 | 29 | 35.4 | 43.5 | 61.2 | 70.4 | 91.8 | 138 | 172 |
Kcal/h | 5203 | 7344 | 10148 | 12470 | 15222 | 20296 | 24940 | 30444 | 37410 | 52632 | 60544 | 78948 | 118680 | 147920 |
USRT | 1.7 | 2.4 | 3.4 | 4.1 | 5 | 6.7 | 8.2 | 10.1 | 12.4 | 17.4 | 20 | 26.1 | 39.2 | 48.9 |
Power Input |
| 380V/3P/50HZ |
Compression | Compressor Power | KW | 2.08 | 2.75 | 3.65 | 4.54 | 5.43 | 7.3 | 9.08 | 10.86 | 13.62 | 18.11 | 21.2 | 27.17 | 32.6 | 40.6 |
Quantity | Unit | 2HP*1 | 3HP*1 | 4HP*1 | 5HP*1 | 6HP*1 | 4HP*2 | 5HP*2 | 6HP*2 | 5HP*3 | 10HP*2 | 12HP*2 | 10HP*3 | 20HP*2 | 25HP*2 |
Flow regulator |
| Capillary vessel | Termoexpen | Capillary vessel | Termoexpen sion valve |
| sion valve |
Retrigreant | R22 or R134A |
Evaporator | Style | Tank-type/Shell and tube type |
| Capacity | L | 36 | 55 | 55 | 58 | 58 | 118 | 173 | 173 | 290 | 348 | 348 | 391 | 504 | 540 |
Standard freezing water flow | M3/H | 1.04 | 1.47 | 2.03 | 2.49 | 3.04 | 4.06 | 4.99 | 6.09 | 7.48 | 10.52 | 12.11 | 15.79 | 23.73 | 29.58 |
Diameter of standard nipple | DN | 25 | 25 | 25 | 25 | 25 | 40 | 40 | 40 | 50 | 50 | 50 | 65 | 80 | 80 |
Built-in pump | HP | 0.5 | 0.5 | 0.5 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 3 | 5 | 5 |
Machine weight | KG | 102 | 150 | 165 | 176 | 260 | 320 | 380 | 410 | 680 | 830 | 1200 | 1400 | 1520 | 1620 |
Measure | Long | MM | 580 | 930 | 930 | 1140 | 1140 | 1300 | 1530 | 1530 | 1700 | 2000 | 2000 | 2200 | 2000 | 2200 |
Wide | MM | 580 | 520 | 520 | 560 | 560 | 700 | 780 | 780 | 870 | 1130 | 1130 | 1100 | 1500 | 1700 |
High | MM | 925 | 975 | 975 | 1040 | 1040 | 1350 | 1470 | 1470 | 1680 | 1720 | 1824 | 1880 | 1880 | 1880 |
