| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Alto |
| Model Number: |
Ahh-R030/Dhw |
| Refrigerant Type: |
R407c/R410A |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Pump Packing: |
Cartons& Plywood Case |
| Delivery Times: |
15 to 30 Days |
| Delivery Port: |
Shenzhen/Guangzhou, China |
| Heat Source: |
Air-source |
Product Description

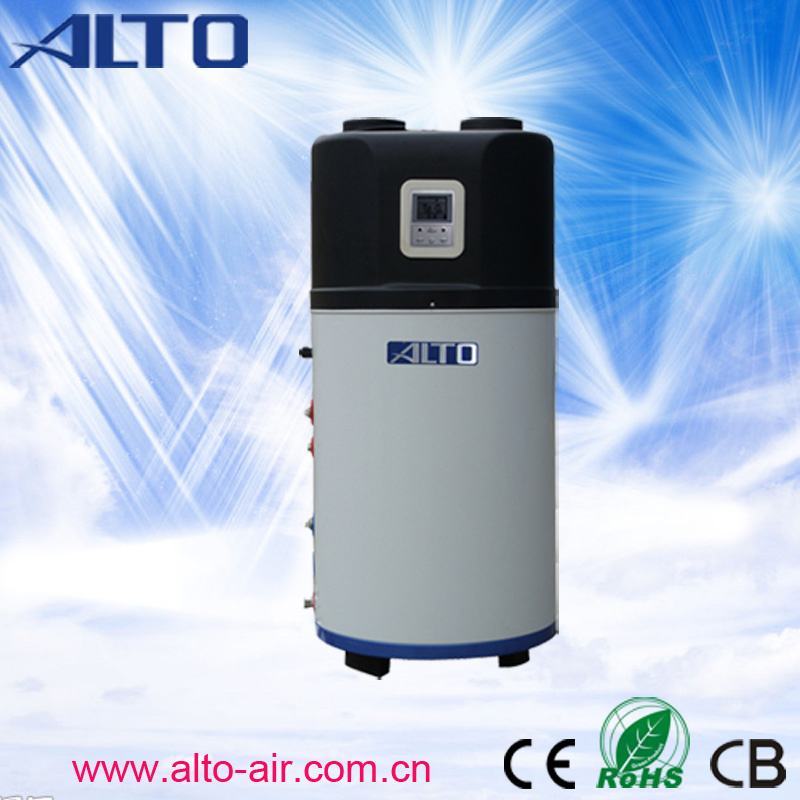

Alto DHW series air source heat pumps utilize the solar heat stored in the surrounding air or the waste heat from the indoor air as a valuable energy source for central domestic hot water preparation up to 60C. The air source heat pump also returns the cooled and dehumidified air to the installation room that can then be used as a cool storage room for groceries.
ALTO air source heat pump features:
1. Alto air source heat pump Innovative design integrates the heat pump system with the water cylinder, which is made of stainless steel to meet the most stringent hygiene requirements.
2. Alto air source heat pump can be operated completely independently of different heat sources, such as outdoor ambient air, the energy potential of unheated rooms and air discharged with humidity from bathrooms, toilets, and laundry rooms.
3. Alto air source heat pump is equipped with all the components necessary for efficient and space-saving domestic hot water heating at COP up to 3.6.
4. Alto air source heat pump uses High efficiency compressor and large area evaporator realizes efficient heat transfer to supply sufficient hot water for the shower or tub in a short pace of time.
5. Various functions of air source heat pump can be selected by pressing just a few keys due to the easy-to-use programmed control integrated inside.
6. Solar thermal kits and electric booster heaters in the air source heat pump are optional for boosting the domestic hot water temperature.
7. Simple installation lead the DHW series air source heat pump to be ready for operation, only connecting the water lines and condensate drain, and plug into a 230V power socket.
|
Model |
|
AHH-R030/10/DHW |
|
Rated Capacity |
w |
3000 |
|
Rated Input |
w |
950 |
|
COP |
(w/w) |
3.2 |
|
Power supply |
V/Ph/Hz |
220~240/1/50 |
|
Rated Current |
Amp |
4.1 |
|
Water Temp |
C |
55 |
|
Max Water Temp |
C |
60 |
|
Guaranteed Operating Range |
C |
-7~35 |
|
Water Tank |
Litre |
100 |
|
Water Volumn |
L/h |
75 |
|
Water Inlet |
inch |
G3/4' ' |
|
Hot Water Outlet |
inch |
G3/4' ' |
|
Recyle Water Inlet |
inch |
G3/4' ' |
|
Magnesium Stick |
inch |
G3/4' ' |
|
Temperature Sensor |
inch |
G1/2' ' |
|
Rated working pressure |
Mpa |
0.2~0.6 |
|
Noise |
dB(A) |
50 |
|
Net weight |
kg |
48 |
|
Gross weight |
kg |
53 |
|
Unit Dimension(φ × H) |
mm |
φ 560× 1418 |
|
Pacing Dimension(L/W/H) |
mm |
650× 650× 1558 |
