| Prod Model: |
PM15002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
ABS |
| Display: |
Digital |
| Installation: |
Direct Connected |
| Usage: |
Reactive Energy Meter |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Pulse Peak |
| Type: |
Energy Meter |

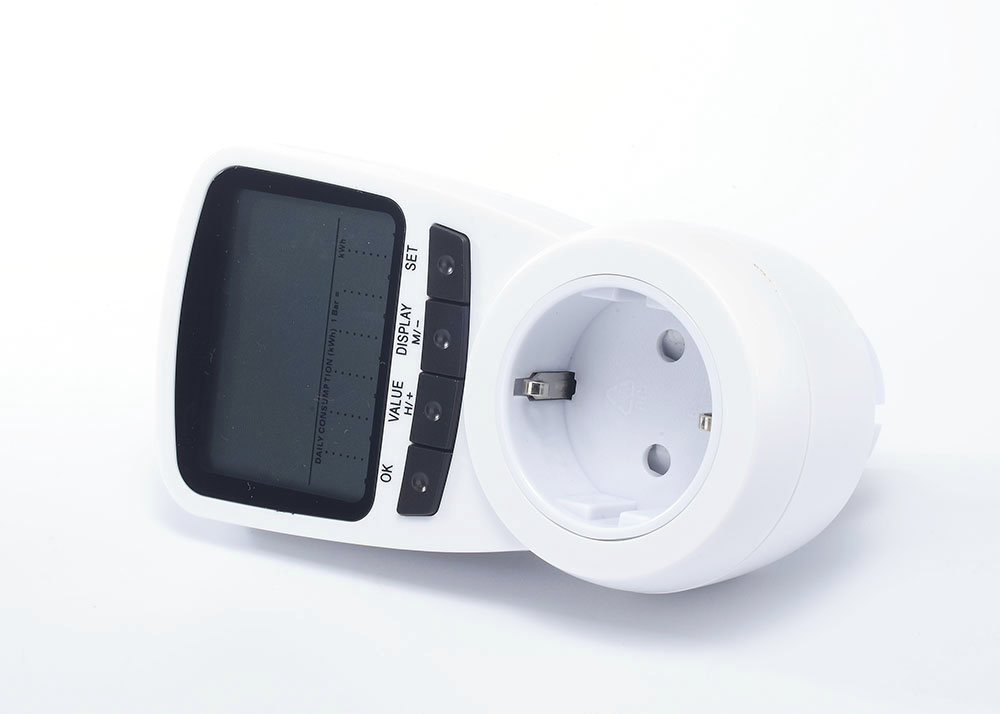

Product Description
1.electric device consumption measurement
2.work mode calculation
3.standby mode calculation
4.display of voltage, amperage, power, energy, cost, work time and other customized elements
5.overload alert, excessive usage alert
6.backup settings
7.indoor only
Parameter:
Energy Meter PM15002 |
| Material | ABS |
| Current | max 16A |
| Voltage | 190-240VAC, 50-60Hz |
| Power | max 3680W resistive load |
| Work Temperature | -10-65deg |
| IP Level | / |
| Plug | universal |
| Cell | 2*LR44(1.5V) or AG 13 (1.5V) |
| Operation Life | 10 years |
| Display | digital |
| Usage | indoor |
| Phase | single |
| Certificate | CE,RoHS,TUV,ISO9001:2008,ISO14001:2004 |
| Theory | resistive |
| Voltage Display&Accuracy | 190-276V, ±5V(3%) |
| Curent Display&Accuracy | 0.00-19.99A, ±0.002A (3%) |
| Power Display&Accuracy | 1-3680W, ±1W (3%) |
| Energy Display&Accuracy | 0.00-9999.99KWh, ±0.1KWh (3%) |
| Frequency | 45-65Hz |
| Power Factor | 0.70-1.00 |
| Power Consumption | 0.6W |
| Body Weight | 175.0g |
| Measurement | 81*65.3*124.6mm
|
