| Prod Model: |
eMCP221-SD |
| IC Test Socket: |
Programming Reader |
Product Description

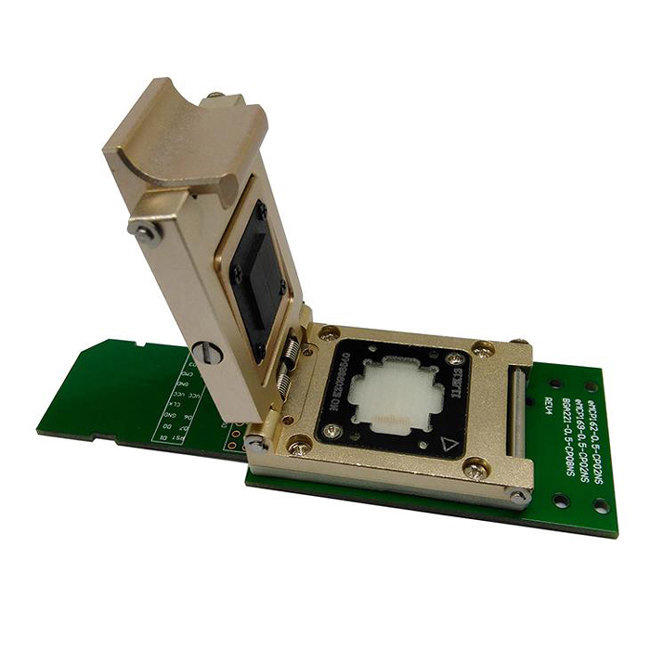

This eMCP221 programming adapter is an easy use tool to connect chip and PC. Just like a U disk!
Includes size limiters: 11.5x13mm
It is designed for testing, data recovery and programming of eMCP chips which are used in applications of mobile, data recorder, the Internet of things, etc.
We provide a simple software which can check the capacity, read, write and verify. It helps to read *.bin file from the chip and write *.bin file into the chip. Please contact us if you need it.
General
To make data recovery for andrio device. e.g. mobile (*.bin format)
Support eMCP221 package chip, e.g. KMR8X0001M-B608,KMQNW000SM-B316,KMR310001M-B611,KMQ8X000SA-B414,KMQ7X000SA-B315,etc
Support eMCP221: thickness= 0.8~1.5mm, pin pitch= 0.5mm
Long life span: 300,000 times (Mechanical)
Support all brands. Such as Samsung, Hynix, Sandisk, Toshiba, Intel, Kingston etc
Support hot plug, connecting PC with SD card reader
Identify, reading and writing data
Well designed to connect flat bottom, solder ball,even if no ball
Operating Temperature: -55ºC~+175 ºC
Package Contents
Adapter x 1 piece with size limiter 11.5x13mm
Size limiter qty depends on order
