| Prod Model: |
IR-PA1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
Black |
| Playing: |
USB |
| Frequency Response: |
75Hz-15kHz+-3dB |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Sound Channel: |
2.1 |
| Voltage: |
AC 220V |
| Conductive Mode: |
D |
| Used For: |
PA System |
| Function: |
Digital Amplifier |
| Output Number: |
2 |
Product Description
Description of Electronics Teaching System Class D Infrared Imported Digital Amplifier
Adopt American imported class D digital amplifier
With wireless infrared receive mode inside
USB and MP3 play
Quality feed back suppressor

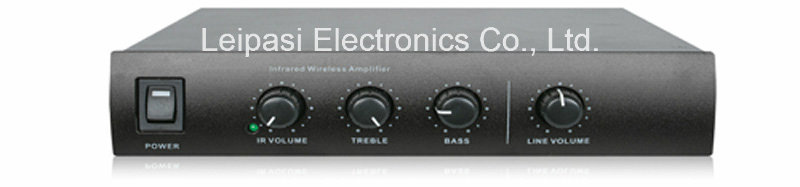

IR-PA1 Digital amplifier
| Modulation mode ; (IR)Frequency Modulated |
| Carrier frequency : CHA2.06 MHz,CHB 2.56MHz |
| Frequency Response: 75Hz-15KHz+-3dB |
| THD: <1%@10KHzDeviation |
| S/N Ratio: >60dB(MIC 1.2),,>70dB (Line),>100dB(IR MIC) |
| Working distance: >100 Sq.m(15m line of sight) |
| DR: 100dB |
| RF output power +-0.005%(-10 degree to 40 degree) |
| RMS output power Max 2x30W@8 ohm |
| Input Sensitivity 1.5mV(MIC 1.2.),150mV(Line) |
| Input impedance 2K ohm (MIC 1.2),47ohm(Line) |
| Amplifier rule: 19'' EIA Standard 1-Rack Unit |
| Amplifier power supply 24V DC |
FAQ
| Our Advantage | 1.We are professional microphone factory, so we can provide the compitive price to you.
2.we focus on middle and high-end items and ensure every product made by the the superior material. we have strict quality control system to avoid quality problems.
3.There are many types you can choose ,if you have you own designed idea,we also accept the OEM order
4.Little order is availiable |
| The Sample | About the sample,we need to charge the sample and freight fee. |
| The Shipping | 1.Express
2.Air shipping
3.Sea shipping |
| The Lead-time | 1.Small order and sample:5-7days
2.Big order:30-45 days |
Enping Leipasi Electronics Technology Co Ltd is professional audio manufacturer and our factory is located in Enping city, Guangdong, China. We are dedicated to manufacturing high qualityprofessional power amplifier, equalizers, crossovers and signal processors.
Over past years, we has earned great reputation among our partners by providing high performance audio products that is trusted but also maintaining a high level of service and after sales service.
We have been the manufacturer of professional power amplifier for years. We have the excellent technology and use the superior materials which are mostly imported from Japan, Korea and so on. We exported the amplifiers to all over the world, such as America, Japan, Thailand, ect.
There are many different series of products. Such as CA, CK, MT, FP, HA series. The watt range from 15W to 1500W. All series of our goods are high quality, stable and have a lower price, which can help you to reduce your cost and win your market.
OEM and ODM service are also offered to you. Together with the team of engineers, we are dedicated to research and develop new professional audioto keep up with current market's demand.
It is your good choice to choose our products, and it is going to be the pride of our company to build a business relation with you.
