| Prod Model: |
KI-31 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Voltage: |
250V |
| Max Current: |
15A |
| Electronic Tool: |
PCB Board |
| Cleaner: |
High Current Batter Packs |
| Heating Pad: |
Electrical Blanket |
| Contact Type: |
Normal Close or Normal Open |
| Thermostat Type: |
Auto-Reset or Manual Reset |
| Size: |
Miniature |
| Function: |
Overheating Protection |
| Usage: |
Air Conditioner, Washing Machine |

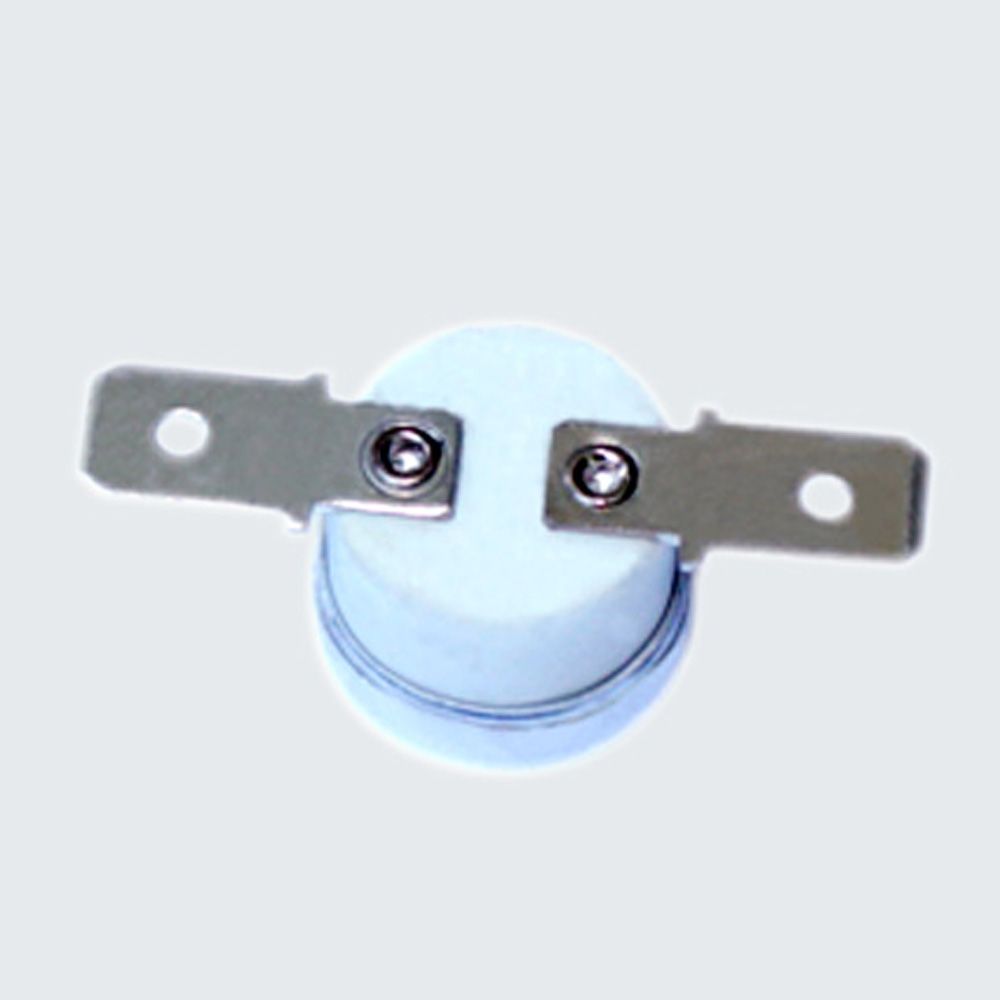

Product Description
Technical parameters:
1. Electrical parameters:
1)CQC, VDE, UL, cUL AC250V 50~60Hz 5A/10A/15A (Resistance load)
2)UL AC125V 50Hz 15A (Resistance load)
2. Action temperature range: -10~260Centigrade (Optional); Temperature accuracy: ± 2 ± 3 ± 5 ± 10Centigrade
3. Recovery and action temperature difference: 8~100Centigrade (Optional)
4. Connection method: Insert the terminal 250# (bending angle: 0~90° Optional); Insert the terminal 187# (bending angle: 0~90° Optional; Thickness: 0.5, 0.8mm optional)
5. Lifespan: ≥ 100, 000 times
6. Electrical strength: No spark or breakdown for 1min at AC 50Hz 1800V
7. Contact resistance: ≤ 50MΩ
8. Insulation resistance: ≤ 100MΩ
Junction method: Constant-closed: The contact point disconnects when temperature rises; And contact point connects when temperature falls;
Constant-opened: The contact point connects when temperature rises; And contact point disconnects when temperature falls.
10. Casing protective class: IP00
11. Grounding method: Connection is made between the metal casing of the temperature controller and the metal part of the grounding device.
12. Installation method: Installed for KI031 series: General moving ring, mini round moving ring, flat moving ring general aluminum cover with mounting hole, extra length aluminum cover with mounting hole
Office Equipment Snap-action Thermostat
Applications of KSD301 Thermostat
1. Water dispenser, Electric heater, Sandwich toasters, Dishwashers, Dryers, Disinfection cabinet, Microwave ovens, Electric coffee pot, Electric caldron, Refrigerator, Air conditioning gluing machine
2. Office equipment
3. The seat heaters
4. Steam guns/ Steam irons
