| Prod Model: |
SG001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
330X175X365mm |
| Weight: |
5.5 Kg |
| Fuel: |
Coal, Wood, Tree Branch, Gas |
| Power Availability: |
8 Hours |
| Direct Current Capacity: |
3-7V |
| Usager: |
Outdoor Enthusiasts &Exploration Researchers |
| Application Area: |
No Electricity Use Area & Power Outages Area |
| OEM: |
Yes |
| Number Of Burner: |
1 |
| Type: |
Portable |
| Ignition Mode: |
Electronic Ignition |
| Panel Material: |
Stainless Steel |
| Material: |
Stainless Steel |
| Fuel Type: |
Coal |
Product Description

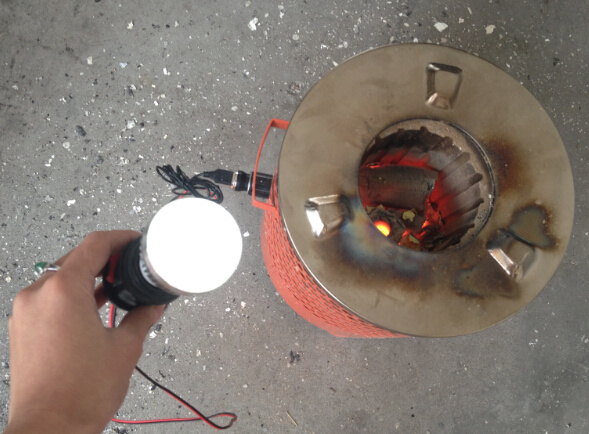

electric generators stove with honeycomb briquet
Function: An be used in cooking and warming for general family, also can be used for power generation by burning coal, wood, tree branch, gas, etc, the power can be enough to satisfy the daily lighting. The biomass or wood burning in the combustion chamber heats up the wall of its consumption chamber. The heat can be converted into electricity by thermoelectric modules. Meanwhile, its excess power can be used for powering small communication equipment like mobile phones
Advantage: Small size, light weight, portable
Energy source:
Honeycomb briquette. It can last for a long time and price is low, high performance. Except the honeycomb briquette, any consumptible material can be used as energy source, such as charcoal, wood, tree branch, but they provide less power by themselves.
Power time: It can provide 8 hours power time with burning 2 pieces honeycomb briquettes. Even though the coals are burned out, it also can provide 5 hours power time. If you want to get continuous power supply, just fill the new honeycomb briquettes.
Application of product: Can provide 3V-7V direct current, can be used for 4-6 LED lights (1-3 watt) at the same time. It also can provide lighting in 10-15 square meters room, even 3 rooms at the same time.
Target:
No electricity use area, such as rural area or mountainous area
Areas without electricity area by natural disaster caused, such as earthquake disaster area.
Outdoor enthusiasts or exploration researchers.
Use Instructions:
Put burning fuel in thermoelectric generator
Open the throttle in order to ensure air supply
After the fuel burning adequately, then can cooking or boiling water or warming. TradeMessenger
After finish cooking or boiling, can close the throttle. Thermoelectric generator also can be used for power generation as long as ensure the fuels don't burn out.
Can provide 3V-7V direct current, can be used for 4-6 LED lights (1-3 watt) at the same time.
Can easy to clean the slag just open the thermoelectric
