| Prod Model: |
SLTF1208001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Sltf12108001 |
| Diameter In Mm: |
130 |
| Diameter In Inch: |
12 |
| Voltage(V): |
12 |
| Current(a): |
10 |
| Speed(Rpm): |
2700 |
| Airflow(M^3/H) @100PA: |
1000 |
| IP Rating: |
N/a |
| Type: |
Axial Flow Fan |
| Speed: |
1 Speed |
| Power Supply: |
Electric |
| Power: |
100W-300W |
| Timer: |
Without Timer |
Product Description
1,Diameter in mm:130-450
2,Diameter in inch:5-15
3Voltage(V):6V-24V
4,Current (A):2A-12A
5,Speed(rpm):1000-9000
6,Airflow(m^3/h) @100Pa:260
7,IP Rating: 67

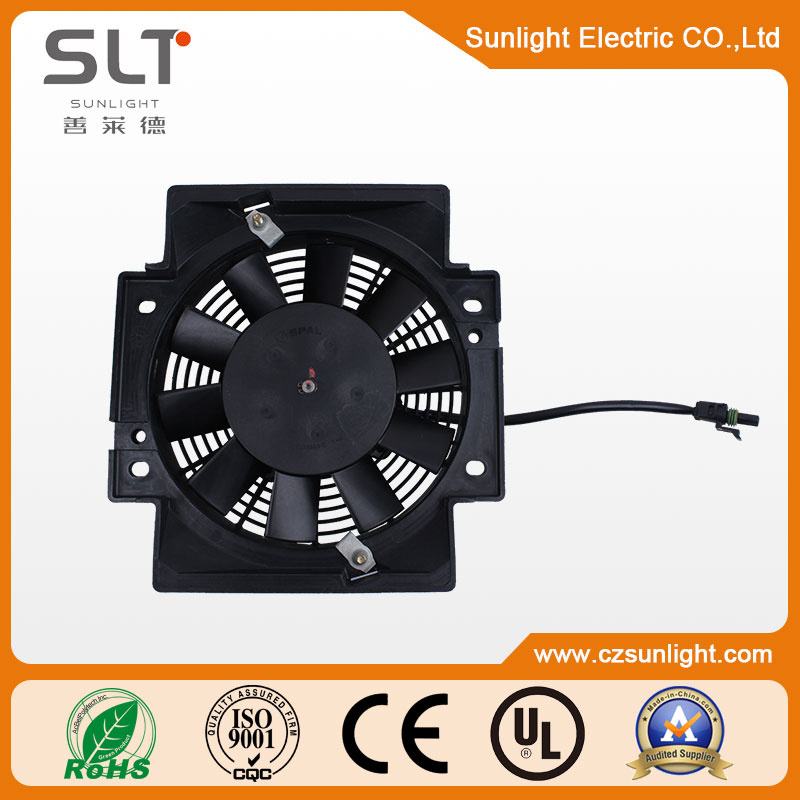

Advantage of Electric Exhaust Similiar Spal Condenser Fan with adjust speed :
1,Low power consumption,
2,Fast heat dissipation, low noise,
3,Environment care:
Technical data of Electric Exhaust Similiar Spal Condenser Fan with adjust speed :
| NO. | Part Number | SLDF1208001 |
| 1 | Diameter in mm | 190 |
| 2 | Diameter in inch | 8 |
| 3 | Voltage(V) | 12 |
| 4 | Current (A) | 8 |
| 5 | Speed(RPM) | 3200 |
| 6 | Airflow(m^3/h) @100Pa | 540 |
| 7 | IP Rating | 67 |
| Part Number | Diameter in mm | Diameter in inch | Voltage(V) | Current (A) | Speed(RPM) | Airflow(m^3/h) @100Pa | IP Rating |
| SLTF1211001 | 280 | 11 | 12 | 8 | 2700 | 700 | IP67 |
| SLTF1205001 | 130 | 5 | 12 | 4 | 5000+/-200 | 260 | IP67 |
| SLTF1212001 | 300 | 12 | 12 | 10 | 2700 | 1000 | IP67 |
| SLTF1208001 | 190 | 8 | 12 | 8 | 3200 | 540 | IP67 |
| SLTF1216001 | 400 | 16 | 12 | 20 | 3200 | 2400 | IP67 |
| SLTF1212002 | 300 | 12 | 12 | 10 | 3200 | 1000 | IP67 |
| SLTF1213001 | 330 | 13 | 12,24 | 10 | 3200 | 1050 | IP67 |
| SLTF1214001 | 356 | 14 | 12,24 | 12 | 3200 | 1380 | IP67 |
| SLTF2406002 | 147 | 6 | 24 | 4 | 2700 | 260 | IP67 |
| SLTF1221001 | 521 | 21 | 13 | 24 | 3200 | 3000 | IP67 |
Components of the axial fan:
1,wheel hub ;
2,gearbox;
3,cabin cover ;
4,coupling;
5,electronic control system;
6,generator ;
7,cooler;
8,pump station;
9,yawing driven;
10,yaw brake;
11,yaw bearing;
12,foundation;
13,elastic base;
14,blade
Application of Electric Exhaust Similiar Spal Condenser Fan with adjust speed :
1,Office Machine
2,Household Appliances
3,Food Industry
4,Industrial Machinery
5,Medical Industry
6,Building Industry
Axial Fan maintenance
1,Using environment should be keep clean and tidy,Fan surface should be keep clean,Inlet and outlet should not have the sundry.
2,Only can run of the fan is completely normal, s at the same time to ensure the power supply and voltage stability.
3,Fan in the running process if found to have abnormal situation, should immediately stop check
4,According to use environment conditions do not regularly to supplement or replace bearing grease.
5,Fan should be stored in dry environment, avoid motor be affected with damp .
Warning
We highly recommend not to use our fans in flammable and combustible environments.
Improper handling and wrong usage of the fan may cause injuries.
Packaging & Shipping
1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required
About sunlight:
1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional knowledge of assembly.
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)
Asian( Korea, Japan...)
FAQ:
A: What products that you will apply ?
Car, Beach buggy , Truck, Bus or others ?
B: What is your installation dimensions ?
The max size and diameter of the fan as your request.
C: What are the specifications of the DC motor ?
Such as voltage, speed.....
D: What's the request of the operation temperature ? As usual, the temperature is between -40 to 80.
E: What's your IP grade ? As usual it is IP67.
Contact Sunlight
1,Your client satisfied on the right schedule and quality;
2,You can get good reputation from your market and obtain more orders;
3,Our professional service before and after sale;
4,The reasonable and competitive price;
5,Service is excellent.Any questions from you are welcome and will be replied in 24 hours.
6,Delivery on time
Name Card:
Changzhou sunlight Co., Ltd
Contact.: Catherine Wang
Tel.: 86-519-83825998
Fax.: 86-519-83823899
Mobile: 86-15888322079
Website: www.czsunlight.com or www.sunlightmotor.com
www.czsunlightmotor.en.made-in-china.com
Sunlight is specialized in providing Axial fan, DC Motor, BLDC, parts and solutions. We insist in being best supplier with high reputation. Our head office Wenwei factory was found in 2000, which produce the parts of fan and motor in the began. The sub company Ronda manufactures aerator and was built in 2008. The sales number is around 6000M, and the area is about 5000 square meter, 200 employees, the products are sold to America, Europ, Asia and so on.
As a professional manufactuerer, we design and produce Axial fan, DC motor, brushless motor, stepper motor, plastic mould and spare parts, the products are applied to Car, bus, truck, home appliance, medical equipment, electric tools and so on. Quality is our life, technical is the basic, be honest and faithful to our partners. At the same time, we pay more attention on team work and improving the staff skills. Customer requirements and the innovation of technology as our guide, try to be the market leader of Motor business.
Sunlight provide the better power source for you, and at the same time, we offer the technical information and data for motor industries, suppliers and our partners.
Where there is power, there is sunlight.
