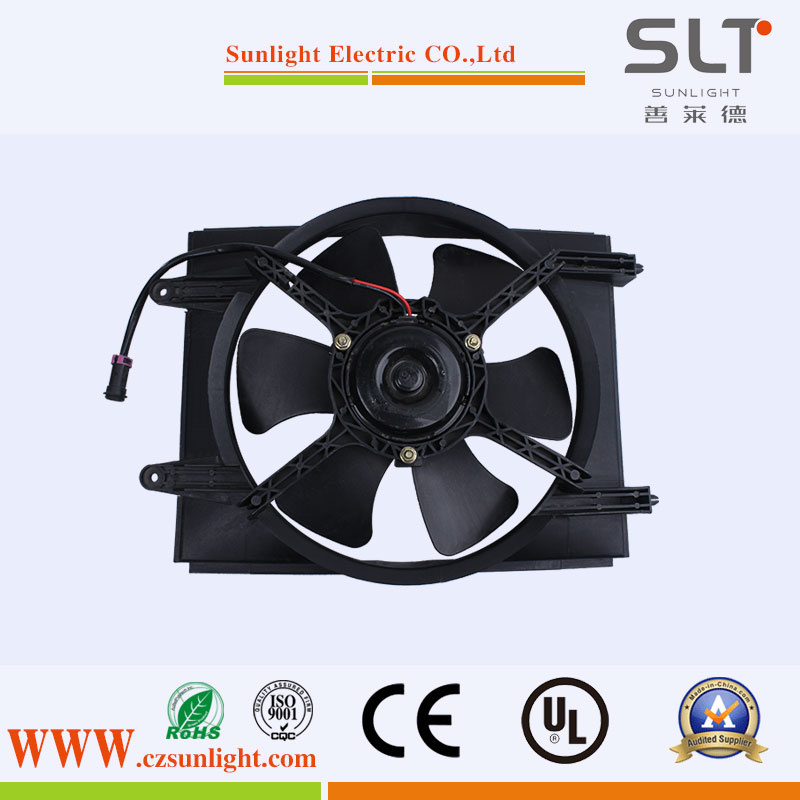

Electric Cooling Compact DC Axial Flow Fan for Industry
| Price: |
US $ 15-25/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
SLTF1212001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Sltf1212001 |
| Diameter In Mm: |
130 |
| Diameter In Inch: |
12 |
| Voltage(V): |
12 |
| Current(a): |
10 |
| Airflow(M^3/H) @100PA: |
1000 |
| IP Rating: |
N/a |
| Type: |
Axial Flow Fan |
| Speed: |
1 Speed |
| Power Supply: |
Electric |
Product Description
Product Description
Size :130mm-300mm or 3inch-16inch
Voltage: 6V-48V
DC Motor: Brush or Brushless dc motor
Current : 4A-20A
Speed: 2000-9000RPM
Airflow@100pa: 100-5000
IP Grade: IP67 or as your request
The specification of Electric Cooling Compact DC Axial Flow Fan for IndustryNO.
| Part Number | SLTF1212001 |
| 1 | Diameter in mm | 300 |
| 2 | Diameter in inch | 12 |
| 3 | Voltage(V) | 12 |
| 4 | Current (A) | 10 |
| 5 | Speed(RPM) | 2700 |
| 6 | Airflow(m^3/h) @100Pa | 1000 |
| 7 | IP Rating | N/A |
| Part Number | Diameter in mm | Diameter in inch | Voltage(V) | Current (A) | Speed(RPM) | Airflow(m^3/h) @100Pa | IP Rating |
| SLTF1211001 | 280 | 11 | 12 | 8 | 2700 | 700 | IP67 |
| SLTF1205001 | 130 | 5 | 12 | 4 | 5000+/-200 | 260 | IP67 |
| SLTF1212001 | 300 | 12 | 12 | 10 | 2700 | 1000 | IP67 |
| SLTF1208001 | 190 | 8 | 12 | 8 | 3200 | 540 | IP67 |
| SLTF1216001 | 400 | 16 | 12 | 20 | 3200 | 2400 | IP67 |
| SLTF1212002 | 300 | 12 | 12 | 10 | 3200 | 1000 | IP67 |
| SLTF1213001 | 330 | 13 | 12,24 | 10 | 3200 | 1050 | IP67 |
| SLTF1214001 | 356 | 14 | 12,24 | 12 | 3200 | 1380 | IP67 |
| SLTF2406002 | 147 | 6 | 24 | 4 | 2700 | 260 | IP67 |
| SLTF1221001 | 521 | 21 | 13 | 24 | 3200 | 3000 | IP67 |
Advantages of Electric Cooling Compact DC Axial Flow Fan for Industry
1,Low power consumption,
2,Fast heat dissipation, low noise,
3,Environment care:Application of Electric Cooling Compact DC Axial Flow Fan for Industry
1,Office Machine
2,Household Appliances
3,Food Industry
4,Industrial Machinery
5,Medical Industry
6,Building IndustryCompany Information
Since 1990
Specializing in Axial fan, Radiator Fan, Blower Fan, Motor Fan,DC Motor,Brushless Motor,Hub Motor,Auto Parts(Die casting and plastic parts). We can design the solutions for our clients, or produce the products by your requirements.
Our principle: quality is our life, technical is the basic, be honest and faithful to our partners. At the same time,
we pay more attention on team work and improving the staff skills.Customer requirements and the innovation of technology
as our guide, try to be the market leader of Motor business.
Axial Fan maintenance1,Using environment should be keep clean and tidy,Fan surface should be keep clean,Inlet and outlet should not have the sundry.
2,Only can run of the fan is completely normal, s at the same time to ensure the power supply and voltage stability.
3,Fan in the running process if found to have abnormal situation, should immediately stop check
4,According to use environment conditions do not regularly to supplement or replace bearing grease.
5,Fan should be stored in dry environment, avoid motor be affected with damp .WarningWe highly recommend not to use our fans in flammable and combustible environments.
Improper handling and wrong usage of the fan may cause injuries. FAQ
Q:What products that you will apply?
A: Car, Beach buggy , Truck, Bus or others
Q:What is your installation dimensions?
A:The max size and diameter of the fan as your request.
Q:What are the specifications of the fan?
A: Such as voltage, speed,current and airflow.
Q:What's the request of the operation temperature?
A:As usual, the temperature is between -40 to 80.
Q:What's your IP grade?
A:As usual it is IP67.
Q: Which product certification do you have?
A: Our company passed CE, ROSH, SGS, ISO9000 International Quality Authentication System
Q: Is it possible to visit your factory?
A: Sure. But please kindly keep us posted a few days in advance. We can arrange it for you then.
Q: Can I get some samples?
A: Yes, welcome to take samples to test our quality and service. Packaging & Shipping
1,Axial fan Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required
