| Prod Model: |
EAC-9P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Source: |
Electrical |
| Certification: |
CCC |
| Cooling/Heating: |
Cooling/Heating |
| China Energy Efficiency Standard: |
Level 1 |
| Capacity: |
27000-48000 BTU |
| Type: |
Electric Ceiling Air Conditioner |
Product Description

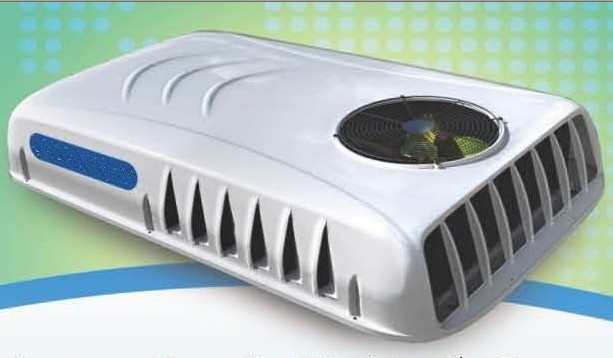

Electric Air Conditioner
Vehicle Mounted Electric Energy-saving Air Conditioner, EAC-9P
Technical parameters
1. Specification: 9P
2. Cooling capacity/heating capacity: 10500W/11600W
3. Rated voltage: 200/230V
4. Power frequency: 3pH-60Hz
5. Pwer input, cooling/heating: 3130/3900W
6. Rated current, cooling/heating: DC12.3/DC12.9A
7. Energy efficiency ratio: 3.35
8. Air quantity: 1900 m3/h
9. Type of refrigerant: R407c
10. Dimenssion: L1700*W1440*H280mm
11. Weight: 117kg
The Characteristics of Design
1. Energy-saving and Environment-protection
The EER (energy efficiency ratio) is as high as 3.35, which is unique among the present vehicle air-conditioning products. The environment-friendly refrigerant R134A is employed to promote a low-carbon living condition.
2. Module Configuration
Modular configuration could be varied due to different lengths of passenger buses. One to three units of modular combinations are respectively applied to 7m to 12m buses, so as to meet various cooling demands of different vehicles.
3. Comfort
The electric energy-saving air conditioner optimized the design of air duct as well as the structure of the vibration source to lower noise and reduce vibration. The AC employed noise-absorbing and vibration-damping materials, and controls the indoor noise at the level of 45dB.
4. Electric Drive
An electric scroll compressor is used to save the energy of power battery since the power battery is applied as the direct power source.
|
5KW~10KW Motor Specification |
|
12/15KW~20/25KW Motor Specification |
|
Rated/Maximum Speed |
1500/3000rpm |
|
Rated/Maximum Speed |
2000/3600rpm |
|
Rated/Maximum Torque |
50/130N· m |
|
Rated/Maximum Torque |
70/150N· m |
|
Cooling System |
Water Cooling |
|
Cooling System |
Water Cooling |
|
Water Flow Rate |
5L/min |
|
Water Flow Rate |
5L/min |
|
Efficiency η % |
95% |
|
Efficiency η % |
93% |
|
Voltage range of input DC |
80V-346V(Optional) |
|
Voltage range of input DC |
346V |
|
|
|
|
|
|
|
20/25KW~30/35KW Motor Specification |
|
60/70KW~100/120KW Motor Specification |
|
Rated/Maximum Speed |
2200/3800rpm |
|
Rated/Maximum Speed |
2200/4000rpm |
|
Rated/Maximum Torque |
100/200N· m |
|
Rated/Maximum Torque |
300/700N· m |
|
Cooling System |
Water Cooling |
|
Cooling System |
Water Cooling |
|
Water Flow Rate |
5L/min |
|
Water Flow Rate |
5L/min |
|
Efficiency η % |
94% |
|
Efficiency η % |
94% |
|
Voltage range of input DC |
346V |
|
Voltage range of input DC |
346V |
|
|
|
|
|
|
|
120/130KW~200/220KW Motor Specification |
|
|
|
|
Rated/Maximum Speed |
2200/4000rpm |
|
|
|
|
Rated/Maximum Torque |
300/700N· m |
|
|
|
|
Cooling System |
Wind Cooling (60W Air Blower) |
|
|
|
|
Efficiency η % |
94% |
|
|
|
|
Voltage range of input DC |
346V |
|
|
|
Zhuhai Guangtong Automobile Co., Ltd. Has diesel bus, CNG&LNG bus, hybrid bus, electric bus, which including coach bus and city bus. There are more than 50 types waiting for your choice. The bus length is from 5m to 12m, the range from economical light buses to top-luxury ones. We have sold our buses to many oversea countries and areas such as Germany, Italy, Algeria, Philippines, Thailand, Vietnam, Hong Kong, Macao, etc.
In 2006, we exported our buses to Italy.
From 2008 to now, we have been cooperating with Hong Kong Kowloon Motor Bus Company to assemble Alexander Dennis double deck buses.
From 2009 to now, we have been cooperating with Hong Kong Jit Luen Auto Body Works Co., Ltd., who is one of top bus manufacturers in HKG. Now we manufacture more than 150 buses per year for HK market.
From 2011, we start to assemble buses for Alexander Dennis Inc.
Now we assemble around 200 double deck buses per year.
In 2012, we are the first bus manufacturer in China, who got the European certificate of e-bus. And we export the e-bus to Germany already. So we can supply you the CBU, or drive train, or motor, battery and accessories.
During these cooperation, we have accumulated a lot of precious experience to enhance our production technology.
We welcome you to visit our company, and sincerely hope to set up long-term and mutually beneficial cooperation with you.
