| Prod Model: |
PA3N180B24H/48H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Ec 24VDC Portable Air Conditioner |
| Usage: |
Telecom Station, Heat Exchanger, Free Cooling Unit |
| Motor Type: |
Ec Brushless External Rotor Motor |
| Speed Control: |
0~10VDC/PWM |
| Insulation Class: |
B |
| Operating Temperature: |
-25~+60 |
| Weight: |
1.8kg |
| Blade Material: |
Plastic |
| Electric Current Type: |
DC |
| Mounting: |
Free Standing |
| Certification: |
CE |
Product Description

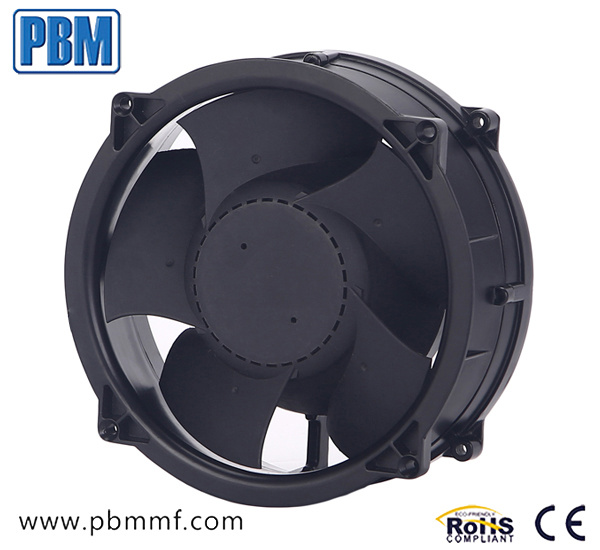

Name: Ec 24VDC Portable Air Conditioner
PBM Motor and Fan is a China mainland manufacturer and EC technology consulting company offering an extensive range of EC(Electronically Commutated) motors, fans and solutions, investing in the latest developing, manufacturing and technical equipment with in-depth processes & procedures. Our main products are EC fans, including EC axial fans, EC centrifugal fans and EC blowers. We do both AC and DC current type. And EC Motor is the core technology of our products.
Eletronically Commutated Motors(EC Motors)also known as Brushless DC Motors(BLDC) are synchronous electric motors powered by direct-current(DC) electricity and having electronic commutation systems,rather than mechanical commutators and brushes.The current-to-torque and voltage-to-speed relationships of BLDC motors are linear.
PBM fans are widely used in many fields. For example, axial fan for telecom, backward curved centrifugal fan for air exchanger,(inline duct fan)hydroponic products and FFU, forward curved centrifugal fan for air purifier and air conditioning,blower for kitchen.
Fan type: Ec Axial Fan with DC input
Rated voltage: 24 VDC
Operating Voltage:16~28 VDC
Low-Start Voltage: 15 VDC
Rated current: 4 A
Rated power: 96 W
Rated speed: 4,550 RPM
Airflow: 530CFM/900M3/H
Air pressure: 2.8inH2O/709Pa
Noise: 68 dBA
Weight: 1.8kg
Life Expectance: 50,000Hours(L10) at 40ºC room, humidity 15%~65%RH
Direction of rotation: Clockwise
Direction of air flow: Axial
Insulation class: B
Insulation resistance: 50 Mega Ohm minimum at 500VDC between frame and (+) terminal
Motor Protection:Locked rotor protection, Maximum current under locked rotor, Reverse polarity protection, Over voltage protection and Soft start.
Speed Control: Control input 0 to 10V DC/PWM, tach output
Protection Type: IP33
Dielectric strength:10mA maximum at 1500VAC 50Hz five second between frame and (+) terminal
Signal output:FG(Frequency Generator)
Operating temperature: -25 to +60° C
Storage temperature: -40 to + 75 ºC
Operating Humidity: 5% to 90% RH
Storage Humidity: 5% to 95% RH
Test: Drop test, Vibration test, Shock test, Dustproof test, Waterproof test, ROHS
Standards:
LVD EN 60950-1
EMC EN 61000-6-3, EN 61000-4-2 and EN 61000-4-3
| Model | Motor Type | Bearing
System | Rated
Voltage | Operating
Voltage | Rated
Current | Rated Power | Rated
Speed | Air Flow | Air
pressure | Noise
Level |
| Part NO. | Type | B / S | VDC | VDC | A | W | RPM | M3/H | Pa | dBA |
| PA3N180B24H | BE92DC | BALL | 24 | 16~28 | 4 | 96 | 4,550 | 900 | 709 | 68 |
| PA3N180B48H | BE92DC | BALL | 48 | 36~57 | 2.1 | 100 | 4,600 | 925 | 709 | 68 |
PBM Motor and Fan is a China mainland manufacturing and EC technology consulting company offering an extensive range of EC(Electronically Commutated) motors, fans and solutions, Investing in the latest developing, manufacturing and technical equipment with in-depth processes & procedures. We are able to stay at the forefront of EC motor and fan market and offer high quality & economical products, to many of the worldwide leading ventilation & refrigeration Original Equipment Manufacturers.
Our engineers have rich experience in supplying cost effective motor and fan solutions to exceed customer' S expectations. We understand that each customer' S application is different, and by understanding our customer' S needs in site allows us to offer the most cost effective solution.
From 2010, with China motor manufacturing industry was losing its advantage in material and labor cost, PBM Motor and Fan started to offer consulting service to abroad EC motor manufacturers who expected to organize motor assembly in their own countries for EC technology input and cost down.
Protecting our World with Energy Efficient Motor Solutions' Is our goal in an attempt to make tomorrow a greener & healthier world.
Please feel free to contact our Product Support or Sales Department to discuss your application requirements.
