Prod Model: |
EAE-T-S4201 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
TFT |
Application: |
Big-Screen Project |
Aspect Ratio: |
16:9 |
Feature: |
Touch Display |
Screen Size: |
≥28" |
Interface Type: |
DVI |
Product Description
Experienced Manufacturer of Touch Screen in Shenzhen
EAE is located in Shenzhen, China, has specialized in manufacturing and exporting all type of Touch Screen HD TV/All In One PC/All In One TV PC. Resistance Screen, Capacitive Touch Screen, Surface Acoustic Touch Screen, Infrared Touch Screen and other type of touch screen is available. Products have high quality and good performance, and already certified by ISO9001: 2000, CCC, CE. Warmly welcome your inquiry and visit.
1. Screen Size: 15-82 inch
2. Touch Screen Series: Infrared/Capacity/Resistive/Surface Acoustic/Optical
3. Single Touch/Multi-Touch screen
4. SAW Touch Screen: Waterproof, Dust-proof, Vandal-Proof
5. USB /RS232 Port
6. Widely used in Industrial Computer, Lecture Display, Media Class, Conference Show, Exhibition Display, Information Station, Advertisement Broadcast
7. Long Life Time
Industrial control rooms
Vending and ticket sales
Education and training
Performance
Resolution(Interpolation): 4096*4096
Linearity Error: 1.5mm
Response Speed: 16ms
Writing Frequency: 50-80Hz
Right Click: Touch the screen lasting for 3S.
Optical
Light Transmission: ≥ 95%
Resistance to light ability: ≥ 1000CD/m²
Mechanical
Touch Times: No limit
Minium Touch Object: >5mm
Vandal-proof: No break when falling the sample from 1.5M high...
Surface Durability: Surface durability is that of glass, Mohs\' hardness rating of 7
Installation Dimension: According to customer's needs.
Electrical
Working Voltage: Typical +DC 5V, +5V± 0.5V
Interface: USB
Power: <1W, Working Currenct150mA
Operating System: Windows7\Vista\XP
Environmental
Temperature:
Working Temp.: -20 ~85
Storage Temp.: -40 ~85
Humidity
Working Humidity: 0%~90% RH (no dew falls) under 40
Storage Humidity: 0%~90% RH (no dew falls) under 40
Expected Life: 8 years above

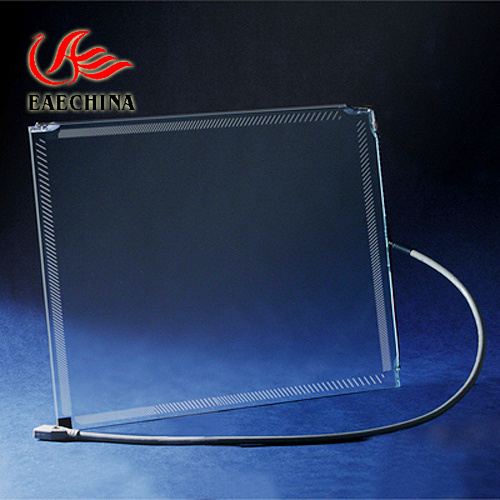

Parameters of SAW Touch Screen: |
|
Type |
SAW Touch Screen |
Size |
42 |
Resolution |
4096 x 4096 Z-axis 256, |
Material |
Electronic Glass |
Position Accuracy |
< 2mm |
Light Transmittance |
> 92% /ASTM |
Touch Strength |
30g |
Single point touch life |
> 50, 000, 000 |
Surface Hardness |
Mohs' 7 |
Multi-touch |
Software Supported |
Working Tempareture |
-20° C to +60° C |
Storage Temperature |
-40° C to +70° C |
Humidity |
10%-90% RH / 40° C |
Work Latitude |
3800m |
Accessories |
Connecting Line, Double Sides Adhesive Tape, Dustexcluder |
Certificates |
CE, FCC, RoHS |
Parameters of Controler |
|
Port |
USB RS232(Optional) |
Size(PCB) |
85mm× 55mm× 10mm |
Working Voltage |
12V± 2V |
Working Current |
80mA |
Maximum Current |
100mA |
Response Time |
≤ 16ms |
Working Tempareture |
0-65 |
Humidity |
10%-90%RH. |
Storage Temperature |
-25-85 |
MTBF |
> 500, 000 hours |
Certificates |
CE, FCC, RoHS |
