| Prod Model: |
EAE-T-I2201 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
CPA (ASV) |
| Application: |
Indoor |
| Aspect Ratio: |
16:9 |
| Feature: |
Touch Display |
| Screen Size: |
20-22" |
| Interface Type: |
HDMI |
Product Description
Specification:
1. Screen Size: 15-82 inch
2. Touch Screen Series: Infrared/Capacity/Resistive/Surface Acoustic/Optical
3. Single Touch/Multi-Touch screen
4. Infrared Touch Screen: Waterproof, Dust-proof, Vandal-Proof
5. USB /RS232 Port
6. Widely used in Industrial Computer, Lecture Display, Media Class, Conference Show, Exhibition Display, Information Station, Advertisement Broadcast
7. Long Life Time

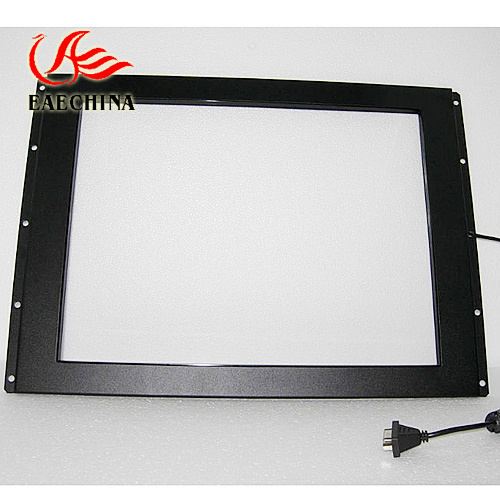

Size: 22"(16: 9)
Main Features:
Excellent stability, drift-free
Ts good anti-interference to current, voltage and static ensure it works well in some harsh environments.
Durability, deep scratch resistance.
Superior image clarity with high light transmission
Application
Gaming, lottery, and amusement
Indoor and outdoor kiosk
ATM
Industrial control rooms
Vending and ticket sales
Education and training
Performance
Resolution(Interpolation): 4096*4096
Linearity Error: 1.5mm
Response Speed: 16ms
Writing Frequency: 50-80Hz
Right Click: Touch the screen lasting for 3S.
Optical
Light Transmission: ≥ 95%
Resistance to light ability: ≥ 1000CD/m²
Mechanical
Touch Times: No limit
Minium Touch Object: >5mm
Vandal-proof: No break when falling the sample from 1.5M high...
Surface Durability: Surface durability is that of glass, Mohs\' hardness rating of 7
Installation Dimension: According to customer's needs.
Electrical
Working Voltage: Typical +DC 5V, +5V± 0.5V
Interface: USB
Power: <1W, Working Currenct150mA
Operating System: Windows7\Vista\XP
Environmental
Temperature:
Working Temp.: -20centigrade ~85centigrade
Storage Temp.: -40centigrade ~85centigrade
Humidity
Working Humidity: 0%~90% RH (no dew falls) under 40centigrade
Storage Humidity: 0%~90% RH (no dew falls) under 40centigrade
Expected Life: 8 years above
