| Prod Model: |
DX88 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Response: |
60Hz-16kHz |
| Working Frequency: |
740MHz-790MHz |
| System Type: |
Dual Handheld Wireless |
| Channel No.: |
250 |
| S/N: |
>105db |
| Working Distance: |
200m |
| Style: |
Handheld Microphone |
| Application: |
Stage Performance |
| Signal Transmission: |
Wireless |
| Directivity: |
Omni-direction |
| Sound Channel: |
Stereo |
| Connector(',s): |
XLR 3 Pin |
| Wireless Technology: |
UHF |
| Transducer Principle: |
True Diversity |
Product Description

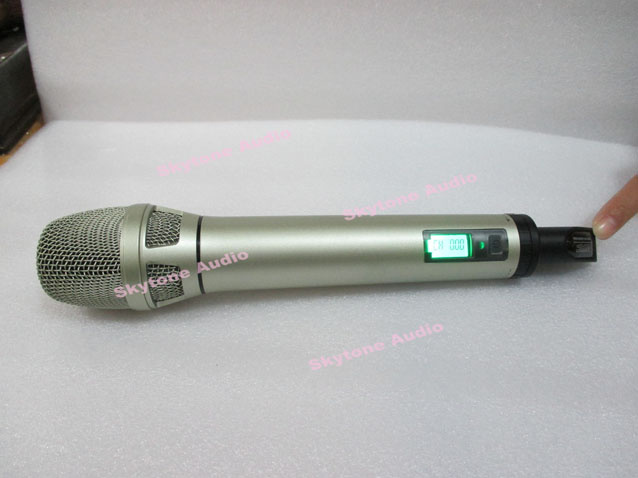

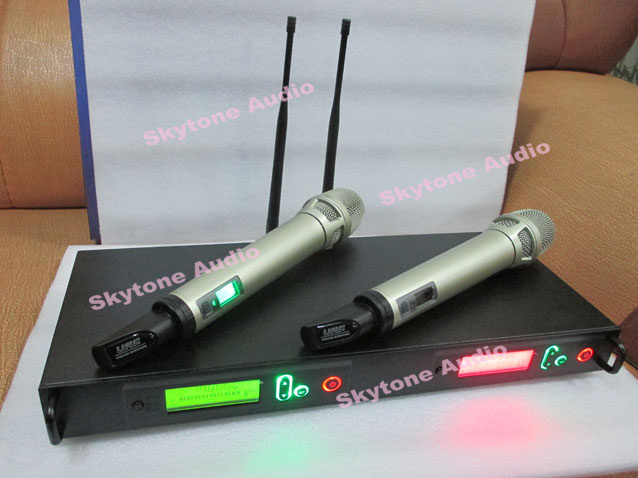

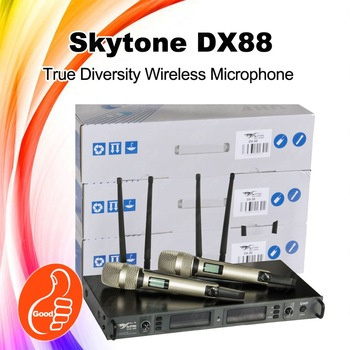

DX88 Dual Handheld Wireless Microphone, professional Stage Performance MicHandheld mics
wireless mics
cordless microphone
wireless system
wireless microphones
audio microphones
professional microphones
dual wireless microphone
Long distance professional performance outdoor microphone specially designed for Live performance,used true diversity design, internal antenna amplifier, can be used for connecting multi machines, which only need 2 antennas. Effective distance can reach 200 meters
With super strong anti-interference ability and wide stable signal receiving and transmitting ability, professional sound reduction techology frequency response reach to 30Hz-18kHz. Intelligent volume compression, to realize large dynamic sound transmission. Low background noise, the sound can be played most vividly even if in complicated environment.
Flexible transmitter frequency and volume setting function. Volume setting used for different models, such as performance, interview,conference ect. Also with advanced automatic frequency locking fuction, which has quick response, can precise lock the required working frequency. Double colors backlight LCD dynamic scren, visual display working status.Function:--Using worldwide advanced DPLL multi channels frequency synthesis technology and noise Automatic control technology (With belt pilot)
--Using UHF 740MHz-790MHz frequency band, to avoid interference frequency
--New energy-saving mode setting, full- automatic EQ control function ,Auto-correction tone, power on & off automatically, automatic IRA system, full- automatic scanning.
--Dual handheld microphones can be singing for 2 person at same time, Invisible antenna
Diversity receiving circuit, Effective distance can reach 200 meters,Ideal distance is 60meters.
--The latest High frequency surface acoustic filter, filtering out-of-band interference signal maximum.
--Dual conversion high frequency circuit , which has extremely high sensitivity
Voice compression extension circuit, which improved S/N greatly, unique voice compressor design, which will not crack voice even singer sing hardly.
--Any of a microphone can be on the frequency with any of a receiver in this system, completely solve the problem which fixed-frequency micropone couldn't used universally. Suitable for several sets items used in same place.
--High fidelity sound, unique interference noice squelch function
--Using audio compression extension technology, reducing the noise ,increasing dynamic range
--Independent output and mixed output, which can connect mixing console and Karaoke amplifier
--Suitable for public speaking and karaoke performances
DX88 Technical specification: |
|
| Working frequency | 740MHz-790MHz |
| Modulation Mode | broadband FM |
| Channel number | 200 |
| Channel interval | 250KHz |
| frequency stability | ±0.005% |
| dynamic range | 100dB |
| Maximum deviation | ±45KHz |
| Frequency Response | 60Hz~16KHz(±3dB) |
| pilot carrier frequency | 32.768kHz |
| Integrated S / N | >105dB |
| Integrated distortion | ≤0.5% |
| Working distance | 200M |
| Working environment temperature | - 10C~50C
|
