| Prod Model: |
DX38 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Carrier Frequency: |
UHF610~920MHz |
| Channel Numbers: |
Dual Channels |
| Power Supply: |
DC 12V~16V 10W |
| Continuous Working Hours: |
12hours |
| Oscillation Mode: |
Pll Integrated Control |
| Working Distance: |
100m |
| Cartridge Type: |
Dynamic |
| Style: |
Handheld Microphone |
| Application: |
Amplify |
| Signal Transmission: |
Wireless |
| Directivity: |
Omni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Differential Type |
| Connector(',s): |
XLR 3 Pin |
| Wireless Technology: |
UHF |
| Output Impedance: |
1000-20000Ω |
Product Description

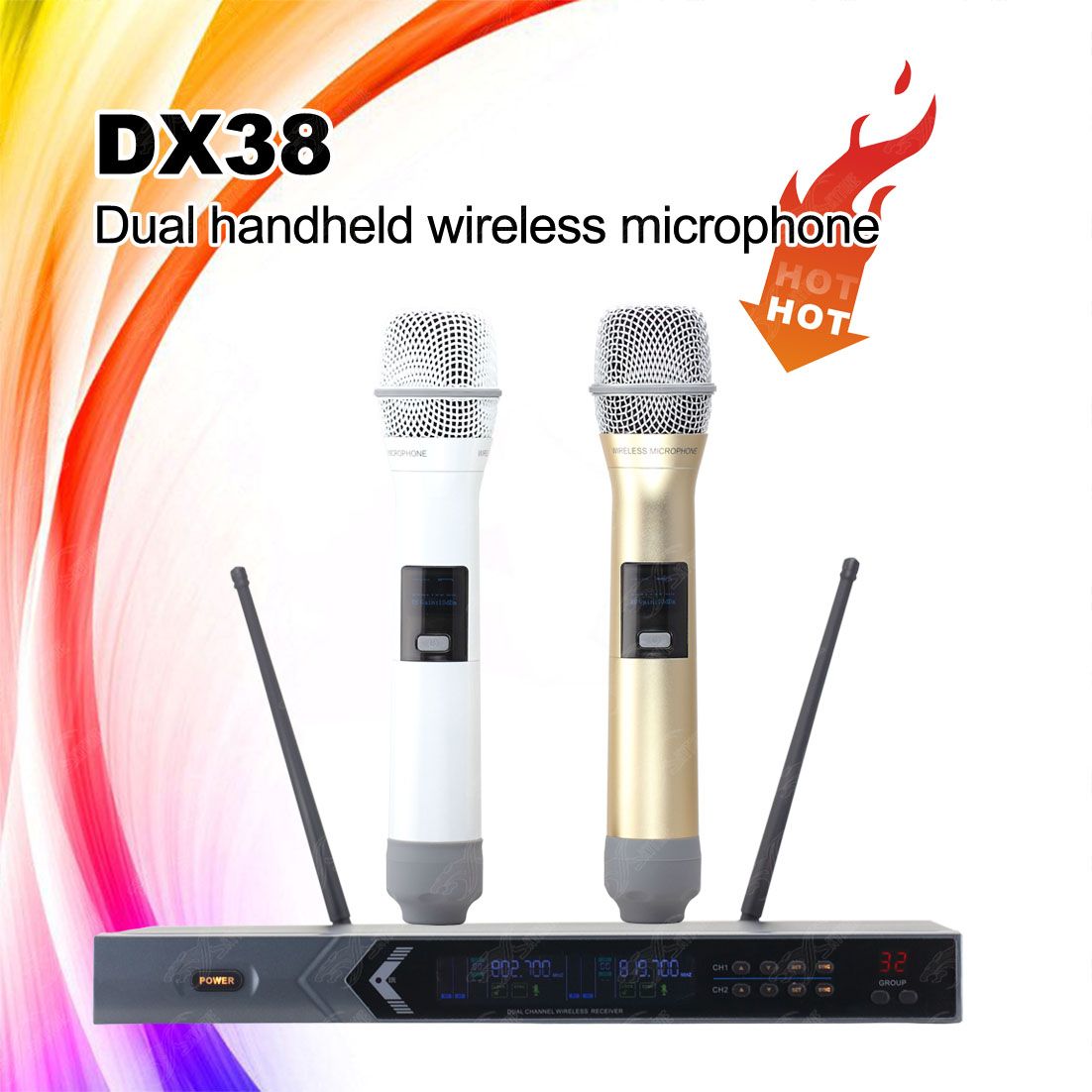

DX38 Pro Karaoke UHF Wireless microphone system
Handheld mics
wireless mics
cordless microphone
wireless system
wireless microphones
audio microphones
professional microphones
dual wireless microphone
UHF karaoke microphone
Features:
Using New designed EIA international standard 1U metal case.
LCD display, display working channels or frequency,RF AF signal strength at real-time. Transimitter batteries are convenience for debugging and testing.
Super wide frequency(UHF 610~920MHz), selecting frequency automatic, Infrared automatic frequency fuction, transimitter can be locked the preset channel of receiver exactly once press SYNC.
Stable PLL oscillation circuit, matched with noise detection, mute control fuctions, which can prevent noisy from computer, song machine, DVD ect.
Dual channels presrt 32 groups noninterference frequency points, total 4 channels frequency range which provide 128 groups frequency points for users selection.
120MHz wide frequency transimitter, 4 different frequencies machines can be mutual used optional, which convenience for adjustment and management.
Organizing into groups quickly, multi machines can be used at the same time, easy setup.
Working distance: 100M(Open space)
| DX38 Specification | |
| Receiver Specification | |
| Carrier frequency | UHF610~920MHz |
| Channel numbers | dual channels |
| Modulation Mode | FM |
| Oscillation mode | PLL integrated control |
| Sensitivity | Input 6 DBV at Rotation Degree equal to 25KHz, S/N > 60 db |
| Bandwidth | 30 MHz |
| Maximum deviation | ±45KHz |
| Integrated S / N | >105dB |
| Integrated T.H.D | <0.7% 1khz="" br="" |
| Integrated Frequency Response | 45HZ~18KHZ +-3dB |
| Power supply | DC 12V~16V 10W |
| Output connector | XLR balance and Jack unbalance |
| Working distance | 100M |
| Handheld transmitter Specification | |
| Carrier frequency | UHF610~920MHz |
| Oscillation mode | PLL integrated control |
| Harmonic Radiation | <-65dbm |
| Maximum deviation | ±45KHz |
| Bandwidth | 120 MHz |
| Cartridge type | dynamic |
| RF output power | 15MW |
| Battery | AA x 2 |
| Power consumption | <90ma |
| continuous working hours | 12hours |
| Bodypack transmitter Specification | |
| Carrier frequency | UHF610~920MHz |
| Oscillation mode | PLL integrated control |
| Harmonic Radiation | <-65dbm |
| Maximum deviation | ±45KHz |
| Bandwidth | 120 MHz |
| Cartridge type | condenser |
| RF output power | 15MW |
| Battery | AA x 1 |
| Power consumption | <90ma |
| continuous working hours | 12hours |
You can order aluminum case as below details:
1 aluminum case can fill in 2sets of single channel receiver microphone, and fill 1 sets of dual channel receiver microphone.
