| Prod Model: |
DW-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
2-Way Full Range PRO Audio |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Lf Component: |
NdFeB 110mm Magnet with Aluminum Frame |
| Hf Component: |
B&C 120mm Magnet |
| Size Options: |
10", 12" |
| Installing: |
Hanging, Pole Mount, Stand, Lying Down |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Entertainment Venue |
| Certification: |
CCC |
| Noise: |
Nun |
| Monitor: |
Nun |
| THD: |
<0.05% |
Product Description
Features:a. Bass reflex design on the back;
b. Imported multilayer birch plywood;
c. Reinforcing wood bar inside;
d. B&C HF loudspeaker
e. Nd-Fe-B LF loudspeaker;
f. Wide frequency, rich and strong bass, mellow and thick alto.
1.Description:DW-10 is a two-way full-range speaker designed specifically for high-end clubs. The box uses a bass reflex design on the back, we apply several sheets of imported multilayer birch plywood. To enhance its stability and decrease the resonance, reinforcing wood bars are applied inside.
DW-10 is equipped with a 10" LF Nd-Fe-B precise driver and a 1" B&C HF precise compression driver. When you use it, you will feel a a wide frequency. Also, you can feel a deep, rich and strong bass and a mellow alto.
2. Application:
It can be used as a PA Speaker in night club.
3. Technical data:Model | Dw-10 Single 10 Inches 2-Way Neodymium Woofer Karaoke |
Drivers | LF: 1×10"voice-coil: 2" |
HF: 1×1"voice-coil: 1.7" |
Frequency(±3dB) | 50HZ-20KHZ(±3dB) |
Dispersion(-6dB) | Hor:90° × Vert:60° |
Sensitivity(1m/1W) | 97dB |
Maximum SPL | 122dB Continuous/128dB Peak |
Nominal Impedance | 8 Ohms |
Input power | Rate: 250W/Peak: 1000W |
Recommend AMP | 600W to 1000W into 8 Ohms |
Connectors | 2 × Speakon NL4MP |
Dimensions | 525 × 300 × 350mm (H × W × D) |
Master carton | 595 × 360 × 400 (H × W × D) |
Net Weight | 16Kg |
Gross Weight | 18.5Kg |
4. Frequency response:
5. Construction:| Physical | Polygonal |
| Enclosure | Imported multilayer birch plywood |
| Grille | Die-casting steel net with circular hole, black sponge inside |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | M8 screw of installation holes (18 pcs) |
| Pole Mount | Bottom: Φ35mm support base |
6. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. Please kindly keep it away from dust and the strong magnetic field.
c. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.

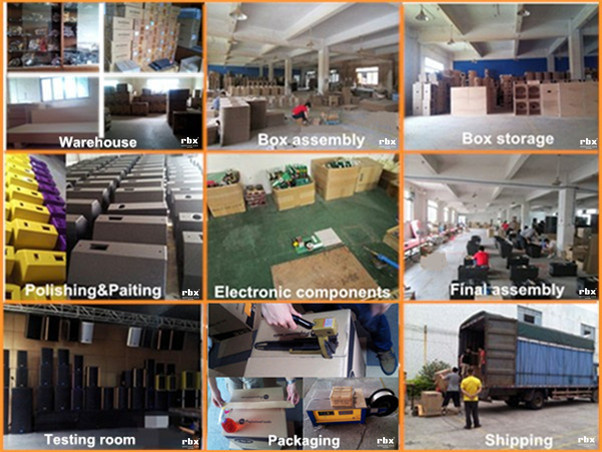

7. Comapny View:
8. Our projects:
10 Reasons to choose us!1. Full product line & One-stop service can meet all your need.2. All products are designed by our development team according to the market trends.3. All products & material pass quality-oriented inspection.4. Abundant supply ability, Monthly production capacity is above 2000pcs.5. Every client's information will be protected.6. KEY account management, such as special discount and protection of sales area.7. Fast delivery.8. 3 years warranty.9. Prompt solution can be provided to you by our professional engineers and staffs.10. Excellent prompt 24 hours on-line service. (pre-sale Service, Middle-sale Service & after-sale service.) FAQ:1. Who are you?RE: Guangzhou Tengsheng Audio Equipment Co., Ltd. covers an area of 5,000 square meters. We've been devoting ourselves to the R&D, manufacturing and marketing of high-quality professional audio system for over 10 years. 2. What's your main product lines? RE: Line Array, PA system, Stage Monitor, Subwoofer, Home Theater, Karaoke Speaker, Power Amplifier & Processor 3. Do you support OEM service?RE: OEM/ODM service are available. 4. What is the MOQ?RE: MOQ is 1 piece. 5. What kind of payments does rbx support?RE: T/T, L/C, Western Union, Paypal, Money Gram, Cash are acceptable. 6. How about the delivery time?RE: 3-7 days for trial order.15 days or more for quantity order since receipt of 30% T/T deposit payment. 7. Do you support spare parts?RE: Yes, 1% free spare parts are sent together with every shipment. Ordering Steps:1. Please kindly browse our site:
www.rbxaudio.com, and find attractive products. 3. We'll reply the inquiry during your regular business hours, inquiries are normally answered within 2-10 hours, whatever on week days or weekends.4. Once you ready to place your order, in order to prepare and process your order, please kindly arrange 30% as deposit in advance and 70% balance before shipping.5. T/T, L/C, Western Union, Paypal, Money Gram, Cash are acceptable. Please kindly send us the copy of bank slip by e-mail. Orders will be arranged to production once our finance dept receive payment.6. We'll give you regular status reports, ensure delivery time and arrange freight forwarding, oversee packing and loading of cargo.7. We'll inform you when your order is finished and ready to be shipped. Then you need to arrange the balance.8. Sea cargo & air cargo are acceptable.9. We'll send you the copy of shipping bill & follow the shipping.10. We'll keep in touch with you & response to your ANY Feedback.Contact details:Contact: Alice YuanTelephone: +86-20-36564911Mobile: +86 13924060239Fax: +86-20-36564812Homepages: www.rbxaudio.comFactory Audit are welcome. Should ANY QUERY, Just Call Alice.
Guangzhou Tengsheng Audio Equipment Co., Ltd. is located in Baiyun District, Guangzhou City, covers an area of 5, 000 square meters. Our company is closed to GUANGZHOU BAIYUN Airport, the transportation is convenient. We've been devoteing ourselves to the R&D, manufacturing and marketing of high-quality professional audio system.
During the passed years, We've owned a team of highly qualified engineers and sales. We've been always developing new products according to the market trends and the feedback from our clients, which gain much praise and trust. Besides products, we provide audio system solution also. We always take the pursuit of win-win situation between our clients and us.
Our company owns a serial of automated production equipments and quality management system basing on international standards, both of these help us to keep making progress. Excellent quality dates from pursuit of every aspect, and, customer satisfaction comes from sincere service. We'll listen to the voice of the world, and create perfect audio system.
