| Prod Model: |
UTL-4B17D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Description:

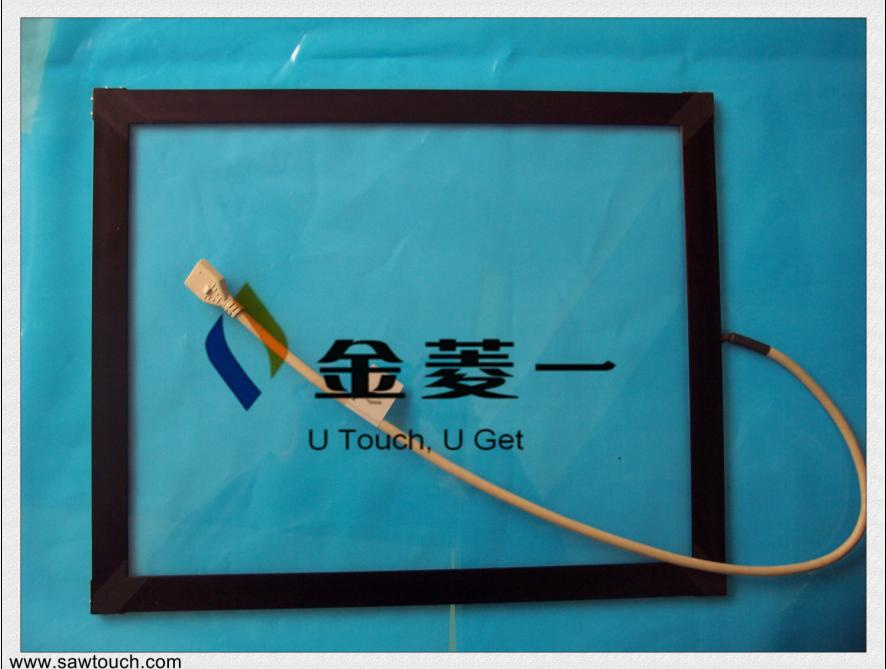

This type of touch screens are specially designed to make SAW touch screen integration easier to completely prevent dust from accumulating in area that can affect SAW touch screen performance.
UTOUCH SAW touch screen technology is suggested for use in ATMs, Amusement Parks, Banking and Financial Applications, Gaming Environments, Industrial Control Rooms, and KIOSK. It has excellent durability that allows it to continue working if scratched since the overlay for the touch sensor is a solid glass display. SAW offers superior image clarity, resolution, and high light transmission. We also supply SAW touch screen with Dust-proof, Vandal-proot, Water-proof, Anti-glare.
Benefits:
* Pure glass touch screen with superior image clarity, high resolution, high light transmission ratio.
* Durable, scratch-resistant glass surface, work in order even scratched.
* Good stableness without drift, automatic correction, accurate operation.
* Long service life, over 50 million touch times in one location without failure.
Applications:
*Kiosk in high-threat environments
*Ticketing machines
*Gaming machines
*Post-Of-Sales
*Post-Of-Information
|
Specifications |
|
Touch Technology |
Surface Acoustic Wave(SAW) Touch Technology |
|
A. Mechanical |
|
Input Method |
Finger, gloved hand |
|
Available Size |
8.4”-32” |
|
B. Electrical |
|
Positional Accuracy |
Standard deviation of error is less than 0.080 in.(2mm) |
|
Resolution |
Touchpoint density is based on controller resolution of 4096x4096; Plus 255 levels corresponding to touch pressure. |
|
Touch Activation Force |
Typically 100g |
|
Controller |
Serial (RS232) or USB |
|
C. Optical |
|
Light Transmission |
Up to 98% |
|
D. Environmental |
|
Temperature |
Operating: - 20°C to 50°C; Storage: -40°C to 71°C |
|
Relative Humidity |
Operating: 4 0°C at 10%~90% RH. Non-condensing |
|
Altitude |
3000M |
|
Chemical Resistance |
The touch active area of the touch screen is resistant to chemicals that do not affect glass, such as: acetone, toluene, methyl ethyl ketone, isopropyl alcohol, methyl alcohol, ethyl acetate, ammonia-based glass cleaners, gasoline, kerosene, vinegar. |
|
Electrostatic Protection |
Per EN 61000-4-2. 1995: Meets level 4(15kV air/8kV contact discharges) |
|
Sealability |
Can be sealed to meet NEMA 3/3R/5/12/12K/13.IP64 standards |
|
E. Durability |
|
Surface Durability |
Surface durability is that of glass. Mohs’ hardness rating of 7 |
|
Expected life |
No known wear-out mechanism, as there are no layers, coatings or moving parts. Utouch technology has been operationally tested to more than 50 million touches in one location without failure, using a stylus similar to a finger. |
|
Warranty |
1 year |
|
Agency Approvals |
CE, FCC |
Since our foundation in 1999 and branded in "UTouch", Beijing IT01 Co., Ltd. Is a professional manufacturer focusing on researching and producing SAW (Surface acoustic wave) touch screen, touch monitor, touch kiosk and AD player (for building and car)with our own patent. We offer the largest selection of touch screen technologies, SAW touch screen, touch monitor and carefully design each product for the demanding requirements of diverse applications, such as industrial, medical, POS, kiosks, retail, hospitality, transportation, office automation, and gaming.
We are located in Beijing Zhongguancun High-tech Development zone, with such an advantageous technical and human resources, among the 20 R&D personnel, 95 percent have achieved a bachelor's degrees and even higher. Experienced electronic engineers and specialist technical personnel guarantee the technical services.
Up to now, we have expanded our product line with a series of new applications: Safe Touch, Dust proof, Kiosk Touch, Bevel Touch, and integrated touch monitors. We were granted ISO9001 and CE, FCC certifications. Our products had been sold to many countries all over the world such as Korea, Russia, Egypt, KSA, Ireland, Netherland.
Due to perfect cooperation with the customers from domestic and abroad, and hard working of all staffs, Beijing IT01 Co., Ltd has been growing by leaps and bounds. We would like to extend our warmest invitation to all overseas and mainland customers who want to pay a visit, provide suggestions or seek business co-operation.
