| Prod Model: |
p25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lifespan: |
100,000hours |
| Warranty: |
2 Years |
| Factory Price: |
Available |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
CCC |
| Pixel Configuration: |
1R,1G,1B |
| Application: |
Shopping Guide |
| System Operating Platform: |
WIN XP |
| Pixel Pitch: |
25mm |
| Pixel Density: |
1600 Sq.M |
| IP Rating: |
IP65 |
Product Description

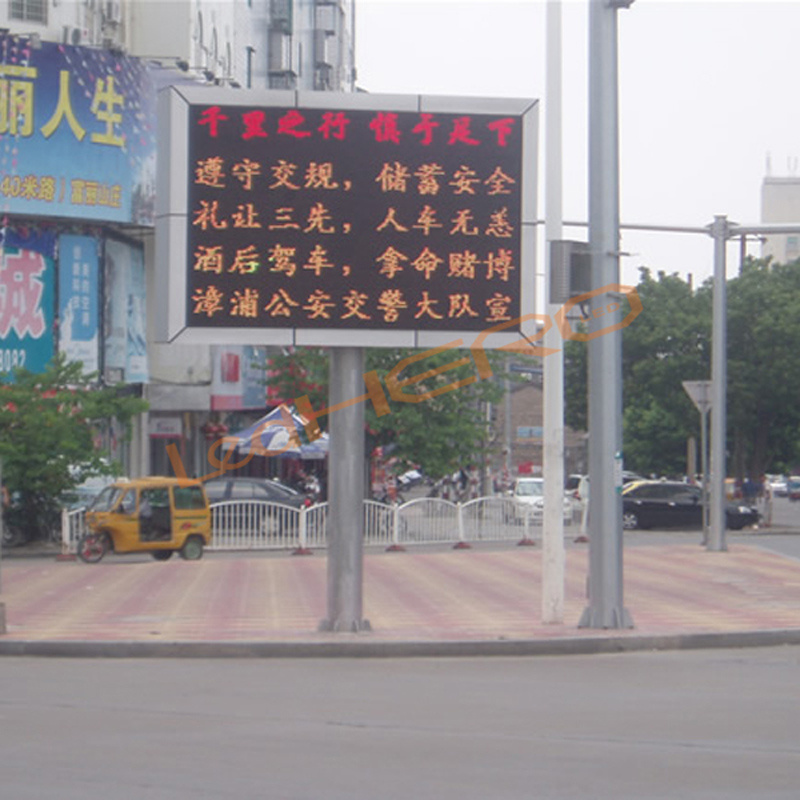

durabled led traffic screen display p25
1. large viewing angle
2. Light weight
3, CE & ROHS Certificates
4.long lifespan
Specification
Driving Method |
static scan, Constant Current |
Cabinet Weight |
42kg/sq.m. |
Mechanical Ratings |
Hanging Weight Support |
2T |
Surface Flatness |
Gap<0.5mm |
Optical Ratings |
Brightness |
>8500cd/ m2 |
View Angle |
150°/150° |
Gray Scale |
8bits input, correction with 14bits |
Display COLOR |
16.7M |
Brightness Adjustment |
0~100% |
Power Supply |
Operation Power |
90~260V 50~60Hz |
Max. Power Consumption |
600W/ m2 |
Average Power Consumption |
200W/ m2 |
Control System |
Control Mode |
Synchronous display with control PC by DVI |
Frame Update Frequency |
60~85Hz |
Screen Refresh Frequency |
300~1000Hz |
Gamma Correction |
-5.0~+5.0 |
Support Input |
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
Control Distance |
Ethernet cable<120m or Fiber Optic<10Km |
Support VGA Mode |
1024×768, 1280×1024, 1600×1200, 1920×1280 |
Brightness Correction |
Pixel, Module, Cabinet |
Environmental |
Operating Temperature |
-40°~+60° |
Operating Humidity |
10~95% RH |
Operating Life |
100,000hours |
MTBF |
5000hours |
Protection Level |
~ |
Out of Control Rate |
<0.02% |
Packing and transportation
Environmental carton, plywood case, flight case USE professional packaging.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Stout box eliminate your worries in the transportation.
About HERO
7-year's experience in LED screen, our factory
has the ability of processing, researching and developing Led display to guarantee the prolificacy, strict quality control process to make sure that our led display is qualified.
Warranty
1. If the size is large, we usually require customers or dealers to send someone to learn for a week, including screen operation, maintenance. Company training and accommodation are free of charge.
2. If the size of outdoor full color led screen is more than 20 square meters , it must have all accessories.
3. Response within 2 hours, non-artificial, general fault is solved within 24 hours, acceptable failure will be solved within 48 hours.
Shenzhen LED-HERO Electronic Telechnology Co., Ltd was found in early 2007. Hero committed to the next generation of LED optoelectronic products development, production, sales and service. It is leading the trend of LED industry and providing a full range of solutions to its customers. It has become a modern, large scale, professional LED Photoelectric comprehensive product integration supplier. The products sell well in over 50 countries and regions in Europe, America and Middle East, besides more than 20 provinces across China.
"Hero' S products and solutions include various of indoor and outdoor LED display screen and lighting products with its advanced technology, superior technology design, personalized design elements, large-scale production capacity and diversified cooperation strategy to provide full LED integrated solutions.
"Beat by wisdom, win in morals"is still our insistent faith, Quality is the life of a company. From material purchasing to product researching, development, production, testing, packaging and shipment, Hero abides ISO9001: 2000 international quality control process to make strict control and scientific management, and to achieve perfection. The products have passed the RoHS, CCC, CE and other international quality certification which ensure that each product are stable, reliable, environmental protective.
Excellent talent is the soul. Hero relies on the humanized management, promoting hero culture, exerting employees to have masters spirit. It has established a systematized, specialized production procedure. And it has built a strategic alliance with LED raw materials suppliers and vendors which has realized the resource sharing, division, cooperation, mutual complementarities and high-efficient operation for providing an effective guarantee to Hero' S scale production and diamond quality.
To select Hero, you will win the promise of a hero!
