| Prod Model: |
FY016 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material For The Motor: |
Nylon |
| Transformer: |
Enamelled Wire |
| Certification: |
Ce,RoHS,SAA |
| Brand: |
JDR |
Product Description

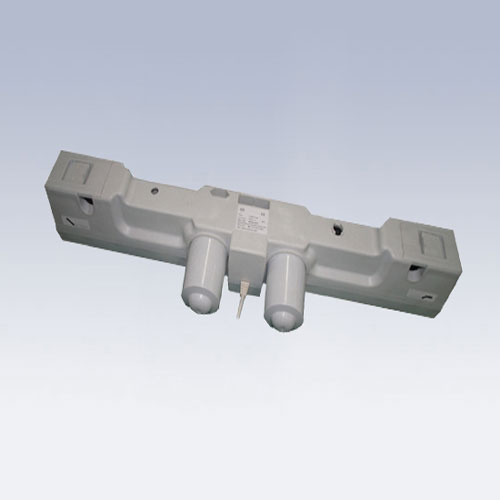

CE Dual Actuator:
1)Two motors driving
2)Inner limit switch
3)Overload protection
4)Emergency function
Dual Actuator with emergency function under no power
Features
1. This dual actuator can return to its close status when the power fails suddenly
2. Dual motor is a perfect motorized system for the adjustment of patient bed and healthcare bed
3. The characteristics of this actuator are easy intallation and free operation
4. It is advanced on the base of single actuator
5. Customers can adjust the back or foot individually or jointly, depending on personal requirement
Specifications
1. 24V DC twin drive
2. Max Pushing force: 2x4500N
3. Standard stroke 87-69/87-87/69-69, other strokes are on request
4. Max pushing speed 4.3mm/s
5. Power supply: 100-110v/220-240v
6. Duty cycle: 2/18 mints. 10%
7. Installation dimension: 581mm + 2mm
8. Protection Class: IP22
9. Ambient temperature: -5 to 40
10. Color: Black or White
11. Built-in limit switch, not adjustable after leaving the factory
12. With overload protection function
13. With emergency function under the sudden power failure
14. Strong intensify plastic housing protects motor and gear
15. Low noise design, db < 48 (A)
16. Connectivity: 1 handset or 1 handset & two single actuators
