| Prod Model: |
HZKT-007 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |

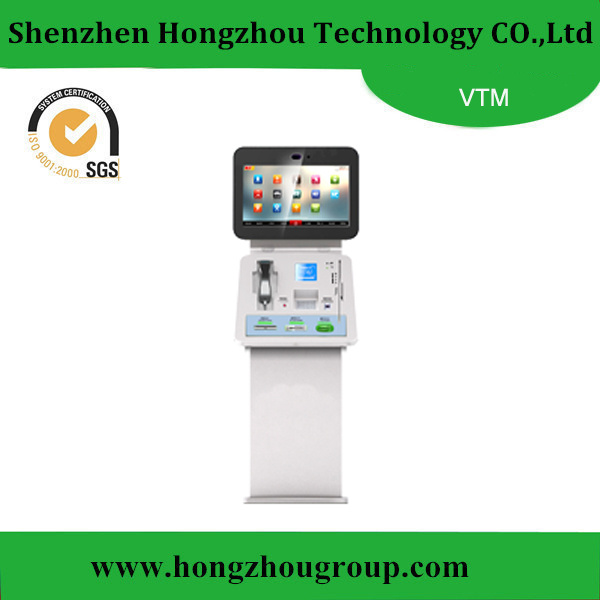

Self-Service Kiosk |
| Currency Detector Type: |
Laser Detector |
| Queue System Usage: |
Indoor |
| Queue System Type: |
Information Release |
| Data Collector Signal Transmission: |
Wired |
| Material: |
Cold-Rolled Steel Sheet |
| Supported OS: |
Windowsxp/Windows7/Windows8 |
| Power Supply: |
110V/220V |
| Queue System Display Function: |
Animation |
| Data Collector Type: |
Industrial Data Acquisition |
| Screen Size: |
15-20 Inches |
| Aspect Ratio: |
4:3 |
| Application: |
Financial Services System |
| Screen Type: |
Capacitive |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
Customized |
Product Description
1). Functionalities:
Card issuing service: Handling debit card, credit card.
Contract service: SMS, mobile bank, etc E-banking contract signing. U-key issuing.
Financing transaction service: Insurance/ fund purchase, personal loan. withdrawal, deposit, transfer, pin change.
Enterprise service: Inquiry, receipt printing, bill service.
Others: Bill payment, service inquiry, etc.
2). Specifications
| User-interface |
Touch panel: 21.5" capacitive multi touch display
Video display: 21.5" HD LCD display |
Motorized hybrid card issuer and reader |
Support magnetic/smart card issuing and reading
Support up to 3 issuing card boxes, card box with lock, separate card retract box
EMV, PCI certificated |
Cash Recycling System (optional) |
Dispensing/deposit speed: 8 notes per second
2-5 cassettes
4 recycling cassettes and 1 reject/deposit box (optional)
1 deposit cassette, up to 2300 new notes per cassette (optional)
up to 2700/2850 (optional) new notes per recycling cassette
Accepts up to 200 new notes per transaction |
Control Unit |
Industrial control computer
Core I3 series CPU, 3.4G, 2G RAM
500G HDD, DVD ROM (optional)
Operating system: Windows 7 |
Printer |
Receipt printer: 76mm thermal graphic printer
Journal printer: 76mm dot matrix or thermal printer |
Card scanner | 2D RFID ID card readable, double-sided scanning |
| Ukey issuer | Supporting U-key scanning, issuing and retract etc. |
| Barcode reader | Supporting ID and 2D code |
| Contactless card reader | Support contactless reading magnetic and IC card data, NFC APP extendable |
| High-speed photographic apparatus | 24 bit color scanning, supporting A4 paper passport, ID and etc. files scanning |
| File recycling device | Retrieving files, slot supporting A4 paper size |
| Electronic signature pen | Specially for electronic signature |
| Printing and stamp | Printing and stamp device, supporting A4 size file to be entity stamped after print |
| Security |
EPP keypad
UL291 Standard level 1
Dial combination lock mechanism
Built-in cameras (1080P, 1290*1080pixels) |
Receipt printer (optional) | Needle invoice printer, 4lines/s, supporting ASCII, supporting black label paper cutting |
| Passbook printer (optional) |
Compatible with multiple magnetic stripe formats, supporting
English, Chinese etc. all kinds of fonts, font size adjustable, 350 characters/s |
Biological (optional) | Fingerprint optional, supporting fingerprint collect, identify and storage |
| Telephone (Optional) | Telephone |
| DVR (Optional) | Digital video recorder |
| Heat booster (Optional) | Heat booster |
| Operating Environment |
Voltage: 100V-240V AC, 50/60Hz
Temperature: 0oC to 40oC ( without heat booster)
-35oC to 40oC (with heat booster)
Humidity: 20% to 95% Non-condensing |
Dimensions |
Dimension with enterprise service: 1630mm X1600mm X1200mm (Hx W x D)
Dimension without enterprise service: 1630mm X1150mm X1200mm (H x W x D) |
