| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Telephone |
| Support Network: |
Router |
| Type: |
Wireless |
Product Description

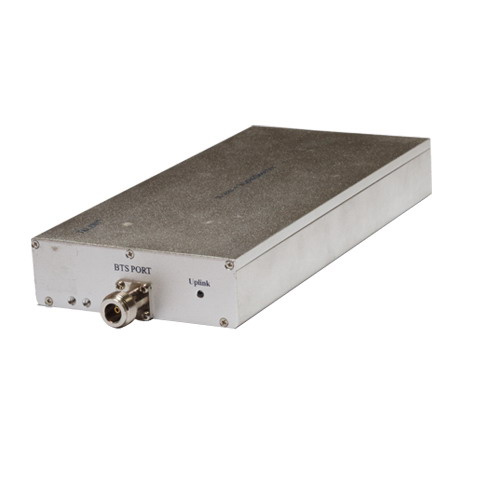

Dual band PICO repeater:
Sky PFM provide dual band PICO repeater, It can effectively expand coverage for confined small area with lowest cost, avoid cell RF inference and improves signal level. Due to its small size, dual band Pico Series are particularly designed for indoor coverage systems in small buildings, SOHO offices, supermarket, apartment etc. It is easy to install so as to save engineering and construction costs. It can solve network coverage problems within shortest time.
Main Features
Lightweight design
User friendliness
Low cost for signal coverage
Easy installation
Compact design
Low interference
Auto level control function
Application Area:
Confined areas such as hospital, marketplace, recreation area, KTV, underground, office, living room, conference room, electric elevator, parking lot...
Technical Specification of GSM900+GSM1800 Repeater
Specification Uplink Downlink
Frequency Range GSM: 890-915MHz
DCS: 1710-1785MHz GSM: 935-960MHz
DCS: 1805-1880MHz
Max output power 7dBm/10dBm/13dBm/15dBm/17dBm/20dBm
Maximum Gain ≥ 55dB
Spurious Emission ≤ -30dBm/1MHz
Delay ≤ 5 microseconds
Gain Flatness ≤ 2dB/3.84MHz
Power Consumption ≤ 15W
Dimensions (H*W*D) 32*25*6.5cm
Weight 2.0kg
This is our normal specification of GSM900+GSM1800 dual band PICO repeater, other series(GSM900+WCDMA, CDMA800+CDMA1900, ) Specification are available upon request.
Sky PFM Limited specializes in manufacturing, developing, exporting communication equipments for more than ten years. We can provide communication equipments with high quality, most competitive price and best service, our product series including the following series:
1. Repeater: GSM, CDMA, dcs, PCS, phs, gota, gt800, iden, GSM, WCDMA, wimax, WLAN, scdma, TD-SCDMA, pico repeater.
2. Antenna: Yagi antenna, panel antenna, ceiling antenna, parabolic antenna, car antenna
3. Radio: Digital radio, analog radio, dmr radio
4. Module: Fiber optic module
Welcome to contact us for further information in detail!
