| Prod Model: |
L-8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Series: |
Line Array |
| Speaker System: |
2.0 Channel |
| Application: |
Commercial |
| Operation Mode: |
Wire / Remote Control |
| Hi-Fi: |
Hi-Fi |
| Speaker Material: |
Wood |
| THD: |
<0.005% |
| Noise: |
<95dB |
| Certification: |
SGS,ISO9000:2008 |
Product Description

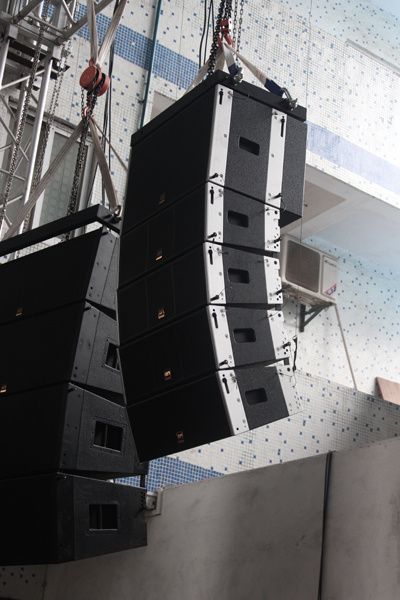

dual 8" 300w wooden professional line array loudspeaker
1. Beautiful out-shape with imported high-intensity plywood and waterproof abrasion-resistant painting.
2. Voice coil is made from a world-famous material more resistant to high temperatures.
3. Crossover with enthusiast Capacitance.
4. Low frequency with clear voice and powerful penetration.
5. Suitable for multi-functional hall, church, school, stadium and small type indoor and outdoor performance, etc.
| Model | L-5 | L-8 | L-10 | L-12 | L-5A | L-8A |
| System | 2-WAY Full Range | 3-WAY Full Range | SUB BASS |
| Frequency response | 120Hz-18KHz | 120Hz-18KHz | 45Hz-18KHz | 40Hz-18KHz | 55Hz-400Hz |
| Driver | LF:5"*2
HF:1.5"*1 | LF:8"*2
HF:2"*1 | LF:10"*2
HF:3"*1 | LF:12"*2
MF:6"*4
HF:2"*2 | LF:12"*1 | LF:15"*1 |
| Nomina Limpendance | 16ohm | 8ohm | 8ohm | 8ohm |
| System Sensitivity | 90dB | 95dB | 97dB | 100dB | 97dB | 100dB |
| Rated power | 100W | 300W | 600W | 1000W | 400W | 500W |
| Peak Power | 400W | 1200W | 2400W | 4000W | 1600W | 2000W |
| Maximum SPL | 116dB | 126dB | 131dB | 136dB | 129dB | 133dB |
| Crossover mode | Inside
crossovers | Inside crossovers/
External divider | Inside crossovers | Inside Crossovers | Inside crossovers/
External divider |
| Suspension | Linear Suspension |
| Net weight | 10.5KG | 22.3KG | 41.7KG | 67.5KG |
| 42.8KG |
| Size | 570W*222D*195H | 750W*370D*265H | 900W*505D*370H | 1125W*563D*425H |
| 750W*501D*470H |
Sample and freight
One sample is avaivble for testing in the first cooretation, however, the freight will be collected from your account by curriers. (usally it will be carrier by DHL )
Trade item
FOB, EXW, C&F.
Lead time:
1day to7days
Payment item
L/C, T/T, CASH
THE REASON TO WORK WITH US
1. Focus on details
2. Full line pro audio one- stop sevice
3. Well quality control and guarantee free spare parts
4. Customized design is available. OEM/ODM are welcome
5. Unique and fashionable design, your idea we create.
About our company
Established in 2005,Guangzhou Yunqiang Electronic Co.ltd specializes in R&D,design,production and marketing of professional speaker,professional power amplifiers,karaoke speakers and amplifier etc.Backed by high technology and staffed with a professional R&D team and QC team,the factory introduces some advanced electronic testing equipments from Japan,taiwan,ect.Combined with advanced processing lines.Exported to the Asia,Middle East,Europe,Amercia,Africa,etc.Our products enjoy high reputation and meet the demand of the market with the high quality and reasonable price.
Our Main product:
Professional speaker,Line array speaker,subwoofer,professional amplifier,karaoke speaker,karaoke amplifier,Pre-amplifier and peripheral equipment.
Our location:
Our factory located in Longhu village,Shijing Road,Baiyun district,Guangzhou city,Guangdong Province,China.
About Acessories:
We will send you the enough connectors and some other spare parts for you free.
Packaging:
1)Dual carton with Foam
2)Carton with external plywood bracket for Speaker
Our Main product:
Professional speaker,Line array speaker,subwoofer,professional amplifier,karaoke speaker,karaoke amplifier,Pre-amplifier and peripheral equipment.
Our company advantages:
We have passed ISO9001: 2008 , also we have passed CE, CCC, FCC, ROHS, CE-LVD and so on.
2)We are a factory which has 6400 square metres.
3)We can design the amplifier and speaker by our clients.
4)fast delivery and excellent aftersale service
5)We have five rich-experienced engineers.if you need any accoustic suggestion for your sound system project,just feels free to contact me.
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
