| Prod Model: |
BV1300 |
| Markets: |
North America,Western Europe |
| BV1300: |
2X1300W at 8 Ohm Stereo, 1u Digital Power Amplifie |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Voltage: |
AC 220V |
| Used For: |
Professional |
| Conductive Mode: |
D |
| Tube Type: |
IC Amplifier |
| Sound Channel: |
2.1 |
Product Description

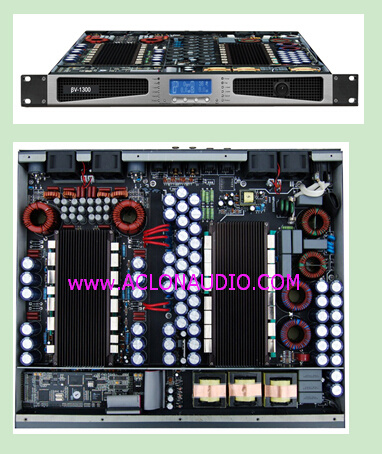

DSP+LCD 2X1300Wdigital amplifier, 1U lightweight
Light weight only 9KG,
It can be used for church, concert, nightclub, stadium, theater, speech, road show etc.
Switching amplifier BV series is big power amplifier, good quality, high stability, less heat, big power output.
| Digital LCD+DSP amplifier-Beta V series |
| Product Model | βV-1300 |
| Rated Output Power 8ohm(EIAJ THD=1%,1kHz) | 2x1300W |
| Rated Output Power 4ohm(EIAJ THD=1%,1kHz) | 2x2300 |
| Rated Output Power 2ohm(EIAJ THD=1%,1kHz) | 2x4000 |
| Maximum bridged output power 16ohm(EIAJ THD=1%,1kHz) | 2600 |
| Maximum bridged output power 8ohm(EIAJ THD=1%,1kHz) | 4600 |
| Maximum bridged output power 4ohm(EIAJ THD=1%,1kHz) | 8000 |
| Maximum RMS voltage swing(THD=1%,1kHz) | 101 |
| voltage gain(dB) | 39.0 |
| Slew Rate(at 1kHz,LPF bypassed) | 50V/us |
| Input Sensitivity(at rated output power or voltage ,1kHz) | 1Vrms |
| THD+N (10% rated power,typical) | 0.05% |
| IMD-SMPTE (10% rated power,typical) | 0.05% |
| DIM30 (10% rated power,typical) | 0.05% |
| Crosstalk (1kHz,typical) | -75 |
| Frequency Response(10% rated power,8Ω) | 0~-2 |
| Input impedance(balanced) | 20K |
| Damping Factor (100Hz,8Ω) | ≥500 |
| Signal to Noise ratio(A weighted,20Hz-20kHz) | ≥105 |
| Protection | amplifier output DC protection, High frequency protection,
Harmonic protection ,over temperature protection, overload protection |
| LCD+DSP fuction | LCD on the front panel+DSP fuction |
| Power supply | AC:100-240V(50-60Hz) |
| Dimensions(WxDxH,mm) | 483*370*44 |
| Net Weight (KG) | 9 |
