| Prod Model: |
DS-1350 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
2-Way Full Range PRO Audio |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Lf Component: |
190mm Magnet with Aluminum Frame |
| Hf Component: |
120mm Magnet |
| Size Options: |
12", 15" |
| Installing: |
Hanging, Pole Mount, Stand, Lying Down |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Amplification Type: |
Passive |
| Speaker Material: |
Wood |
| Usage: |
Karaoke |
| Structure: |
Closed Enclosure |
| SNR: |
91-100dB |
| Adjusting Method: |
DMX Control |
| Sound Channel: |
Single Channel |
| Function: |
DMX Control |
Product Description
Features:
a. Compact polygonal design;
b. Imported multilayer birch plywood;
c. High-quality durable polyesterimide paint;
d. Perfect performance of voice restoration.
e. Booming, strong, full and clean bass, full alto, clean, pleasant, delicate and euphonic treble.
1.Description:

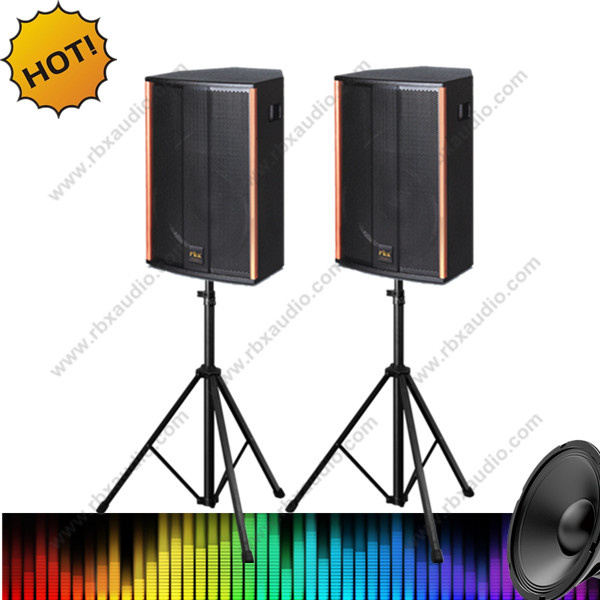

DS-1350 is a two-way full range loudspeaker designed specifically for high-end night clubs. To create a compact polygonal design, we apply several sheets of imported multilayer birch plywood. And, the surface is painted with high-quality durable polyester coatings.
DS-1350 is equipped with a 12" LF precise driver and a imported 1" HF precise compression driver. When you use it, you will feel a degree of relaxation, a booming, strong, full and clean bass, and full alto, a clean, pleasant, delicate and euphonic treble. It will restore your voice perfectly.
2. Application:
It is ideal for auditorium, conference room, music bar, DISCO bar and etc. And, as sub-woof loudspeaker system, it can be combined with our DS-1560, main loudspeaker system.
3. Technical data:
| Model | DS-1350 12 inch professional loudspeaker with amplifer |
| Drivers | LF: 1×15"voice-coil: 3" |
| HF: 1×2"voice-coil: 1.7" |
| Frequency(±3dB) | 48HZ-20KHZ(±3dB) |
| Dispersion(-6dB) | Hor:90° × Vert:60° |
| Sensitivity(1m/1W) | 98dB |
| Maximum SPL | 124dB Continuous/136dB Peak |
| Nominal Impedance | 8 Ohms |
| Input power | Rate: 350W/Peak: 1400W |
| Recommend AMP | 600W to 800W into 8 Ohms |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 605 × 360× 385mm (H × W × D) |
| Master carton | 625 × 440 × 465 (H × W × D) |
| Net Weight | 23Kg |
| Gross Weight | 26.5Kg |
4. Construction:
| Physical | Polygonal |
| Enclosure | Imported multilayer birch plywood |
| Grille | Die-casting steel net with circular hole, black sponge inside |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | M8 screw of installation holes (18 pcs) |
| Pole Mount | Bottom: Φ35mm support base |
5. Maintenance:
a. Please kindly operate itaccording to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. Please kindly keep it away from dust and the strong magnetic field.
c. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.
