| Prod Model: |

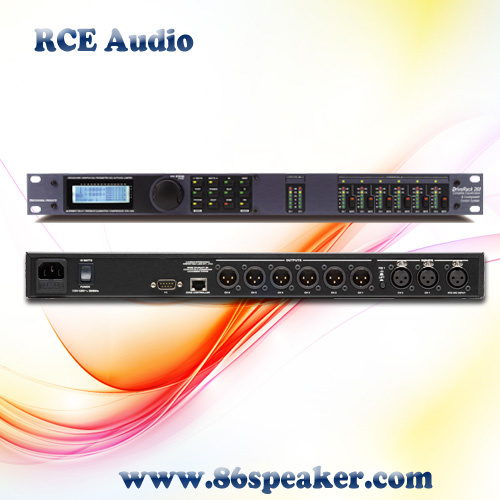

DriveRack 260 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
UL |
| Application: |
Stage,PRO Audio |
Product Description
The DriveRack series are a diverse group of processors that provide control of equalization and loudspeaker management. Used and appreciated in every kind of venue, from houses of worship to big-name world tours, the DriveRack series are the most popular loudspeaker management systems.
Features
Feedback Elimination
2.7 Seconds of Alignment and Zone Delay
RS-232 PC GUI control
Classic dbx Compression and Limiting
Graphic and Parametric EQ
Auto-EQ Function
Full Bandpass, Crossover, and Routing Configurations
Auto Gain Control
Pink Noise Generator and fulltime RTA
Setup Wizard with JBL speaker and Crown Power Amplifier Tunings
Security Lockout
Wall Panel Control Inputs
IEC, UL, and CSA Approvals
Specifications
Analog Inputs
Number of Inputs (2) Line inputs, (1) RTA Mic input
Input Connectors Female XLR (Line), XLR RTA (Mic)
Input Type Electronically balanced, RF filtered
Input Impedance >40 kΩ
Max. Input Level +34 dBu with input jumpers in +30 position
Input CMRR >45 dB
Mic EIN <-110 dBu, 22Hz-22kHz, 150 Ω
Phantom Power 15 VDC
Analog Outputs
Number of Outputs 6 Total
Output Connectors Male XLR
Output Type Electronically balanced, RF filtered
Output Impedance 120 Ω
Max. Output Level +22 dBu
A/D Performance
Type dBx Type IV conversion system
Dynamic Range Line (unweighted/weighted) >114 dB / >112 dB
Type IV Dynamic Range (unweighted/weighted) >119 dB / >117 dB
Sample Rate 48 kHz
D/A Performance
Dynamic Range (unweighted/weighted) 112 dB / 110 dB
System Performance
Dynamic Range (unweighted/weighted) >110 dB / >107 dB
THD+Noise @ 1 kHz 0.002% typ. @ +4 dBu, 0 dB input gain
Frequency Response (±0.5dB) 20 Hz20 kHz
Interchannel Crosstalk >110 dB, 120 dB typical
Crosstalk input to output >100 dB
Propagation Delay 0.6 msec
Operating Voltage 100-240 VAC, 50/60 Hz
Power Requirements 25 Watts
Physical
Weight 2.5 kg (5.5 lbs)
Dimensions (HxWxD) 4.45 x 48.3 x 14.6 cm (1.75" x 19" x 5.75")
Safety Certifications UL 6500, IEC 60065, E 60065, EN 55013
