Product Description

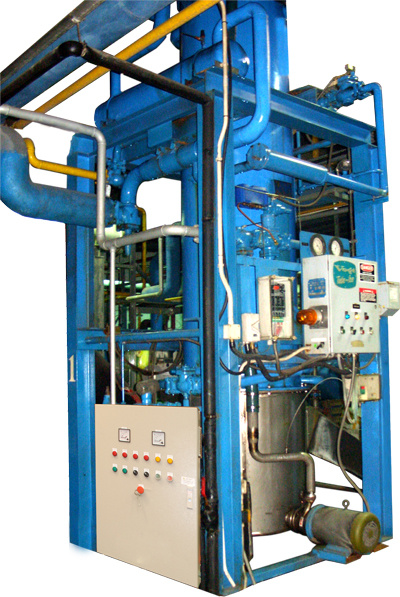

Tube ice machine FIT-250K Specification
Cooling mode: Water cooling
Capacity (kg/24Hrs. ): 25000kg
Size (L× W× H): 2400× 2200× 2000 (mm)
Operating weight: 2680kg
Power supply: 380V/3P/50Hz
Install power: 105kw
Refrigerant: R22/R404A
Ambient temperature: 35 celsius degree
Water inlet temperature: 20 celsius degree
Total running power: 85.3kw
Focusun is proud of inventing the first tube ice machine in the world. Over 80 years of manufacturing experience strengthens its advanced ice making technology.
Tube ice is a kind of hollow cylindrical ice with external diameter ø22,ø29,ø35mm and length 25~42mm. The hole diameter is usually ø5~10mm and it can be adjusted according to ice making time.
Features: Tube ice is thick and transparent with long storage period. It isn't likely to melt in a short time.
Application: Daily eating, keeping vegetable and seafood fresh, etc.
Tube Ice Machine Features:
Use hot Freon gas to make ice fall off fast with the whole process takes only 150~180 seconds.
After the ice is off, the water of low temperature is used for ice-making, saving energy consumption and increasing the volume of production of ice.
With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the evaporator spirally, so it improves the efficiency of heat transfer.
The use of stainless steel SUS304,aluminum alloy plate-type evaporator, accords with the health and safety requirements.
The use of air pressure control excludes the risk of rupture of the evaporator tube and the tube ice diameter can be adjusted according to customers' needs.
Half-full liquid: liquid level controller which manages liquid supply of refrigerant makes the system more stable.
Equipment working theory:
|
01:Upper water tank |
| 02:Water inlet |
| 03:Distributor |
| 04:Shell |
| 05:Inside heat exchange pipe |
| 06:Heat exchange |
| 07:Reducer |
| 08:Ice cutter |
| 09:Water outlet |
| 10:Ice water separation pan |
| 11:Waste outlet |
| 12:Ice duct |
| 13:Low water tank |
As shown, when the refrigeration system begins operating normally, the water in the tank below is transported from the water outlet to the water inlet of upper water tank by the water pump. After the water goes across the distributive pipe, it downwardly flows along the wall of the heat exchange tube. The water then begins a heat exchange with the refrigerant outside heat exchange pipe, which lowers the temperature. Some of the water is formed into tube ice, while the water which does not become ice returns to the low water tank. The water continues circulating so that the ice gets thick, and the hole of tube ice also becomes smaller and smaller.
After a period of time, water stops circulating and the refrigeration system changes into ice cutting mode. The ice cutting framework then begins to operate. The surface of the heat exchange pipe consists of refrigerant hot gas with high-pressure. The hot gas begins a heat exchange with the tube ice in the pipe wall. Hot gas makes contact between the tube ice and the wall of heat exchange, thawing the ice so that it looses adhesive force. The ice then drops into an ice cutting framework because of gravitational force and finally is cut into many pieces of tube ice.
Large capacity ice tube machine features a modular design which makes it easy to install, ship and operate. The whole unit consists of 3 parts:
Evaporator module: the evaporator and its accessories are installed on a steel frame which forms the evaporator module. When transporting, place the evaporator horizontally and stand it upright when installing.
Compressor module: compressor, condenser, reservoir, liquid receiver, oil seperator, and electric control box are installed on a steel frame to form the whole set.
Cooling tower module: cooling tower, water pump and water pipes.
Focusun Refrigeration is the most professional manufacturer in China, specialized in designing and manufacturing of high quality ice making machines, such as: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We have earned the position of dependable supplier among a vast global clientele due to consistency in quality of our product range and services offered to the clients.
As a well established manufacturer and exporter, we lay special attention to our manufacturing process and delivery of products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We take utmost care of quality at every stage of the manufacturing process. Our staff of highly qualified engineers combines the benefits of irreplaceable practical experience with the sophisticated accuracy of our own interactive graphics computer system enable us to provide high quality product, prompt deliveries, dependable service, and outstanding customer satisfaction.
Focusun is known across the country for our premium quality on the products we offer. We have a hi-tech production unit that uses the latest technology and the most modernized machinery. We have a strong and proficient workforce, comprising of technically skilled professionals and efficient workers. Our research and development wing is our asset that develops and incorporates innovative ideas and products.
Our products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine are globally known for their dimensional accuracy, high efficiency & durability and they are used in various fields such as aquatic food processing, supermarkets, healthcare centers, man-made skiing resort, mines, large-scale concrete construction, etc. The product model ranges from small-sized ice machines with a daily output of 230kgs to large-sized sets of ice making system up to 60tons in 24hours and 85% of our ice making machine's components are imported and all undergo rigorous monitoring and quality control system to ensure superb quality of our flake ice machine, cube ice machine, tube ice machine, and block ice machine.
We pride ourselves on quality, service and pricing, and believe that all three areas are equally important to ensure the long-term success of your overseas purchasing program. Our sustained relationship with customers serves as testimonial for our high quality products. The fusion of superior quality and reasonable prices make our products capable of influencing anyone in the whole world. Our reputation in the market is synonymous with high quality, updated technology and dedicated approach.
