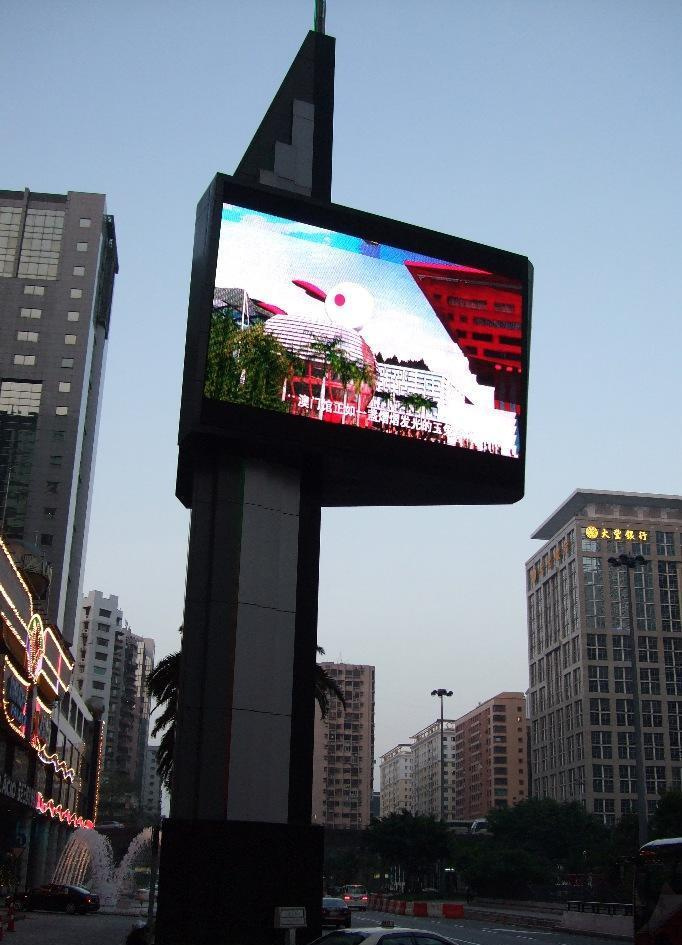

Double Sided Outdoor Advertising LED Display

Name: Double Sided Outdoor Advertising LED Display
Brand: ec-portal.com
SKU: 686091532
Availability: InStock
Rating: 4.9 (82 reviews)

Price:	US $ 500-800/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Send Inquiry

Showroom Product Company Profile

Prod Model:	P16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Brightess:	10000 Nits, Customized Brightness Is Availble
Driving IC:	Mbi 5020, Mbi 5024, Mbi5026 or Mbi5041, Mbi 5042
Refresh Rate:	>600 Hz
Control System:	Asynchronous or Synchronous
Warranty:	2 Years Warranty
Technical Support:	Life Long Technical Support
Training:	in House Factory Training or on Site Training
Display Type:	LED Video Display
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	1R, 1G, 1B
Pixel Pitch:	16mm
Display Function:	Video Display
Scanning Mode:	Static Scan
Certification:	FCC
Pixel Density:	3906
Average Power Consumption:	390

Product Description

outdoof full color led display Partner for Guangzhou Asian Games, Shanghai World Expo, Beijing Olympic Games, China-Asian Expo and Boao Asian Forum

P16 outdoor full-color high-contrast LED display
Item	Details	Parameters
Pixel	Physical	16mm
Pixel	Pixel Configuration	1R1G1B
Module	Module resolution	16*16 pixels
Module	Module Size	256*256mm
Cabinet	Physical resolution	64*64 pixels
	Cabinet Size	1024*1024mm HxW
	Physical density	4096 pixels/cabinet
	Module quantity	16pcs=4(h)*4(w)
	Material	steel
	Weight	55 kg Approx
	Power supply(5V60A) Quantity	4 pcs
	Average power consumption	410W
	Max power consumption	1220W
Electricity parameter	Brightness	9000 nits
	Brightness adjusted	100 grade by software or by Auto-optic induced
	Color processing	8 bits
	Display color	16 millions
	Color temperature(k)	7200k
	Physical density	3906 pixels/per square meter
	Whole display flatness	≤ 1.2mm Juncture
	Best view distance	9-65m
	Best viewing angle	H≥100° V≥50°
	Storage temperature	40 degree -5 degree
	Working temperature	20 degree -50 degree
	Driving Method	Constant driving current Scan: static
	Refresh frequency	up to 300Hz
	Frame rate	75Hz
	Humidity(RH)	10%-90%
	Protection grade	Front IP65, Rear IP54 if not specified
	Working voltage	DC 5V
	Power supply	AC 110V ±10% / 220V ±10%
	Average power consumption	400W/M2
	Max power consumption	1200W/M2
	MTBF	8,000 hours
	Screen lifetime	100,000 hours
Control System	Control System	Linsn
	Signal Interface	DVI
	Communication distance	CAT5cable:≤100m Fiber Cable:≥500m
	Signal transfer mode	dot to dot synchronized with computer monitor
