| Prod Model: |
FL167 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Material: |
Copper |
| Board Layer: |
2 |
| Board Thickness: |
1.0 Mm |
| Copper Thickness: |
2 Oz |
| Min. Hole Size: |
0.20 Mm |
| Min Line Width&Space: |
0.15 Mm |
| Solder Mask: |
White/Black |
| Silksreen: |
Black/ White |
| Surface Fnishing: |
HASL-Lf |
| Lead Time: |
5-6 Working Days |
| Type: |
Rigid Circuit Board |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
Copper |
Product Description

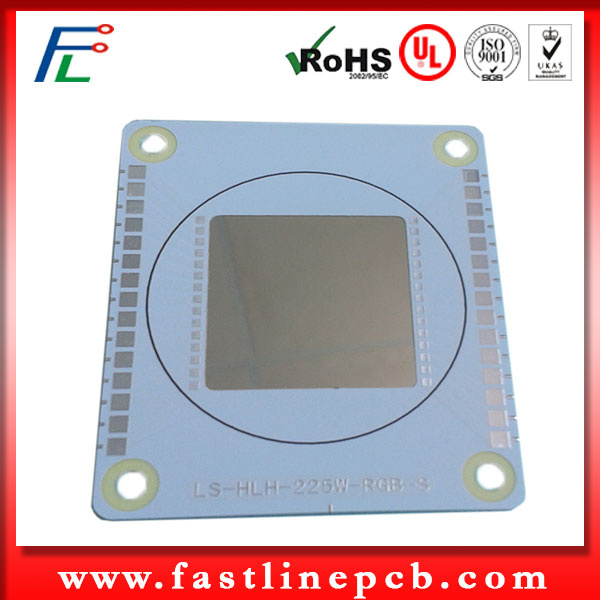

Double sided MCPCB board for induction cooker
Metal core circuit boards
Metal core or IMS (Insulated Metallic Substrate) circuit boards are an excellent alternative to standard circuit boards, if the circuit boards are exposed to large mechanical loads, or a high level of dimensional stability is required, or high temperatures must be conducted away from power components or LED's.
The thermal conductivity assisted by the aluminium cores in the circuit boards makes higher packing densities, longer operating times, and improved security against failure possible, such as for LED technology and for high power transistors.
Additional application areas for this technology include: high current application, power LED's, SMDand power circuit boards. The high thermal conductivity permits a quick and effective transfer of the heat produced.
Pls see our pcb catalog below:
1. single side pcb
2. double side pcb
3. Multilayer pcb(3-26+ layers)
4. Flexible PCB(FPC)
5. Rigid-flex PCB board
6. Aluminum PCB board for LED(1-4 layers)
7. MCPCB board (1-4 layers)
8.Ceramic PCB(1-4 layers)
9. HDI pcb board
10. High frequency PCB
11. PCB assembly
Metal core PCB Manufacturing Capability
| Fastline Metal Core PCB Capability |
| Materials | Aluminum ,copper |
| Maximum Lager Count | 4 Layers |
| Maximum Panel Size | 17" x 23" (432 x 584 mm2) |
| Min. Board Thickness | 1.0mm Al, 4 mils (0.1 mm) FR4 |
| Copper Clad (inner) | 1/2 oz, 1 oz, 2 oz, 3 oz, 4oz |
| Copper Clad (outer) | 1/2 oz, 1 oz, 2 oz, 3 oz, 4 oz |
| Surface Finishes | ENTEK 106A, Immersion Gold, HAL, immersion silver |
| Solder Mask | LPI: Taiyo PSR 4000, Tamura DS2200, Probimer 77MA |
| Minimum Trace (width) | 12.0 mils (0.30 mm) |
| Minimum Trace (spacing) | 12.0 mils (0.30 mm) |
| Minimum PAD-TO-PAD TOL. | ± 3 mils (± 0.76 mm) |
| Hole Size Tolerance (NPTH) | ± 2 mils (± 0.05 mm) |
| Hole Size Tolerance (PTH) | ± 3 mils (± 0.076 mm) |
| Minimum Hole Size | 20 mils (0.50 mm) |
| Outline Dimensional Tol. | < ± 10 mils (0.25 mm) |
| Ionic Cleanliness | < 5 mg/in2 of NaCl (0.775 mg/cm2) |
| Impedance Control | ± 10% (Differential) |
| Warpage | < 1% |
PCB advantages:
1 R&D team support
2 UL, RoHS,ISO9001,SGS
3.IPC class2
4.Advanced production line and promtly delivery.
5,Honest Credibility in China.
6.Professional and abundant experience in PCB.
7.Competitive price and good quality.
8. Excellent after-sales service.
Trade Terms:
7 We have no MOQ.
8 Payment Term:T/T or Western Union.
9 Delivery ways:UPS,FEDEX,DHL etc,door to door service by sea or air etc.
Application:
1. Consumer electronics.
2. Industrial control.
3. medical instrument.
4. fire service implement etc.
Our Service:
1.Reply your enquiry in 2 working hours.
2.Experienced staffs answer all your questions in fluent English.
3.Customized design is avaliable OEM&ODM are welcomed.
4. Exclusive and unique solution can be provide to our customer by our well-trained and professional engineers and staffs.
5. Special discount and protection of sales area provided to our distributor.
PCB prototype Lead time:
| PCB Prototype Lead Time: |
| item | General time | Quick Turn |
| 1-2 | 4 days | 1 days |
| 4-6 Layers | 6 days | 2 days |
| 8-10 Layers | 8 days | 3 days |
| 12-16 Layers | 12 days | 4days |
| 18-20 Layers | 14 days | 5 days |
| 22-26 Layers | 16 days | 6 days |
Note: Base on all data received by us and must be complete and problem free, Lead time is ready to ship time.
|
FAQ
Q1: What's your minimum order quantity?
A1: Our MOQ is not the same based on different items. Small orders are also welcome.
Q2: what file we should offer?
A2: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list.
Q3: What any other information should be offered except for file?
A3:Following specifications are needed for quotation:
a) Base material
b) Board thickness:
c) Copper thickness
d) Surface treatment:
e) color of solder mask and silkscreen
f) Quantity
Q4: I am very satisfied after I read your information, how can I start to purchase my order?
A6: Please click the "send" at the bottom of this page or contact our sales on Trade Manage online!
How to Contact Us?
Would like to know more about the product? Send us inquiry, click "Send" now!
More information about PCB, pls contact with us!
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
