| Prod Model: |
OM32X96RD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
32x96 Per Side |
| Pitch: |
12mm |
| Display Size: |
384mm H X 1152mm L X 2 Sides |
| Display Color: |
Single Color or Bi-Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
12mm |
| Display Function: |
Image & Text Display |
| Pixel Density: |
6944 dot / m² |
| Pixel Configuration: |
2r or 2r1g |
| Certification: |
CE & RoHS |
Product Description

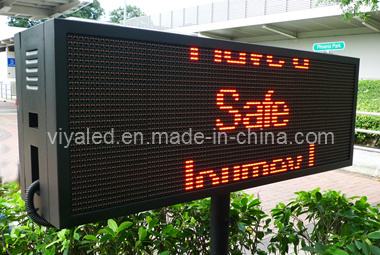

Double side outdoor LED message display,
Can display same or different message at two side.
Features
1. Display English or European characters as well as graphic symbols
2. Many kinds of action moving methods
3. Built-in real time clock. Customized time/date format are also available
4. Low power consumption
5. Interface of the managing software can be in multiple languages
6. Fixing methods: Desk, wall or ceiling
7. Display Real Temperature (optional)
8. Segmented display capability to allow separate control of sections of the display(for two lines or multi-lines message LED sign)
Applications:
Advertising, Retail Businesses, Waiting Areas, Hospital, Bank, Shopping mall, Government office, Corporate Communications, Entertainment Area, etc
Specifications:
1. Pitch size: 7.62mm, 10mm, 12mm, 16mm, 20mm, 25mm, 31.25mm, etc.
2. Display Color: Single Red, Yellow, Green, Blue, White color,
RG tricolor(red, green, yellow), RB tricolor(red, blue, pink), RGB full color
3. One line, Two lines, Three lines, Four lines or more lines message display.
4. Life span: >50, 000 hours, Low power consumption
5. Communication by PC-USB port, RS232 COM port, Infra-red remote control, TCP/IP network, RF wireless control, GPRS, GSM or others.
6. Viewing Angle: 140° For indoor models, 110° For window brightness
7. Working Temperature: -30° C ~ +70° C
8. Working Humidity: 0% - 95% RH
9. Power Input: 100-240VAC, 60Hz/50Hz
10. Built-in real time clock
11. Housing Material: Black Powder Coated Aluminum
12. IP65 waterproof cabinet for outdoor use
|
Outdoor series LED moving message sign |
|
Resolution |
Pixel Pitch |
Display size |
Max. height
of Character |
Display Color |
|
16x128 |
10mm |
160mm H x 1280mm L |
6.3” |
Single color,
Tricolor,
RGB full color |
|
16x160 |
10mm |
160mm H x 1600mm L |
6.3” |
|
32x96 |
10mm |
320mm H x 960mm L |
12.6" |
|
32x160 |
10mm |
320mm H x 1600mm L |
12.6" |
|
32x192 |
10mm |
320mm H x 1920mm L |
12.6" |
|
48x128 |
10mm |
480mm H x 1280mm L |
18.9” |
|
48x160 |
10mm |
480mm H x 1600mm L |
18.9” |
|
16x96 |
16mm |
256mm H x 1536mm L |
10.1” |
Single color,
Tricolor,
RGB full color |
|
16x128 |
16mm |
256mm H x 2048mm L |
10.1” |
|
16x160 |
16mm |
256mm H x 2560mm L |
10.1” |
|
24x80 |
16mm |
384mm H x 1280mm L |
15.1” |
|
24x96 |
16mm |
384mm H x 1536mm L |
15.1” |
|
24x128 |
16mm |
384mm H x 2048mm L |
15.1” |
|
32x80 |
16mm |
512mm H x 1280mm L |
20.2” |
|
32x96 |
16mm |
512mm H x 1536mm L |
20.2” |
|
32x128 |
16mm |
512mm H x 2048mm L |
20.2” |
|
16x64 |
20mm |
320mm H x 1280mm L |
12.6" |
Single color,
Tricolor,
RGB full color |
|
16x80 |
20mm |
320mm H x 1600mm L |
12.6" |
|
16x96 |
20mm |
320mm H x 1920mm L |
12.6" |
|
24x64 |
20mm |
480mm H x 1280mm L |
18.9” |
|
24x80 |
20mm |
480mm H x 1600mm L |
18.9” |
|
24x96 |
20mm |
480mm H x 1920mm L |
18.9” |
|
32x80 |
20mm |
640mm H x 1600mm L |
25.2” |
|
32x96 |
20mm |
640mm H x 1920mm L |
25.2” |
|
16x64 |
25mm |
400mm H x 1600mm L |
|
Single color,
Tricolor,
RGB full color |
|
16x80 |
25mm |
400mm H x 2000mm L |
|
|
16x96 |
25mm |
400mm H x 2400mm L |
|
|
24x80 |
25mm |
600mm H x 2000mm L |
|
|
24x96 |
25mm |
600mm H x 2400mm L |
|
Above only sample popular model for reference, other size or request
please contact us via email, we’ ll offer best price and service for you.
|
