| Prod Model: |
TC-P07A0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Double-Line Ptt Walkie Talkie Handheld Radio Earph |
| Resistance: |
90ohm±15% at 1000Hz |
| Sound Pressure Level: |
90dB±3dB |
| Rated Power: |
100MW |
| Max Power: |
200MW |
| Microphone Type: |
Electret Microphone |
| Sensitivity: |
-40dB±3dB at 1000Hz |
| Microphone Resistance: |
2.2kohm |
| Single-Line Ptt: |
Support |
| Style: |
In-ear |
| Line-Control: |
Line-Control |
| Jack Type: |
3.5mm |
| Microphone: |
With Microphone |
| Type: |
Electret Earphone |
| Function: |
Multimedia |
| Use: |
Household |
| Earpad Size: |
One Size |
| Color: |
Black |
| Wire Material: |
PU |
Product Description

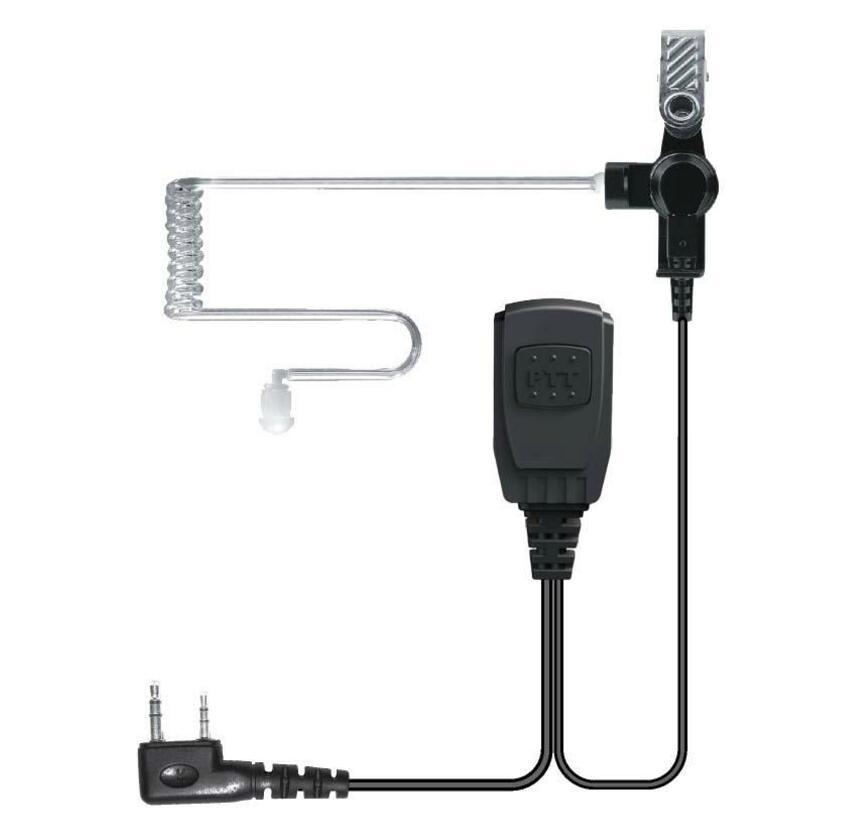

Double-line PTT is adopted marvelous design,big PTT button on the front, easy to push.
High quality acoustic tube convey voice make you have better sense of hearing, and comfortable wearing.
Choosing suitable silicon eartip, offer us sound which is not interference around environment.Designing with external out PTT jack, you can choose according to the request. PU cable compliance with ROHS contain high intensity Kevlar is very firm and endurable.
Waterproof Level: IP54
Speaker
| OD | Φ16mm |
| Resistance | 90Ohm±15% at 1000Hz |
| Sound Pressure Level | 90dB±3dB at 1000Hz |
| Rated Power | 100mW |
| Max Power | 200mW |
Microphone
| Type | Electret microphone |
| Sensitivity | -40dB±3dB at 1000Hz(0dB=1V/Pa) |
| Resistance | 2.2KOhm |
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
