| Prod Model: |
AST-7045 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
7 Inches |
| Function: |
Car Radio Receiver |
| System: |
Android O.S.4.2.2 |
| Built In: |
Radio |
| Usage: |
Car |
| Video Output: |
VGA |
| Audio Output: |
L/R Channel |
| Power Voltage: |
DC12V |
| Type: |
DVD |
| Color: |
Black |
Product Description
1. 7" bigger digital screen you never seen in the market
2.1080P video display
3. Wifi function support
4. TPMC function available (Optional)
5. Parking assistance included (Support original parking system)
6. Air conditioner/Climate display support
7. Car door open indication function

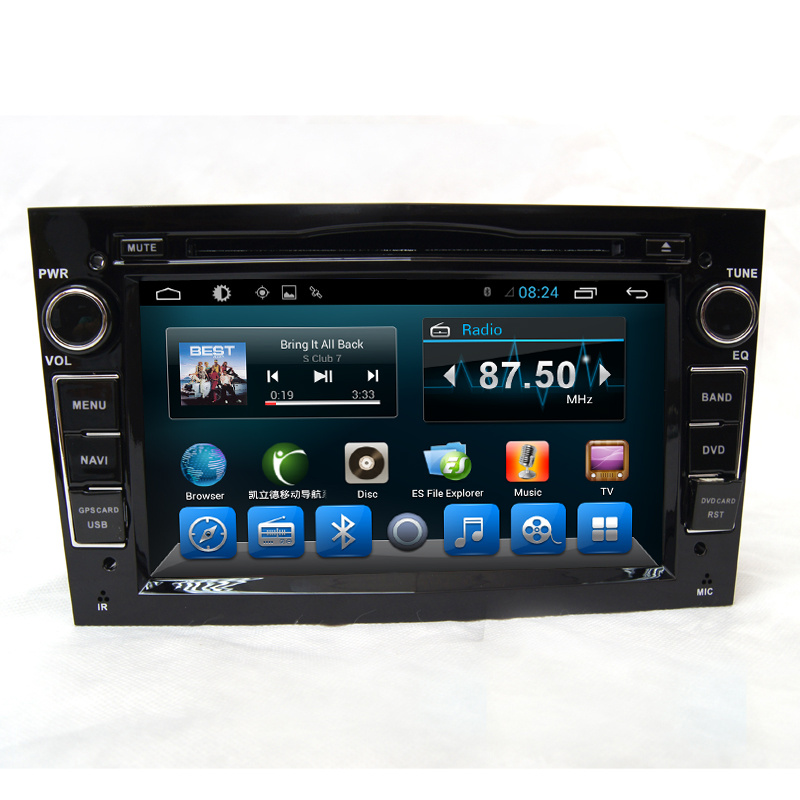

For Opel Astra H/Corsa/Zafira/Vectra/Meriva
7 digital 800*480 screen resolution
DVD info displays on the small dashboard LCD (MFD)
Built-in GPS system
Built-in Bluetooth
USB port
SD card slots (Two SD card slots, one for GPS, one for Multimedia)
iPod control
RDS receiver function
Built-in TV tuner
Built-in DVB-T tuner (Optional)
Built-in ISDB-T tuner (Optional)
TPMC function available (Optional)
Steering wheel control function (With CANBUS (MQB))
Auto rear viewing function
CPU
CorteX A9 Dual Core 1GHz Mstar786
RAM
DDR3 1Gb
ROM
8G EMMC
SD
support 32G SD card
VIDEO
RMVB,MKV,MOV,WMV,AVI,MPG,TS with 1080P H.264 format etc.
AUDIO
MP3,WMA,WAV,OGG,FLAC
GPS MODULE
Support GPS and Glonass
OS
Android 4.2.2
Temperature
-20°C TO +70°C
Navigation software
IGO, navitel, Sygic etc
DVD decoder
SUNPLUS 8202TQ
Screen
800*480 / 1024*600 capacitive touch screen.
FM IC
NXP 6624 with RDS
WIFI
Build-in or External
3G GPRS
External (optional)3G dongle
TV
Build-in Analog or Digital TV( DVB-T, ISDB-T,DVB-T2)
Bluetooth
A2DP and Bluetooth OBD
Steering Wheel control
Support ( Some cars need CAN BUS )
Rear view video
Support Automative turn on when reversing
Power on
16S~20S, high speed turn on system
Power off
Rearly shut off the OS, <10mA
work volt
DC12V
Operate volt range
10.8V ~16V
Max current
10A
Features
GPS, DVD, FM/AM, iPod, Bluetooth, RDS, Steering wheel control,
SD/USB multimedia palyback, Rear Camera Input, Aux In,
Anti shock
Mechanical anti-shock & Electronic anti-shock
Display mode
16:9
Touch Screen
Capacitive touch screen
Screen Resolution
800*480
OSD Language
English,Russian, Hebrew, Arabic,German,Spanish,
French,Thai,Italian,etc.
Radio Tuner
FM/AM
Station Preset Qty.
18
Support RDS
Yes
Radio response bandwidth
AM: 522~1620 KHz, FM: 87.5~108 MHz
Video Output System
NTSC,PAL
Signal-to-Noise Ratio
85dB
Media Type
CD,HDCD,MP3,WMA,VCD,DVD,DVD-R/RW,
DVD+R/RW,CD-R/RW,JPEG,etc.
Amplifier output power /
channel qty
45W*4
EQ mode
Rock, Hip Hop, Dance, Latin, Rave, Urban, Acoustic;
Audio Line out channel
5.1
Bluetooth Version
V2.0,support A2DP(Bluetooth Stereo Music),
can play stereo music through Bluetooth
Microphone
Built-in, External is optional
Reversing Input mode
Screen automatic display rear camera video when reversing
whether power off or on.
Rear Camera
Is optional for choose
SD/USB/iPod Playback mode
Automatic paly multimedia when the device connected unit
Video Input
2 Channel, One for camera, one for aux in
Video Output
2 Channel
Audio Input
1 Channel for aux in
Audio Output
4.1 Channel
Astral Electronics Technology Co., Ltd is established based on 8 years experience in car electronics.
We are proffesional supplier of car electronics. Our products include in-car Wince and Android DVD player, GPS navigation, rearseat entertainment, safe parking sensor, camera, DVR etc.
Having professional engneers and good products quality contorl, we are able to provide special design according to customer requirement. With combined industry knowledge and experience, ASTRAL is bringing quality products to our customers. We have worked with our valued customers for more than four years as reliable supplier and parter. We welcome you to contact us for a success cooperation.
Company Service:
As an experienced supplier and partner, our product range mainly includes universal Car DVD GPS Navigation System, special OE-fit car in-dash DVD GPS Bluetooth systems, Car Android PC, Satnavi, headrest DVD player and safely rearview parking systems.
Our Advantage Service:
1, High quality products. All our products are produced with high quality materials and assembled with skilled workers.
2, Wide range of models for choose. More than 200 different models are available, two system(wince and android) for choose
3, Keep developing new products. We keep release new products to satisfy our customers.
4, Customized products are available, we can supply OEM service to make our customers's brand.
5, Exclusive agent is acceptable. In some market or countries, our products are on hot selling, our agent want to have the exclusivity agreement with us. We also support customer with exhibition in their market.
After sales service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our products sold to everywhere of the global.
ASTRAL supply 12months warrenty to the products supplied, we have supply technicial support to customers and also spare parts to assist the warrenty. Most important is our products defective rate is less than 1%.
Transportation service:
DHL, UPS, FedEx, EMS, Air cargo shipping and Sea cargo shipping are all available. We have good agent who could supply us with good price and fast save delivery to customers.
Company History:
2010 Year: ASTRAL Electronics Technology Co., Ltd Established
2011 Year: Headrest DVD Monitor, Flip Down DVD Player, Car DVD Multimedia GPS Navigation booming in market
2012 Year: Attended the HKTDC exhibition in October
2013 Year: With more than 200 different Car OE-FIT DVD GPS Navigation on sale, WINCE System
2014 Year: Full Line Android Car DVD GPS Navigation Multimedia System Published to Market
2015 Year: 10.1inch screen deckless Sat Nav are on hot selling
Output exceed 15, 000PCS/month
