| Prod Model: |
KUDO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Kudo |
| System Type: |
3-Way 2X12" Passive |
| Size: |
2X12" |
| Components: |
Lf: 2X12" ; Hf: 2X 1.75"(Neodymium); Mf:4X5.5" |
| Power: |
4500W/3000W/1500W |
| Frequency Response: |
35 Hz - 20 kHz |
| Cabinet Material: |
Birch Plywood |
| Finish: |
Environmental Water-Based Finish |
| Dimensions (H X W X D): |
876 X 356/276 X 689 Mm |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Application: |
Professional Performance |
| Certification: |
CCC |
| THD: |
<0.005% |
| Speaker Material: |
Birch Plywood |
| Monitor: |
Non |
Product Description
Products Description

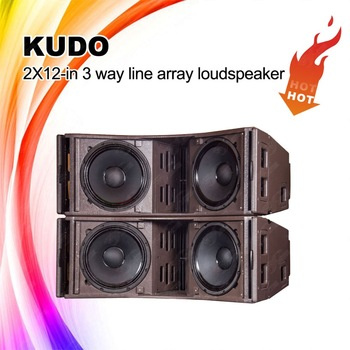

Kudo 3 Way Line Array System, amazing power outdoor line array
3-way line array
Dual 12" line array system
High power line array speaker
Fanastic nice sound line array
Outdoor line array system
The system shall consist of a 3-way enclosure quad-amplified design using the Wavefront Sculpture Technology (WST) and driven and protected by a dedicated amplified controller. Loudspeaker enclosures shall be installed vertically or horizontally.
K-LOUVER variable directivity with 50° /110° Symmetric, 80° Asymmetric
Arrayable as a constant curvature horizontal line source
Variable line source, splay angle up to 10° For increased vertical coverage
25 Hz mode for exceptional LF performance, reduced subwoofer needs
LA-RAK /LA8 package with advanced system drive and protection
What we assure:
1. Quality is first
2. Service is best
3. Delivery on time
KUDO 2x12 inch LINE ARRAY specification |
|
| Usable bandwidth | 35 Hz - 20 kHz |
| Nominal Directivity (-10dB) | Horizontal: 50° or 110° symmetric - 25°/55° or 55°/25° asymmetric |
| Maximum SPL | 140 dB |
| RMS handling capacity(LF) | 2 x 450 W |
| RMS handling capacity(MF) | 4 x 150 W |
| RMS handling capacity(HF) | 2 x 75 W |
| Components(LF) | 2 x 12inch , mounted in a bass-reflex enclosure |
| Components(MF) | 4 x 5.5inch high efficiency |
| Components(HF) | 2 x 1.75inch diaphramg compression neodymium drivers |
| Material | Birch Plywood |
| Front: | polyester powder-coated steel grill |
| Rigging | integrated flying hardware and handles |
| Size | 876 x 356/276 x 689 mm |
| Weight | 87 kg |
