| Prod Model: |
CLW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
10ton-30ton |
| Driving Type: |
LHD and Rhd |
| Cabin: |
with Sleeper or Without Sleeper |
| Refrigerator Truck Door: |
Rear Door and Side Door |
| Tank Material: |
Colour Steel Plate, Stainless Steel, Aluminium Alloy |
| Vloume: |
20cbm |
| Working Temperature: |
-15 Degree |
| Drive Mode: |
4*2 |
| Certification: |
CE |
| Payload: |
20T |
| Emission Standard: |
Euro 3 |
| Transmission Type: |
Manual |
| Engine Type: |
4 Stroke |
| Horsepower: |
＜150hp |
| Fuel: |
Diesel |
| Condition: |
New |
Product Description

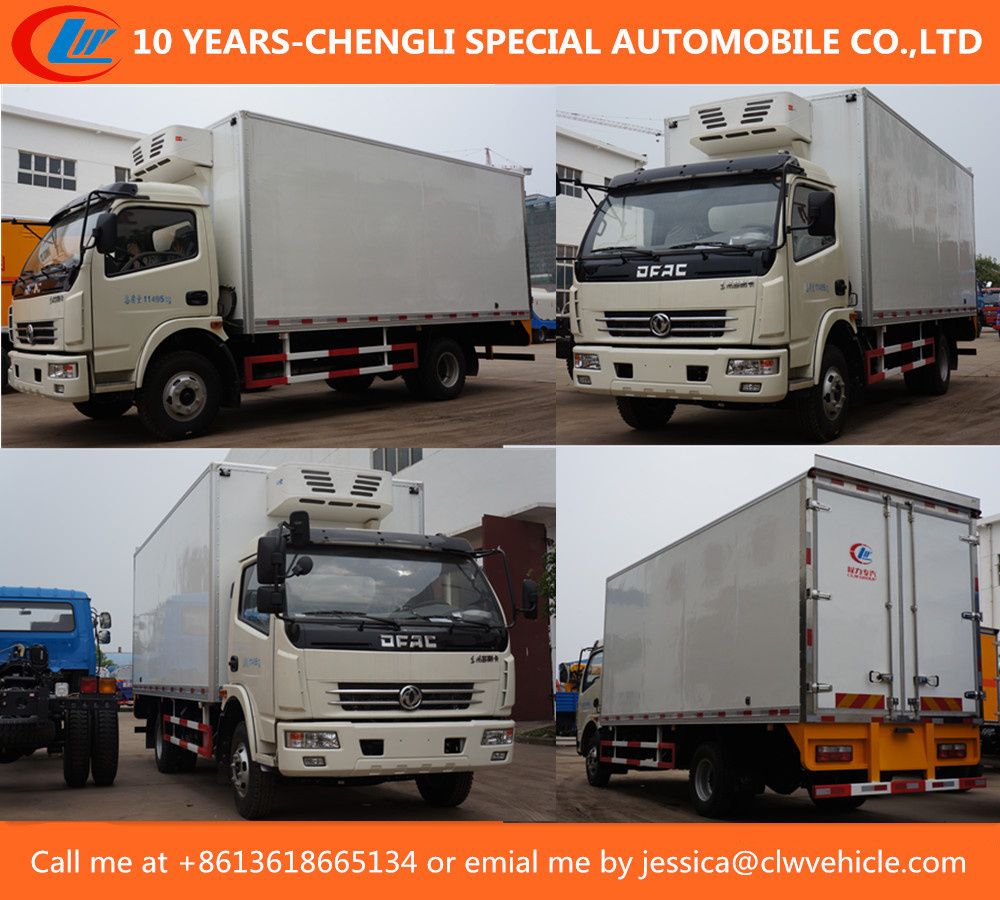

DONGFENG 4X2 20CBM Refrigerator Truck
1.Van surface is flat and glabrous.
2.polyurethane foam middle, good temperature preservation.
3.long use-life.
Techinical data as follows,
| SPECIFICATION |
| Parameters name | Unit | Parameters size |
| Chassis model | / | EQ1070TJ9AD3 |
| Vehicle size | mm | 6695*2285*3250 |
| Total mass | kg | 7490 |
| Curb weight | kg | 4395 |
| Tanker size | mm | 5120*2050*2100 |
| Steel spring No | pcs | 11/9+7 |
| Front/Rear overhang | mm | 1180/2015 |
| Front/Rear wheel tread | mm | 1835/1640 |
| Appoach/Deaparture angle | ° | 20/13 |
| Front/Rear load | kg | 3090/4400 |
| Max speed | km/h | 95 |
| Wheelbase | mm | 3800 |
| Numbers of tire | pcs | 6 pcs+1 spare tire |
| Tire | / | 8.25R16 |
| Emmission standard | / | Euro III |
| Cabin | / | 3 passenger |
| Engine Model | / | CY4102-C3C |
| Engine type | / | 4-stroke direct injection,4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Displacement | L | 3.856 |
| Engine power | hp | 120 |
| Refrigerator | / | Hanxue ( competitive price& good quality) |
| Lowest temperature | ºC | -15 |
| Material | / | Inside and outside:Colour steel plate,stainless steel,aluminium alloy and FPR is optional. 8cm thickness polyurethane foam middle |
| Application | / | The truck is normally used to transport frozen foods (ice truck), diary (milk truck)&juice, fruits and vegetables (fresh carrier), |
Chengli Special Autobile Co, , Ltd specilized in All kinds of Tank truck, Dump truck, Crane truck, mixer truck, bulk cement truck as well as many kinds of semi trailers. Our yearly production ability is 20000 units, our water truck ranks No. 1 in China market.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
If you are interested, please feel free to contact me.
Miss.Jessica Long
Address:Chengli Automobile Industry Park,Suizhou City,Hubei Province,P.R.China.
Tel/Fax:+86 2783796298
Mob:86 13618665134
www.clwvehicle.com
Chengli Special Automobile Co., Ltd is a company with a tradition of over 10 years in the engineering industry and has aggregated a wide experience in this field. The main strategic program is focused on the production of trailers, tankers, dump trucks and other special vehicles. The company currently employs 1100 people and enjoys strong growth. Its turnover in 2007 is USD66.5 million and in 2013 it reached USD213.7 million. Chengli now ranks top 3 in special vehicle in China. The company' S total area is 1230 acres and in 2013 its annual production ability will expand to 20, 000 units.
Chengli is customer orientated and manages its business processes with the dynamics, efficiency and reliability to reach high customer satisfaction ratings. The combination of modern technology and human oriental assures a strong and competitive position in both domestic and international market.
Chengli has set up 127 service centers throughout China to provide ready-service for its customers. Complete coverage of sales service greatly reduces the distance between Chengli and its customers. Anytime customers want, Chengli will be there with them.
Working with reliable local partners, Chengli now is a key player in North Africa (Algeria, Libya, and Egypt), East Africa (Tanzania, Kenya, Uganda and Malawi)West Africa (Nigeria, Ghana, and Senegal), Middle East (U. A. E, Saudi Arabia and Qatar) and South East Asia., and Senegal), Middle East (U. A. E, Saudi Arabia and Qatar) and South East Asia.
Our company is located in Suizhou City, Hubei Province, center of China, the special-purpose vehicle city of China. We welcome friends from all over the world to visit us!
