| Prod Model: |
CLW525LCC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Vehicle Name: |
Freezer Truck , Refregirator Truck |
| Volume Of Van: |
35cbm/40cbm/45cbm |
| Refrigerator Brand: |
USA Thermo King/Korean Kaili/Hanya |
| Driving Type: |
LHD or Rhd |
| Door: |
Rear Door, Side Door |
| Working Degree: |
-25 Degree to -10 Degree |
| Van Material: |
FRP(Fiber Reinforced Plastics) |
| Color: |
Optional |
| Insulation Material: |
Polyurethane/Fiber Glass |
| Thickness Of Van: |
8 Cbm |
| Emission Standard: |
Euro 2 |
| Horsepower: |
＜150hp |
| Condition: |
New |
| Transmission Type: |
Manual |
| Certification: |
CE |
| Fuel: |
Diesel |
| Payload: |
20T |
| Engine Type: |
4 Stroke |
Product Description
East or West, Chengli Special Automobile Co., Ltd is the Best.
Our advantage:
Competitive Price and Excellent Quality,
Export covering More than 50 countries and regions
Annual production value topped 1500, 000, 000 RMB (240, 000, 000 US dollars) per year
Chengli Special Automobile Co., Ltd, as the "Alibaba Group" in the special vehicle circle, has developed into the biggest professional special vehicle manufacturer of central China starting from scratch since 2004.
Refrigerator wagons/cars/trucks produced by Chengli Special Automobile Co., Ltd
Cover SINOTRUK, DFAC, ISUZU, FAW, FOTON, JAC, JMC brand and range in size and equipment, which can meet different need, such as vegetable transportation, meat transportation, seafood transportation and vaccine transportation.
Our main products:
1. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Freezer truck/ Refrigerated truck/Cooling truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Any question, please contact us.

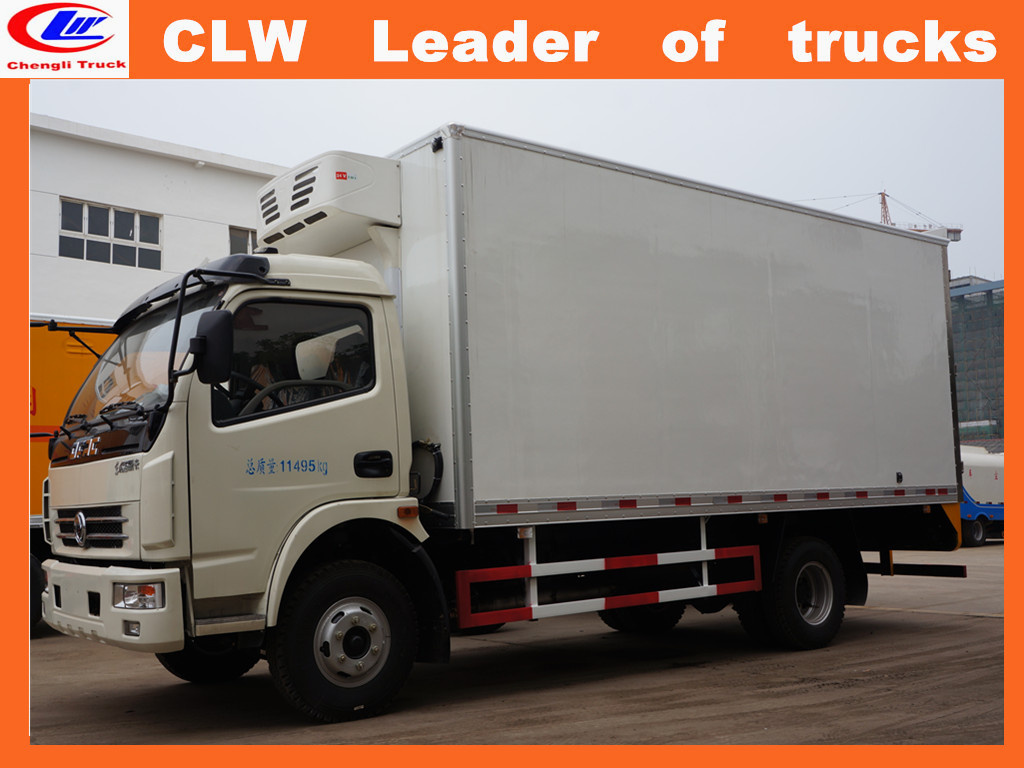

| DONGFENG 4*2 120HP Refrigerated Truck |
| Truck | Drive mode | 4×2 |
| Chassis | EQ5061XLC40D4 |
| Engine | Model | EQ5061XLC40D4 |
| Type | 4cylinder in line, turbocharging, electrical control common-rail engine |
| Max. power(Kw/) | 88 |
| Bore /Stroke(mm) | 102×118 |
| Displacement(ml) | 3856 |
| Type of fuel | Diesel |
| Compression ratio | 16.5:1 |
| Dimensions | Overall dimension (mm) | 9790×2370×2760 |
| Wheel base (mm) | 5600 |
| Front/Rear tread(mm) | 1880/1800 |
| App./Dep. angel (°) | 20/9 |
| Performance | Max. speed(Km/h) | 110 |
| Mass | Payload (Kg) | 7650 |
| Curb weight(Kg) | 4850 |
| G.V.W (Kg) | 12500 |
| Special functions | Specifications | Overall dimension of body (mm) | 7500×2300×2200 |
| Refrigerating capacity | 4689 |
| Refrigerant | 404A |
| Min. temperature(°C) | -15 |
| Inside and outside of van's material | FRP(Fiber Reinforced Plastics) |
| Middle of van's material | Polyurethane |
| Insulation layer | Under 120kPa high pressure,overall foam |
| Rear doorpost | stainless steel |
| ventilation opening | yes |
| Special configration | adopt to Korea's HT-500 non-independent unit |
Chengli Special Automobile Co., Ltd is a company with a tradition of over 10 years in the engineering industry and has aggregated a wide experience in this field. The main strategic program is focused on the production of trailers, tankers, dump trucks and other special vehicles. The company currently employs 1100 people and enjoys strong growth. Its turnover in 2007 is USD66.5 million and in 2013 it reached USD213.7 million. Chengli now ranks top 3 in special vehicle in China. The company' S total area is 1230 acres and in 2013 its annual production ability will expand to 20, 000 units.
Chengli is customer orientated and manages its business processes with the dynamics, efficiency and reliability to reach high customer satisfaction ratings. The combination of modern technology and human oriental assures a strong and competitive position in both domestic and international market.
Chengli has set up 127 service centers throughout China to provide ready-service for its customers. Complete coverage of sales service greatly reduces the distance between Chengli and its customers. Anytime customers want, Chengli will be there with them.
Working with reliable local partners, Chengli now is a key player in North Africa (Algeria, Libya, and Egypt), East Africa (Tanzania, Kenya, Uganda and Malawi)West Africa (Nigeria, Ghana, and Senegal), Middle East (U. A. E, Saudi Arabia and Qatar) and South East Asia., and Senegal), Middle East (U. A. E, Saudi Arabia and Qatar) and South East Asia.
Our company is located in Suizhou City, Hubei Province, center of China, the special-purpose vehicle city of China. We welcome friends from all over the world to visit us!
