| Prod Model: |
X7 series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Type: |
Air Source Heat Pump |
| Installation: |
Freestanding |
| Housing Material: |
SUS 304 Stainless Steel |
| Heat Exchanger: |
SUS 316 Stainless Steel |
| Brand: |
Theodoor |
| Model: |
RS-3.6fad Series |
| Working Temp: |
-10-43 Degrees |
| Compressor: |
Panasonic |
| Refrigerant: |
R410A/R134A |
| Auto Defrost: |
Yes |
| Heat Temperature: |
50-70??C |
| Work Environment: |
Common Heat Pump |
| Heat Source: |
Air-source |
| Application: |
Beauty Salons |
| Certification: |
RoHS |
Product Description

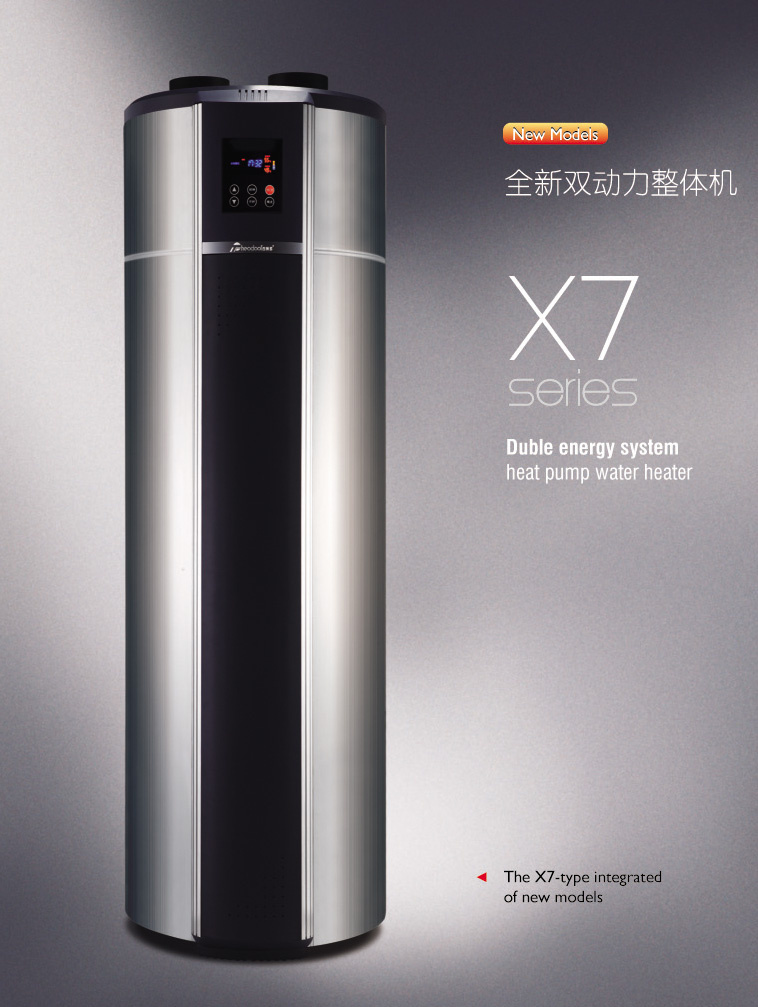

Air to water heat pump -Hybrid water heater:
1. Double energy system by air source technology and smart electric water integrated technology.
2. All in one design, easy installation, save space.
3. Save energy, saving more energy by 70% comparing with ordinary water heater.
4. Protecting Environment. There isn't any burning gas from the water heater. The refrigerant won't contaminate the ozonosphere. So it benefits the society.
5. Supply water anytime, and not be affected by geographical and weather changing.
6. Intelligent control, the water temperature can be adjusted as needed and controlled by micro-computer automatically.
| Model | RS-3.6FA/260L | RS-3.6FA/300L | RS-3.6FAD/150L | RS-3.6FAD/190L | RS-3.6FAD/260L | RS-3.6FAD/300L | RS-4.2FAD/260L | RS-4.2FAD/300L |
| Rated Input Power | 0.8 KW | 0.8 KW | 0.8 KW | 0.8 KW | 0.8 KW | 0.8 KW | 1.2 KW | 1.2 KW |
| Rated Heating Capacity | 2.8 KW | 2.8 KW | 2.8 KW | 2.8 KW | 2.8 KW | 2.8 KW | 3.8 KW | 3.8 KW |
| Rated Current | 3.6A | 3.6A | 3.6A | 3.6A | 3.6A | 3.6A | 5.5A | 5.5A |
| Power Supply | 220V~240V / 50Hz | 220V~240V / 50Hz | 220V~240V / 50Hz |
| Outlet water temperature | 55 degrees | 55 degrees | 55 degrees |
| Water output capacity | 77L/H | 77L/H | 77L/H | 77L/H | 77L/H | 77L/H | 90L/H | 90L/H |
| Capacity of Water Tank | 260L | 300L | 150L | 190L | 260L | 300L | 260L | 300L |
| Electric Heater Power(EHP) | \ | 2KW | 2KW |
| Auxiliary heater ampere | \ | 9.1A | 9.1A |
| Electricity Water capacity | \ | 41L/H | 41L/H |
| Refrigerant | R417A / R410A / R134a |
| Compressor | Panasonic |
| Condenser | Copper coil /Double skin copper coil /Stainless steel coil |
| Evaporator | High efficiency finned heat exchanger |
| Solar Coil | Available for 190L , 260L and 300L |
| Size(mm) | 650X1760 | 650X1890 | 650X1350 | 650X1485 | 650X1760 | 650X1890 | 650X1760 | 650X1890 |
| Net Weight (Kg) | 98 | 110 | 72 | 83 | 98 | 110 | 98 | 110 |
| Noise (dB) | 46 | 46 | 46 | 46 | 46 | 46 | 50 | 50 |
| Water connection | DN20 | DN20 | DN20 | DN20 | DN20 | DN20 | DN20 | DN20 |
