| Prod Model: |
CFT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Filter Media: |
Pes/Nylon66/PTFE/PP/Gf/PVDF |
| Support & Housing: |
PP |
| Sealing Technology: |
Thermal Bonding, No Adhesives |
| Inlet/Outlet: |
Tri-Clamp |
| Filtration Area, Ft2: |
≥ 2.2 |
| Diameter: |
82.4mm |
| Pore Size, Um: |
0.1,0.22,0.45,0.8,1.0,3.0, 5, 10 |
| Maximum Differential Pressure: |
Forward: 3.5 Bar @ 23 Degree Centigrade |
| Sterilization: |
3 Autoclave Cycles of 30 Min |
| Good Manufacturing Practices: |
Manufactured in an Anow |
| Material: |
Chemical Fiber |
| Application: |
Chemical and Microelectronic |
| Type: |
Capsule Filter |
| Filter Connector: |
Tri-Clamp |
| Filtration Grade: |
Microfiltration |
| Activated Carbon Filter Type: |
Pleated Filter |
Product Description

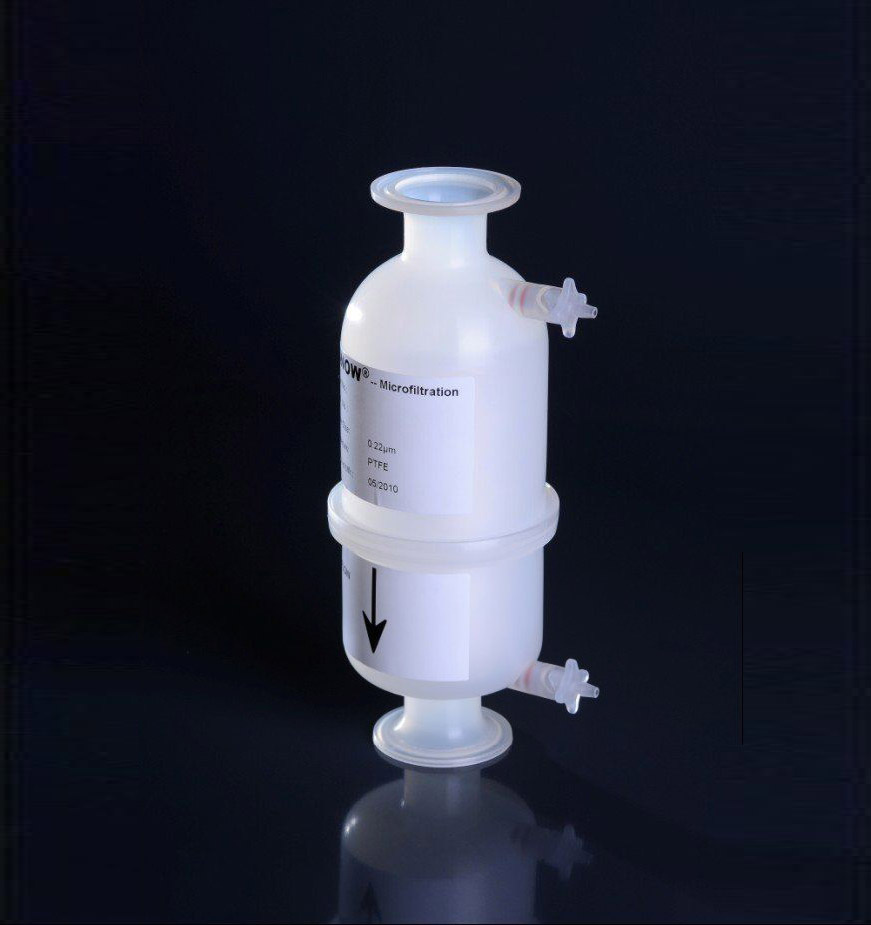

Disposable Tri-Clamp Micro Capsule Filter
Features
Eco-friendly and cost-effective
Smart, disposable and safe
Low hold-up volume
Good resistance to pressure
Specification
| Materials of Construction |
| Filter Media | PES/Nylon66/PTFE/PP/GF/PVDF |
| Support & Housing | PP |
| Sealing technology | Thermal Bonding, No Adhesives |
| Filtration Area, ft2 |
| ≥ 2.2 |
| Pore Size, μm |
| Please refer to Ordering Information. |
| Maximum Differential Pressure |
| Forward: 3.5 bar @ 23ºC and 3.0 bar @ 60ºC for liquid; 3.0 bar @ 23ºC and 2.5 bar @ 60ºC for gas & air. |
| Sterilization |
| 3 autoclave cycles of 30 min at 123 ºC ; steam-in-place sterilization not recommendable. |
| Good Manufacturing Practices |
| Manufactured in an ANOW facility which adheres to Good Manufacturing Practices. |
For more information on specification, please refer to cartridges with the same membrane.
Application
Filtration for beverage, wine, beer and other drinks
Filtration for water
Filtration for gas and air
Hangzhou Anow Microfiltration Co., Ltd. is a well-known filtration company in Asia who focus on N66, N6, MCE, PES, PVDF, PTFE membrane development, with pore size ranging from 0.03 μ M to 10 μ M, and design and production of various pleated filter cartridges and capsule filters. ANOW provides professional assistance to liquid and gas & air filtration, separation and purification solutions for customers around the word in biopharmaceutical, medical, food & beverage, microelectronic, chemistry, water treatment and laboratory applications.
ANOW is a state-class high-tech enterprise, who has successfully gotten the certificates of ISO9001 and ISO13485, and obtained the SFDA authorized production certificate of the 3rd medical plastic products, among which disposable microporous membrane and filters for medial use have been honored the registration certificate of medical devices by SFDA. Besides, we have been also honored as Direct Unit of the Membrane Industry Association of China and Direct Company of medical plastic product branch association of CAMDI.
Our plant located in Xindeng Industrial Zone, Fuyang, Hangzhou, covers a production workshop area of 6000 m² , with 3000 m² Area meeting the GMP requirements for manufacturing of medical devices, 100000-class 600 m² Cleaning room and 2400 m² Cleaning room. We have more than twenty lines for the production of microporous membranes and pleated filter cartridges, advanced inspection tools and equipments, as well as professional R&D Centre and Validation Centre. In addition, we have adequate and recognized technical experts such as Professor Meile Gong, for developing new products and providing technical service, which can satisfy our customers both in quantity and quality.
ANOW has been making great efforts to improve the quality management system during the process of obtaining the certificates of production and registration. We particularly attach great importance to R&D to make consistent progress in order to provide customers with excellent products and services.
Our massion is "make\ing the filtration better".
