| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa |
| Brand Name: |
Xn |
| Model Number: |
Xn-Cxn |
| Filter Media: |
Cotton |
| Porosity: |
5 Micro |
| External Frame: |
Paper Box or Aluminum Alloy Frame |
| Structure: |
Portable |
| Usage: |
Hospital/Medical/Industy/Engineering/Housing |
| Purifying Technology: |
Pre Filter |
| Type: |
Panel Filter |
Product Description
Feature
1. Small resistance
2. Large airflow
3. Cheap price
4. Thin thickness

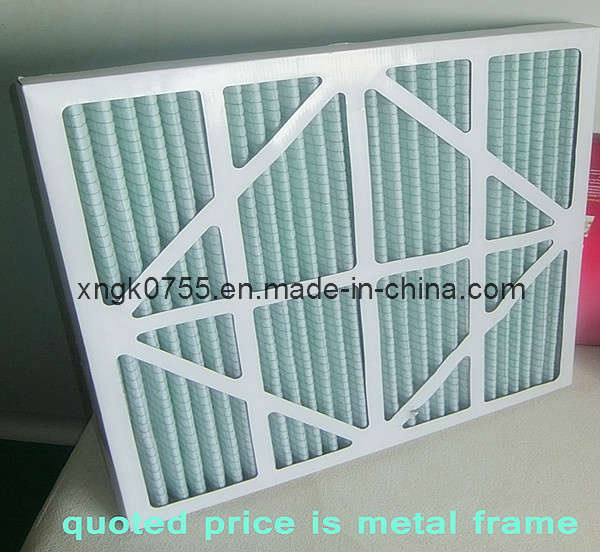

Fold-down coarse efficiency air filter
1. Lower resistance. Larger air volume
2. Applicable to the primary filtration of air conditioning system
|
model |
Outside Dimensions
(mm) |
Rated air flow
(m3/h) |
Initial resistance
(Pa) |
Efficiency(class) |
Filter media |
|
XN-CXZ-8J |
295× 295× 46mm
12″ × 12″ × 2″ |
800m 3 /h |
25Pa |
80~95%
(arrestance)
|
G3
G4 |
(Green, blue, white etc)
Synthetic fiber |
|
XN-CXZ-13J |
495× 295× 46mm
20″ × 12″ × 2″ |
1300m 3 /h |
|
XN-CXZ-22J |
495× 495× 46mm
20″ × 20″ × 2″ |
2200m 3 /h |
|
XN-CXZ-16J |
595× 295× 46mm
24″ × 12″ × 2″ |
1600m 3 /h |
|
XN-CXZ-27J |
595× 495× 46mm
24″ × 20″ × 2″ |
2700m 3 /h |
|
XN-CXZ-32J |
595× 595× 46mm
24″ × 24″ × 2″ |
3200m 3 /h |
Shenzhen Xiangnan High-Tech Purify Machine Co., Ltd., is one of the earliest professional enterprises engaged in the design and construction of clean engineering of central air conditioners and the research and production of air filtration and purification equipment in South China Region, integrating R&D, design, production, sale and service. The company provides customers with high-quality clean technology service and purification equipment with stable quality and reasonable price. Thanks to our stable product quality and considerate after-sales service, we have won the trust of many high-tech enterprises.
Our business department is composed of engineering division and purification equipment business division. The engineering division absorbs excellent technicians in the industry, in charge of businesses such as central air-conditioning engineering, clean air-conditioning engineering, energy-saving renovation engineering, air-duct cleaning engineering and so on; And the purification equipment business division has domestic advanced automatic production equipment for efficient air filters without partition and two production lines for efficient air filters with partition. The air filters are produced in accordance with three standards, namely GB/T 14295-2008, GB/T 13554-2008 and GB/T 6105-2008 issued by General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China (AQSIQ) and Standardization Administration of China (SAC) on November 4, 2008. Its products include primary air filters, MID-efficient air filters, sub-efficient air filters, efficient air filters, super-high efficiency air filters, heat-resistant or humidity-resistant efficient air filters, air showers, transfer windows, FFU air filtration units, clean benches, efficient delivery outlets and so on. In addition, the company also sells instruments and equipment special for clean workshops and dust-free coating production lines at home and abroad.
Business Strategy: To win the trust of customers by reasonable price and high-quality products.
