| Prod Model: |
SML 3503C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Content: |
Three Numbers |
| External Size: |
50.8*30.5 |
| Display Technology: |
STN |
| Usage: |
Monitor LCM |
| Type: |
LCD Glass |
| Viewing Angle: |
6 O'clock |
Product Description

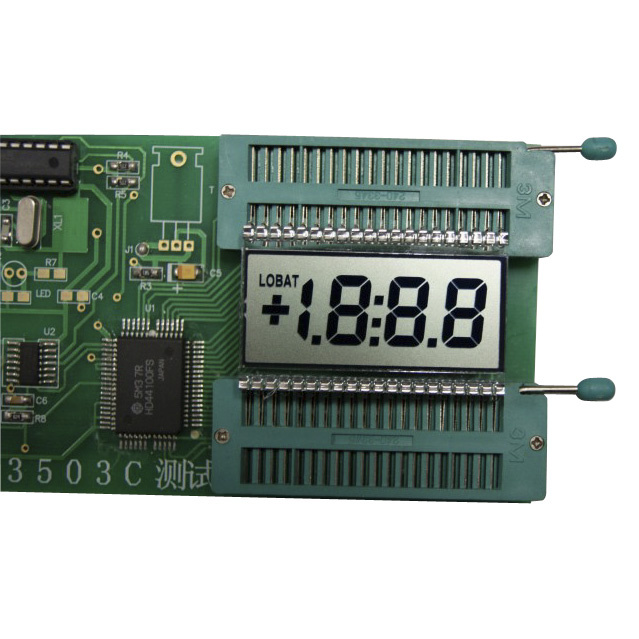

Display three numbers ICL7106 LCD(LCD 3503C)
Main technical data:
Operation voltage: 9V
View angle: 6: 00
Display pattern: Reflective (anode display)
Character high: 12.7mm
Operation temperature: 0~+50° C
Storage temperature: -20~+60° C
Environment relative humidity: RH<85%
Display capacity: 3 and a half number +1 decimal digits
Input Capacity: 0200mV (or 02000mV)
Welcome customers to sample custom production.
Factory direct sales LCD display in variety display color and size.
We can also design and manufacture the LCD panel of TN, STN,
FSTN, color STN and some other special types, as well as the LCD
Module of COB, COF, TAB and COG.
Changsha Sunman Electronics Co., Ltd was established in 1995, specializes in the Design, Manufacture and Sale of LCD(Liquid Crystal Display), LCM(Liquid Crystal Display Module). It is a company approved as high-tech enterprise by Hunan Science and Technology Bureau and a star company in Changsha High and New Technology Industrial Development Zone. It is also one of the first ten members as Hunan university students start-up enterprise century activity in high-tech development zone, launched by Changsha High and New Technology Industrial Development Zone and Hunan university. There are a large number of self-developed standard LCD and LCM available in our company. Customers can use them directly. Also, we can customize LCD modules according to customer's request. For example, re-design the display content, the size of the PCB and the MCU solution of measure, control and display.
