Prod Model: |
LG-1000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
1260*770*2136 |
Cooling Type: |
Fan Cooling |
Gas Type: |
R134A |
Temperature: |
0-10 Degrees |
Climate Type: |
N, St, T |
Qty In One 40' Container: |
27 PCS |
Type: |
Display Cooler |
Door Type: |
Swing Door |
Defrost Type: |
Auto Defrost |
Power Source: |
Electricity |
Temperature Type: |
Single-temperature |
Certification: |
SASO |

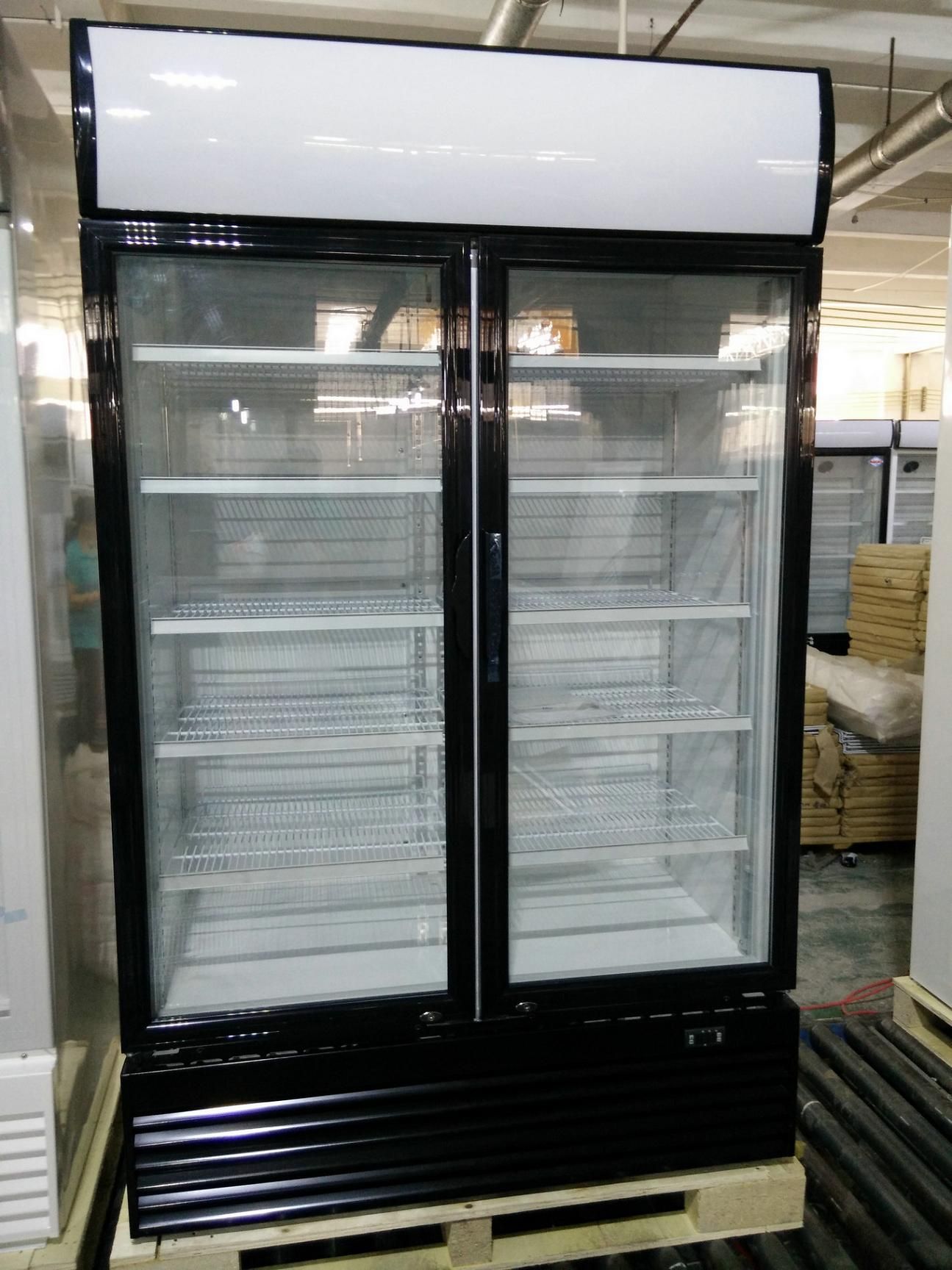

Product Description
Product features:
-Fan cooling system, auto-defrost
-1000 liter
-Famous brand compressor, copper pipe
-CFC free, low power consumption
- bottom condenser with fan motor
-38 or 43 degrees abmient temp. Suitable
-With different door frame color for option
-Large light canopy for advertisement
-2 Inner lights for bright showing effect
-Large-scalre storage space
-Double layer door glass
-4 wheels for easy moving
-Tempered glass door
MODEL |
LG-400F |
LG-600F |
LG-800BF |
LG-800BFS |
LG-1000BF |
LG-1000S |
Net (lt) |
398 |
588 |
782 |
800 |
983 |
983 |
Cooling system |
Fan cooling |
Fan cooling |
Fan cooling |
Fan cooling |
Fan cooling |
Fan cooling |
Auto-Defrost |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Control system |
Electronic |
Electronic |
Electronic |
Electronic |
Electronic |
Electronic |
Temperature digital screen |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
External Dimension WxDxH (mm) |
900x630x1856 |
900x725x2036 |
1000x730x2036 |
1000x645x2036 |
1200x730x2036 |
1200x645x1948 |
Dimensions with packing,carton WxDxH |
955x675x1956 |
955x770x2136 |
1060x770x2136 |
1060x785x2136 |
1260*770*2136 |
1255*770*2136 |
Weight net /Weight gross (kg) |
129/145 |
140/154 |
146/164 |
146/164 |
177/199 |
177/199 |
20'GP/ 40' GP/ 40' HQ Container |
20/41/41 |
18/36/36 |
15/33/33 |
15/33/33 |
13/27/27 |
13/27/27 |
Glass Door type |
hinge door |
hinge door |
hinge door |
Sliding door |
hinge door |
Sliding door |
Door frame, door handle material |
black /Grey pvc/aluminum for option |
black /Grey pvc/aluminum for option |
black /Grey pvc/aluminum for option |
black /Grey pvc |
black /Grey pvc/aluminum for option |
black /Grey pvc |
Glass type, (low-e coated/tempered)* |
tempered |
tempered |
tempered |
tempered |
tempered |
tempered |
Door auto closing |
For option |
For option |
For option |
For option |
For option |
For option |
foaming agent(insulation) |
cyclopentane |
cyclopentane |
cyclopentane |
cyclopentane |
cyclopentane |
cyclopentane |
Dimensions (mm) |
50(average) |
50(average) |
50(average) |
50(average) |
50(average) |
50(average) |
Adjustable shelves (pcs) |
8 |
8 |
8 |
8 |
8 |
8 |
Wheels |
4 |
4 |
4 |
4 |
4 |
4 |
Locking Feet |
2 |
2 |
2 |
2 |
2 |
2 |
Canopy light |
Yes /20W |
Yes /20W |
Yes /20W |
Yes /30W |
Yes /30W |
Yes /30W |
Internal light vert./hor.* |
Vertical*2/20W+20W |
Vertical*2/30W+30W |
Vertical*2/30W+30W |
Vertical*2/30W+30W |
Vertical*2/30W+30W |
Vertical*2/30W+30W |
Voltage/frequency |
220~240V/50HZ |
220~240V/50HZ |
220~240V/50HZ |
220~240V/50HZ |
220~240V/50HZ |
220~240V/50HZ |
Power consumption (w) |
460 |
460 |
561 |
650 |
650 |
650 |
Amp. Consumption (A) |
3.3 |
3.3 |
4.08 |
4.08 |
4.08 |
4.08 |
Energy consumption (kWh/24h) |
3.52 |
5.1 |
6.47 |
7.84 |
8.84 |
9.84 |
Climate Class According to EN441-4 |
Class 3 ~ 4 |
Class 3 ~ 4 |
Class 3 ~ 4 |
Class 3 ~ 4 |
Class 3 ~ 4 |
Class 3 ~ 4 |
Cabinet Tem. 0 C |
0~10 |
0~10 |
0~10 |
0~10 |
0~10 |
0~10 |
Max. Ambient Temp. 0 C |
38 |
38 |
38 |
38 |
38 |
38 |
Refrigerant (CFC-free) gr |
R134a /220g |
R134a /250g |
R134a /360g |
R134a /370g |
R134a /480g |
R134a /480g |
Outer casing, galvanized; pre-painted |
Pre-paintedcold-roll steel sheets |
Pre-paintedcold-roll steel sheets |
Pre-paintedcold-roll steel sheets |
Pre-paintedcold-roll steel sheets |
Pre-paintedcold-roll steel sheets |
Pre-paintedcold-roll steel sheets |
Inner Cabinet |
pre-painted aluminium plate |
pre-painted aluminium plate |
pre-painted aluminium plate |
pre-painted aluminium plate |
pre-painted aluminium plate |
pre-painted aluminium plate |
Condenser |
Copper fins |
Copper fins |
Bundy tubing |
Bundy tubing |
Bundy tubing |
Bundy tubing |
Condenser fan motor |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Evaporator |
Copper fins |
Copper fins |
Copper fins |
Copper fins |
Copper fins |
Copper fins |
Evaporator fan |
High speed |
High speed |
High speed |
High speed |
High speed |
High speed |
C ertification |
CE,ROHS |
CE,ROHS |
CE,ROHS,SASO,MEPS |
CE,ROHS,SASO,MEPS |
CE,ROHS,SASO,GS,MEPS |
CE,ROHS,SASO,GS |
Founded in 2003,Guangzhou Boaosi Appliance Co., Ltd. was registered in Guangzhou, which has 20 years in experience in producing cooling equipment.
From 2003, the whole year selling is 50, 000 PCS and the yearly saleroom is $7, 150, 000. But till now, the Yearly Selling is more than 300, 000 PCS and the yearly saleroom is about $35, 000, 000 as the new factory (beside the old one) has built up from Seb. 2007.
So far, we have a full range of products, such as refrigerators, chest freezers, back bar chillers and showcase party coolers. In 2007, our production capacity amounted to over 500, 000 sets. Covering about 60 thousand square meters, our company has advanced auto-equipment. Boaosi owned RMB100 million fixed assets with about 800 workers. For overseas markets, great innovation has happened recently as well. To strengthen exporting capabilities, we invested a lot to build a completely new workshop and office building in Sep. 2007. Furthermore, our management system is totally in accordance with international standards. Besides, a range of new refrigerators and freezers which are especially designed for European countries will come out afterwards. Our business principle is quite clear. In domestic market, we devote ourselves to promoting our brand, and we are confident of obtaining success. For overseas markets, we pay rather great attention to quality control, technology development, and environmental protection based on the philosophy of OEM first. Quality control: 1) Qualify our own manufactured parts and components, such as plastic parts, metal parts, molding and tooling, and other related products. 2) Complying with standards requested by market like CCC, CE, CB, RoHS, GS and UL certification.
