| Prod Model: |
Km-280 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 8 Stereo Power: |
2* 800W |
| 4 Stereo Power: |
2* 1200W |
| 8 Bridged Mono: |
2400W |
| Frequency Response: |
20Hz-20kHz |
| Thd+N(Rated Power,4 /kHz)%: |
0.05% |
| Input Connectors: |
XLR |
| Output Connectors: |
Speakon&Touch-Proof Binding Posts |
| Power Requirement: |
220V-240V,50-60Hz |
| Conformation: |
Steel and Aluminum Chassis |
| Warrtary: |
One Year Free for Warrtary |
| Function: |
Pre-amplifier |
| Tube Type: |
Tube Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
4 |
| Used For: |
Professional |
| Conductive Mode: |
AB |
| Usage: |
Hi-Fi |
Product Description
1 Power supply design
Each equipment includes independent logic high rate of power supply, which can control electrical circuit to adjust power output and voltage from time to time, and to respond the request of signal and load, so it can get the best power match under the wide range of load, so to ensure the power amplifier will not be overheating.
2 Power output grade
Adopt the balance output circuit, the same as fully symmetrical Bridge Road: Compared with the normal single end of land output circuit, the same work voltage can generate the output power in 4 times, that is to say, in order to get the same output power, the work power voltage of power amplifier is much lower thannormal OCL model. The output power tube is with wide safety work area under the condition of low voltage, so it is with higher power and reliability compared with normal OCL output model. Most importantly, The distortion of it is much Lower and can output better tone quality.
3 Sign Voltage Range
There is a limited voltage device within each input channel. By checking the output sign and controlling the input sign, so the power amplifier output will not be at the state of clipping in long time, and can protect the speaker. It can automatically control the input sign when the power amplifier is overheat, so can reduce the heat and keep safety.
4 Perfect protection function
Power amplifier provides various protecting function, such as. Direct current protection, internal stoppage protection, input overload protection, filter of radio frequency distraction, output short circuit protection, mismatching load and high frequency overload protection, radiator and over temperature protection for radiator and transformer, over electricity protection. And the over temperature protection for output electricity is achieved by gradually lower the output signal. Only when the temperature keeps rising to the extremity, can it cut off the output electricity supply of this channel, so avoid the stop of play.
5 Heat dissipation system
There is an independent heat dissipation system for each channel, two groups of nonpolar speed adjusted Fan. The sealed air go through the radiator to strengthen the effect of heat dissipation, and at the same time, avoid the the dust and smog of stage to pollute the circuit board to ensure the equipment is in good working condition, and the temperature can get balance in some
Ranges.

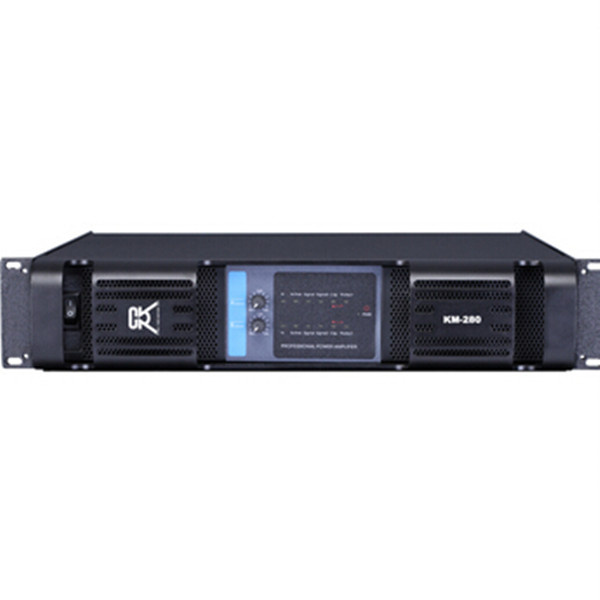

Model KM-280
8 Stereo Power 2× 800W
4 Stereo Power 2× 1200W
8 Bridged Mono 2400W
Input Impedance >20K/>10K
Frequency response 20Hz-20KHz
THD+N(Rated Power, 4Ω /KHz)%0.05%
Signal Noise Ration (dB)-105dB
Degree separation -60dB
Input Connectors XLR
Output Connectors Speakon&touch-proof binding posts
Power Requirement 220V-240V, 50-60Hz
Conformation Steel and aluminum chassis
Airframe Dimension 88× 483× 430mm
Net Weight 29kg
